ACiQ 3 Ton Ducted Air Handler Wall Mounted 24" Built-in 5KW Heat TXV R32

ACiQ 3 Ton Ducted Air Handler Wall Mounted 24" Built-in 5KW Heat TXV R32

By ACiQ | SKU: AQ-AWST36LU1305 | ID: 089490
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,044.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

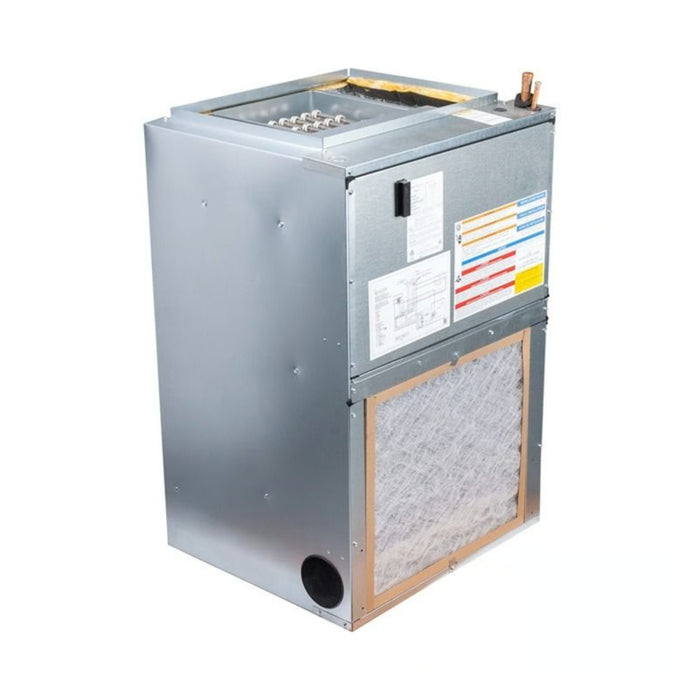

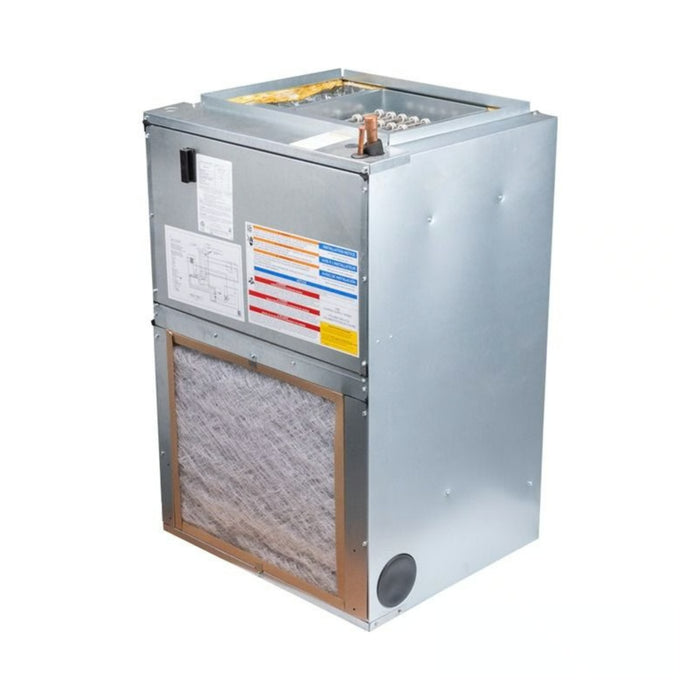

ACiQ 3 Ton Ducted Air Handler Wall Mounted 24" Built-in 5KW Heat TXV R32 AQ-AWST36LU1305

The ACiQ AQ-AWST36LU1305 wall-mounted air handler offers a space-saving and efficient solution for those needing climate control in areas with limited space. Ideal for multi-tenant buildings such as apartments, condos, and townhomes, this air handler can be easily stud-mounted to a wall or installed in tight, recessed spaces. Built with a fully insulated, galvanized-steel cabinet, the ACiQ AQ-AWST36LU1305 ensures both durability and optimal performance. Designed to offer enhanced comfort, energy efficiency, and a cost-effective solution, this air handler is an excellent choice for your heating and cooling needs.

Key Features:

  • Space-Saving Wall-Mount Design: Perfect for installations where floor-mounted units are not an option, making it ideal for multi-tenant buildings, apartments, and townhomes.

  • R32 Refrigerant: Compatible with R32 refrigerant, an environmentally friendly refrigerant with lower global warming potential compared to traditional options.

  • Fully Adjustable TXV: The ACiQ AQ-AWST36LU1305 comes with a fully adjustable TXV for both cooling-only and heat pump operation, offering versatility for various climates and applications.

  • Multi-Speed ECM Motor: Features a multi-speed ECM motor, allowing the air handler to adjust air volume based on heating and cooling needs for optimal efficiency.

  • Durable Heating Elements: Equipped with sequence-controlled, rust-resistant nickel chromium heating elements available in 3, 5, 8, and 10 kW options, ensuring reliable and efficient heating performance.

  • Factory-Installed Disconnect: The ACiQ AQ-AWST36LU1305 comes with a factory-installed pull-type disconnect for easy and safe serviceability.

  • Aluminum Tube Coils: Aluminum tube coils are included in all models, enhancing heat transfer and ensuring long-term reliability.

  • AHRI Certified & ETL Listed: ACiQ AQ-AWST36LU1305 is AHRI Certified and ETL Listed, meeting industry standards for quality and safety.

  • Efficient Drainage System: The thermoplastic drain pan with primary and secondary drain connections ensures effective drainage and prevents water damage.

  • Built-In Filter Rack: Includes a built-in filter rack (filter included), ensuring better air quality and enhanced system efficiency.

  • Flexible Return Air Options:

    • Large chassis (2.5- and 3-ton units): Front return only

    • Small chassis (1.5–2 tons): Front or bottom return

  • Wall-Mounting Bracket Included: The air handler comes with a wall-hanging bracket, allowing for easy and secure installation.

Specifications:

  • Refrigerant Type: R-32

  • Unit Height: 36 in

  • Unit Width: 24 in

  • Cooling Capacity Nominal: 36,000 BTU/H

  • Max Overcurrent Protection: 30/30 A

  • Power Phase: 1 Ph

  • Power Voltage: 208/230 V

  • Motor Speed Type: Multi-Speed ECM

  • Unit Weight: 109 lb

  • Tonnage: 3 Tons

  • Unit Depth: 21 in

The ACiQ AQ-AWST36LU1305 wall-mounted air handler is the ideal choice for those seeking an efficient, space-saving solution for their heating and cooling needs. With its environmentally friendly features, durable design, and flexible installation options, it ensures a reliable, cost-effective way to maintain a comfortable indoor environment.

ACiQ 3 Ton Ducted Air Handler Wall Mounted 24" Built-in 5KW Heat TXV R32 AQ-AWST36LU1305

Brand ACiQ SKU AQ-AWST36LU1305
Replaces AWST36LU1405 Weight (in lbs) 109
Brand/Manufacturer ACiQ Product Features Space-Saving
Additional Information 18" x 20" x 1" Large Chassis Filter Cooling BTU 36,000 BTU
Blower Motor Multi Speed Direct Drive Motor Maximum CFM 1360
Horsepower 1/2 HP Electric Heat 5 Kilowatts
Refrigerant R32 Liquid Line 3/8"
Suction Line 3/4" Electrical 208/230v Single Phase 60 Hz
Max Breaker Size 30/30 Amps Min. Breaker Size 26.4/29.8 Amps
Tonnage 3 Ton Fuel Type Electric
Height 36" Width 24"
Depth 21" Warranty 10 Years Parts with Online Registration

ACiQ 3 Ton Ducted Air Handler Wall Mounted 24" Built-in 5KW Heat TXV R32 AQ-AWST36LU1305

Warranty Type Parts
Standard Warranty NA
Registered Warranty 10-Year Parts

ACiQ 3 Ton Ducted Air Handler Wall Mounted 24" Built-in 5KW Heat TXV R32 AQ-AWST36LU1305

Installation Manual

Specification Sheets

Warranty Information
