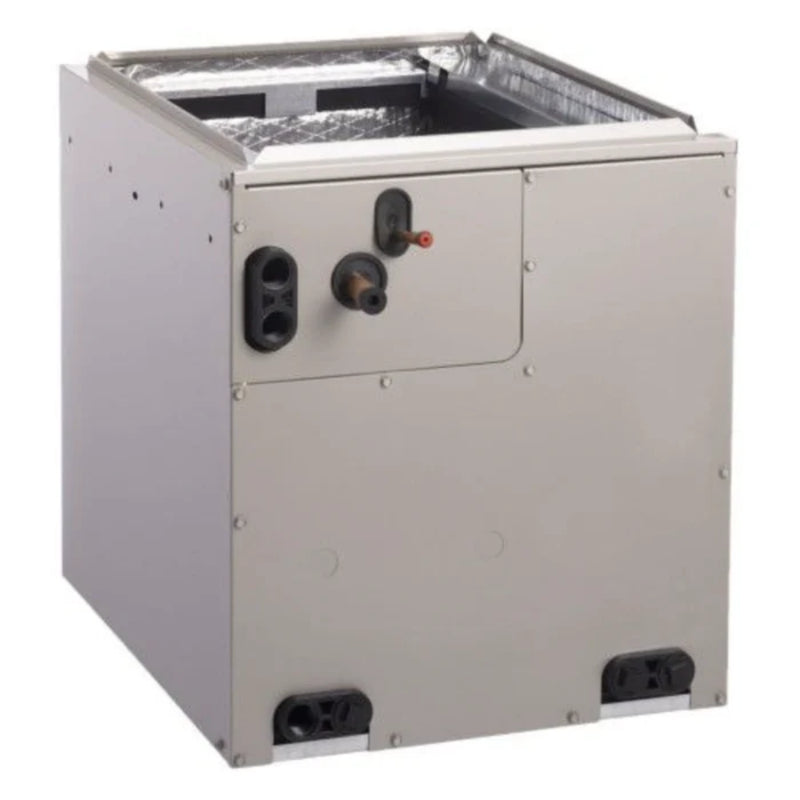

Name: ACiQ 2 Ton EVM5X Cased Evaporator Coil 17.5" Width Multi-Positional R454B
Brand: ACiQ
SKU: EVM5X24M17A
Price: 975.0 USD
Availability: InStock

December Sale Is Live! | Click Or Call 833-658-3387

ACiQ 2 Ton EVM5X Cased Evaporator Coil 17.5" Width Multi-Positional R454B

By ACiQ | Model: EVM5X24M17A | ID: 889168

✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$975.00 + SHIPPING

Quantity

Product Details

ACiQ 2 Ton EVM5X Cased Evaporator Coil 17.5" Width Multi-Positional EVM5X24M17A

The ACiQ EVM5X multi-positional evaporator coil with Power-V™ Technology delivers reliable comfort and long-lasting performance. Designed with a compact V-coil structure, it ensures efficient heat transfer, enhanced airflow, and easier installation for a variety of HVAC system setups. Built with durable all-aluminum construction and a fully insulated cabinet, this coil provides lasting corrosion resistance and energy-efficient operation.

Product Features

Compact V-Coil Design – Maximizes heat transfer while saving space
Thermostatic Expansion Valve (TXV) – Optimizes refrigerant flow for efficiency
All-Aluminum Construction – Corrosion-resistant for long coil life
Fully Insulated Cabinet – Reduces energy loss and improves efficiency
Durable Drain Pan – Made from PBT material for superior strength and resistance
Eco-Friendly Design – 100% recyclable aluminum coil supports sustainability
Flexible Installation – Multi-positional (upflow, downflow, and horizontal)
Service-Friendly Build – Improved design for easier technician access
10-Year Limited Parts Warranty – Available with registration

View More Coils

Specifications

ACiQ 2 Ton EVM5X Cased Evaporator Coil 17.5" Width Multi-Positional EVM5X24M17A

Brand	ACiQ	SKU	EVM5X24M17A
Replaces	EVM4X	Weight	41.3 lbs
Metering Device	TXV	Coil Type	Aluminum V-Coil
Configuration	Multi-Positional	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	5/8"
Tonnage	2 Ton	Style	V-Coil
Connection	Sweat	Certification	UL and c-UL Listed
Height	14 11/16"	Width	17 1/2"
Depth	20 5/8"	Warranty	10 Year Parts Limited Warranty with Registration

Warranty

ACiQ 2 Ton EVM5X Cased Evaporator Coil 17.5" Width Multi-Positional EVM5X24M17A

Warranty Type	Parts
Registered Warranty	10 Years

Documents

ACiQ 2 Ton EVM5X Cased Evaporator Coil 17.5" Width Multi-Positional EVM5X24M17A

EVM5X Specifications Sheet

EVM5X Installation Manual

ACiQ Evaporator Coil Warranty
