Name: Goodman 2.5 Ton Evaporator Coil Aluminum Cased Horizontal Cabinet with EEV
Brand: Goodman
SKU: CHPEA3026C3
Price: 790.0 USD
Availability: InStock

December Sale Is Live! | Click Or Call 833-658-3387

Goodman 2.5 Ton Evaporator Coil Aluminum Cased Horizontal Cabinet with EEV

By Goodman | Model: CHPEA3026C3 | ID: 101400

✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$790.00 + SHIPPING

Quantity

Product Details

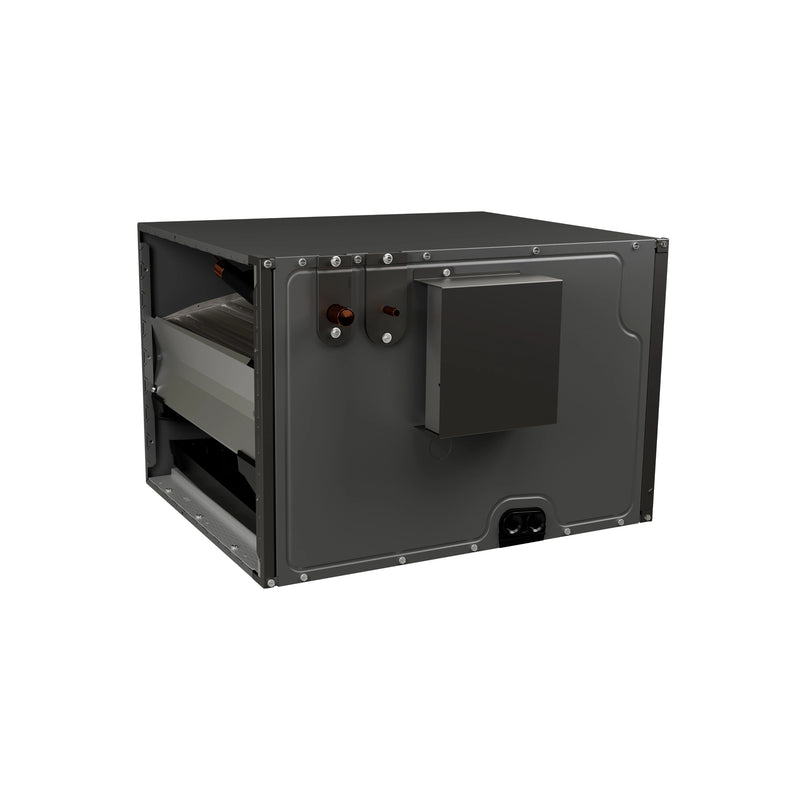

Goodman 2.5 Ton Evaporator Coil Aluminum Cased Horizontal Cabinet with EEV CHPEA3026C3

The Goodman CHPEA3026C3 is a horizontal A coil evaporator designed for efficient air cooling. This unit is engineered for use with R-32 refrigerant, promoting lower environmental impact. The entire coil is constructed from aluminum, ensuring durability and reliable performance.

Key Features

Factory-installed electronic expansion valve (EEV)
Designed for horizontal airflow applications
Cooling capacity of three tons

Product Highlights

This evaporator coil features an all-aluminum design and is optimized for horizontal installation, providing consistent cooling. The unit includes a factory-installed EEV for precise refrigerant control, enhancing efficiency.

View More Coils

Specifications

Goodman 2.5 Ton Evaporator Coil Aluminum Cased Horizontal Cabinet with EEV CHPEA3026C3

Brand	Goodman	Model Number	CHPEA3026C3
Product Line	CHPEA	Refrigerant Type	R-32
Configuration	Horizontal	Capacity	3.0 Tons
Cooling BTU	36,000	Suction Connection Size	7/8 Inch
Liquid Connection Size	3/8 Inch	Cabinet Width	26 Inches
Product Height	21 Inches	Product Width	26 Inches
Product Depth	21 Inches	Product Weight	52 Pounds
Shipping Weight	67 Pounds	TXV Installed	Yes
ETL Listed	Yes	AHRI Certified	Yes
ISO Certified	Yes	Parts Warranty	12 Limited Years

Warranty

Goodman 2.5 Ton Evaporator Coil Aluminum Cased Horizontal Cabinet with EEV CHPEA3026C3

Warranty Type	Parts
Standard Warranty	5 years
Registered Warranty	12 years

Documents

Goodman 2.5 Ton Evaporator Coil Aluminum Cased Horizontal Cabinet with EEV CHPEA3026C3

Installation Manual

Specifications Sheet

Warranty Information
