Name: Goodman 3 Ton Evaporator Coil Cased Aluminum Horizontal EEV Expansion R32
Brand: Goodman
SKU: CHPEA3626B3
Price: 820.0 USD
Availability: InStock

December Sale Is Live! | Click Or Call 833-658-3387

Goodman 3 Ton Evaporator Coil Cased Aluminum Horizontal EEV Expansion R32

By Goodman | Model: CHPEA3626B3 | ID: 101401

✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$820.00 + SHIPPING

Quantity

Product Details

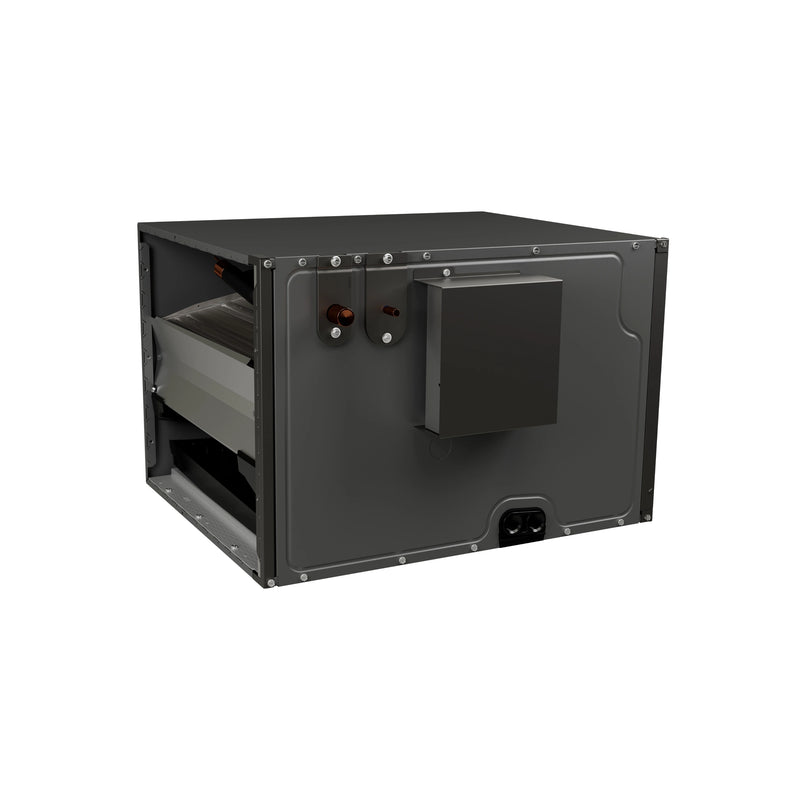

Goodman 3 Ton Evaporator Coil Cased Aluminum Horizontal EEV Expansion R32 CHPEA3626B3

The Goodman CHPEA3626B3 is a 3-ton horizontal evaporator coil engineered for efficient cooling performance. It includes a factory-installed electronic expansion valve (EEV) for enhanced refrigerant control and is optimized for use with R-32 refrigerant. The 21-inch depth allows easier installation in tight attic spaces, and its durable cabinet construction ensures long-lasting performance. Ideal for residential or light commercial HVAC systems requiring horizontal airflow configurations.

Key Features

Factory-Installed Electronic Expansion Valve (EEV) for Precise Refrigerant Control
Optimized for Use with R-32 Refrigerant Systems
Horizontal Airflow Configuration
21" Cabinet Depth for Easier Attic Access
Galvanized Steel Cabinet with Leather-Grain Embossed Finish
Foil-Faced Insulation Minimizes Condensation and Sound
Single Front Access Panel for Simplified Maintenance

This coil is ideal for heat pump or air conditioner applications requiring horizontal orientation. Its design ensures reliable cooling performance and compatibility with advanced refrigerants like R-32.

View More Coils

Specifications

Goodman 3 Ton Evaporator Coil Cased Aluminum Horizontal EEV Expansion R32 CHPEA3626B3

Brand	Goodman	SKU	CHPEA3626B3
Refrigerant Type	R-32	Cased/Uncased	Cased
Tonnage	3	Coil Application	Horizontal A
Expansion Device - Refrigerant Control	Electronic Expansion Valve - EEV	Tubing/Fin Construction	Rifled aluminum tubing, enhanced aluminum fins
Height	17-1/2 Inch	Liquid Line Size	3/8 Inch
Nominal Capacity	3 ton	Suction Line Size	3/4 Inch
Width	21-1/8 Inch

Warranty

Goodman 3 Ton Evaporator Coil Cased Aluminum Horizontal EEV Expansion R32 CHPEA3626B3

Warranty Type	Parts
Standard Warranty	5 years
Registered Warranty	10 years

Documents

Goodman 3 Ton Evaporator Coil Cased Aluminum Horizontal EEV Expansion R32 CHPEA3626B3

Installation Manual

Specifications Sheet

Warranty Information
