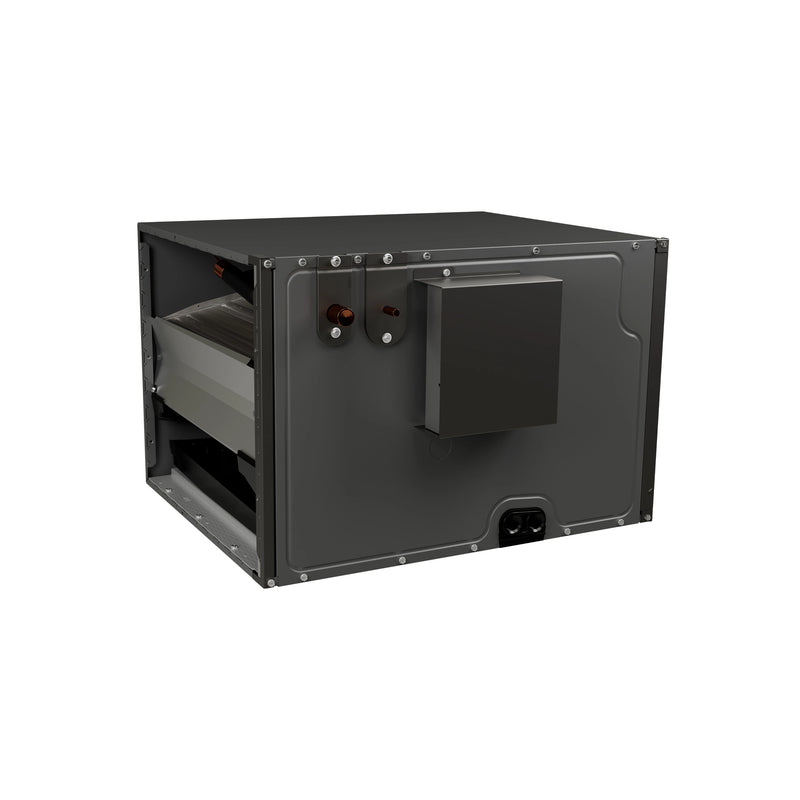

Name: Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal EEV 24.5" Width R32
Brand: Goodman
SKU: CHPEA4830D3
Price: 930.0 USD
Availability: InStock

December Sale Is Live! | Click Or Call 833-658-3387

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal EEV 24.5" Width R32

By Goodman | Model: CHPEA4830D3 | ID: 101404

✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$930.00 + SHIPPING

Quantity

Product Details

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal EEV 24.5" Width R32 CHPEA4830D3

An air conditioner or heat pump is only as good as its evaporator coil. The Goodman CHPEA series is designed with accessibility, longevity, and value in mind, matching the quality of Goodman’s heating and cooling equipment. This cased A coil is made for horizontal airflow applications, with an all-aluminum construction that improves durability and heat transfer efficiency.

Key Features

All-Aluminum Evaporator Coil: Reliable design with fins and grooved tubes to maximize surface area and optimize heat transfer.
Secure Cabinet: Galvanized, embossed, and insulated cabinet that prevents air leakage and ensures long-lasting efficiency.
Condensate Management: Foil-faced insulation reduces condensate formation, while a UV-resistant, DecaBDE-free thermoplastic drain pan with secondary drain connections keeps the system safe and operational.pr
Optimized for R-32 Refrigerant: Fully compatible with R-32 refrigerant, making it the ideal choice for modern HVAC systems.
Internal Electronic Expansion Valve (EEV): Factory-installed for simplified installation and precise refrigerant flow management.
Extended Warranty: 12-year limited parts warranty with online registration within 60 days of installation. Standard 5-year warranty applies if unregistered.

View More Coils

Specifications

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal EEV 24.5" Width R32 CHPEA4830D3

Type	Evaporator Coil	SKU	CHPEA4830D3
Product Category	Evaporator Coil	Refrigerant Type	R-32
Casing	Cased	Style	A Coil
Configuration	Horizontal	TXV Installed	Yes
Capacity	4.0 Tons	Cooling BTU	48000
Nominal Minimum Cooling Capacity	48000 BTU	Suction Connection Size	1 1/8 Inches
Liquid Connection Size	3/8 Inch	Cabinet Width	30 Inches
Product Height	24 1/2 Inches	Product Width	30 Inches
Product Depth	21 Inches	Product Weight	63 Pounds
Shipping Weight	78 Pounds	ETL Listed	Yes
AHRI Certified	Yes	ISO Certified	Yes
Parts Warranty	12 Years

Warranty

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal EEV 24.5" Width R32 CHPEA4830D3

Warranty Type	Parts
Standard Warranty	5 Years
Registered Warranty	12 Years

Documents

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal EEV 24.5" Width R32 CHPEA4830D3

Installation Manual

Specifications Sheet

Warranty Information
