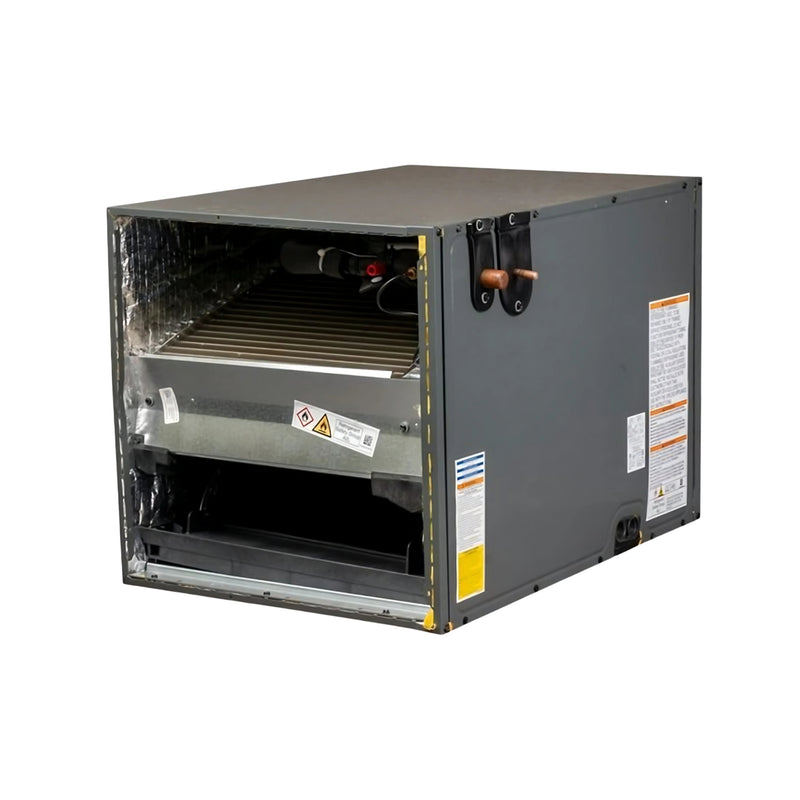

Name: Goodman 3.5 Ton Cased Evaporator Coil R32 Horizontal 21"W With Internal TXV
Brand: Goodman
SKU: CHPTA4230C3
Price: 931.0 USD
Availability: InStock

December Sale Is Live! | Click Or Call 833-658-3387

Goodman 3.5 Ton Cased Evaporator Coil R32 Horizontal 21"W With Internal TXV

By Goodman | Model: CHPTA4230C3 | ID: 100090

✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$931.00 + SHIPPING

Quantity

Product Details

Goodman 3.5 Ton Cased Evaporator Coil R32 Horizontal 21"W With Internal TXV CHPTA4230C3

The Goodman CHPTA4230C3 is a high-performance 3.5-ton horizontal evaporator coil designed for use with R-32 refrigerant systems. Built from durable, all-aluminum components and equipped with factory-installed TXVs for both cooling and heat pump applications, this coil offers exceptional system efficiency, corrosion resistance, and reliable comfort. Compact and installer-friendly, it’s ideal for attics, crawl spaces, or horizontal configurations where space and accessibility are critical.

Key Specifications

Tonnage - 3.5 tons, optimized for high-efficiency R-32 refrigerant systems.
Construction - All-aluminum tubing and fin design for superior heat transfer and long-term durability.
Thermal Expansion Valves (TXVs) - Factory-installed for both cooling and heat pump applications to ensure precise refrigerant control and enhanced system efficiency.
Design - Compact 21" depth optimized for horizontal installation in space-limited areas such as attics or mechanical closets.
Insulation - Foil-faced interior insulation minimizes cabinet condensation and thermal loss.
Drain Pan - Molded thermoplastic drain pan with rust and UV resistance, featuring low water retention and secondary drainage connections.
Serviceability - Removable rails and a single front access panel simplify maintenance and inspection.
Refrigerant Lines - Standardized copper suction and liquid line stub lengths for easy system matching.
Certifications - ETL Listed and AHRI Certified, ensuring compliance with safety and performance standards.

Performance & Installation Advantages

High Efficiency - Designed specifically for R-32 refrigerant to improve energy transfer and system SEER2 performance.
Corrosion Resistance - Aluminum construction eliminates the risk of galvanic corrosion for longer coil life.
Compact Profile - 21-inch depth enables installation in tighter spaces without sacrificing capacity or efficiency.
Easy Access - Single removable front panel allows quick coil inspection and cleaning.
Flexible Installation - Ideal for horizontal left or right airflow configurations in residential HVAC systems.

Why Choose the Goodman CHPTA4230C3?

The Goodman CHPTA4230C3 3.5-Ton Horizontal Evaporator Coil is a versatile and reliable component for R-32 HVAC systems. Its all-aluminum build, factory-installed TXVs, and service-friendly design make it a perfect match for homeowners and HVAC professionals seeking durable, efficient, and space-saving performance. Whether used in new installations or retrofit projects, it ensures long-term reliability and compliance with modern refrigerant standards.

View More Coils

Specifications

Goodman 3.5 Ton Cased Evaporator Coil R32 Horizontal 21"W With Internal TXV CHPTA4230C3

Brand	Goodman	SKU	CHPTA4230C3
Weight (in lbs)	70	Product Features	New Refrigerant Compliant
Configuration	Horizontal	Refrigerant	R32
Liquid Line	3/8"	Suction Line	7/8"
Tonnage	3.5 Ton	Style	A-Coil
Certification	ETL Listed \| AHRI Certified	Height	30"
Width	21"	Depth	21"
Warranty	10 Years Parts with Online Registration

Warranty

Goodman 3.5 Ton Cased Evaporator Coil R32 Horizontal 21"W With Internal TXV CHPTA4230C3

Warranty Type	Residential	Multi-Family	Commercial
Standard Warranty	5 year parts	5 year parts	5 year parts
Registered Warranty	10 year parts	10 year parts	5 year parts

Documents

Goodman 3.5 Ton Cased Evaporator Coil R32 Horizontal 21"W With Internal TXV CHPTA4230C3

CHPTA Installation Manual

CHPTA Specifications Sheet

CHPTA Service Manual

Goodman Evaporator Coil Warranty
