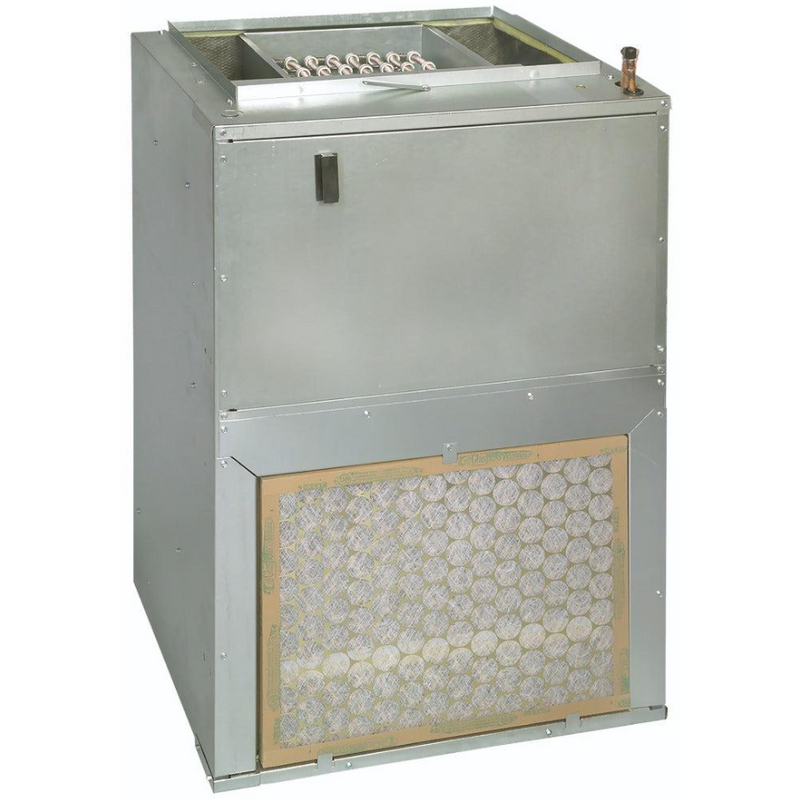

Name: Goodman 1.5 Ton R32 Ducted Air Handler Wall Mounted 20.2"W Cabinet With TXV
Brand: Goodman
SKU: AWST18SU1303
Price: 900.0 USD
Availability: InStock

December Sale Is Live! | Click Or Call 833-658-3387

Goodman 1.5 Ton R32 Ducted Air Handler Wall Mounted 20.2"W Cabinet With TXV

By Goodman | Model: AWST18SU1303 | ID: 100038

✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$900.00 + SHIPPING

Quantity

Product Details

Goodman 1.5 Ton R32 Ducted Air Handler Wall Mounted 20.2"W Cabinet With TXV

The AWST Ducted Wall-Mounted Air Handler offers efficient, flexible climate control in a compact 20-3/13 inch cabinet. Designed for systems ranging from 1.5 to 3 tons, this unit features a multi-speed ECM motor for precise airflow and energy efficiency. The integrated Thermostatic Expansion Valve (TXV) ensures optimal refrigerant management and consistent cooling performance.

Perfect for wall-mounted installations, the AWST air handler combines compact size with high performance, making it an ideal choice for both residential and light commercial applications. Its robust design and advanced technology ensure reliable, efficient operation for enhanced comfort.

Coil: All-aluminum for enhanced durability
Reliability: Improved design for greater reliability and quality
TXV: Factory-installed Thermostatic Expansion Valve for faster installation and more efficient refrigerant metering

Cabinet Features:

Air Leakage:
- Less than 2.0% at 1.0 inch H2O (ASHRAE Standard 193)
- Less than 1.4% at 0.5 inch H2O (ASHRAE Standard 193)
Filter Rack: Built-in with filter included
Chassis Sizes:
- Large (2-1/2 and 3 tons): Front return only
- Small (1-1/2 and 2 tons): Front or bottom return
Mounting: Wall-hanging bracket included

View More Air Handlers

Specifications

Goodman 1.5 Ton R32 Ducted Air Handler Wall Mounted 20.2"W Cabinet With TXV

Brand	Goodman	Model #	AWST18SU1303
Refrigerant Type	R-32	Unit Depth	13.125 in
Unit Height	36 in	Unit Width	20.2 in
Cooling Capacity Nominal	18000 Btu/H	Max Overcurrent Protection	20/20 A
Power Phase	1 Ph	Power Voltage	208/230 V
Tonnage	1.5	Energy Source	Electric
Motor Speed Type	Multi-Speed ECM	Replaces	AWST18SU1403

Warranty

Goodman 1.5 Ton R32 Ducted Air Handler Wall Mounted 20.2"W Cabinet With TXV

Warranty Type	Residential	Multi-Family	Commercial
Standard Warranty	5 year parts	5 year parts	5 year parts
Registered Warranty	10 year parts	10 year parts	5 year parts

Documents

Goodman 1.5 Ton R32 Ducted Air Handler Wall Mounted 20.2"W Cabinet With TXV

Installation Manual

Specification Sheets

Warranty Information
