Name: Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM 10KW Heat R32
Brand: Goodman
SKU: ACST30LU1310
Price: 1105.0 USD
Availability: InStock

December Sale Is Live! | Click Or Call 833-658-3387

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM 10KW Heat R32

By Goodman | Model: ACST30LU1310 | ID: 101362

✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$1,105.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM 10KW Heat ACST30LU1310

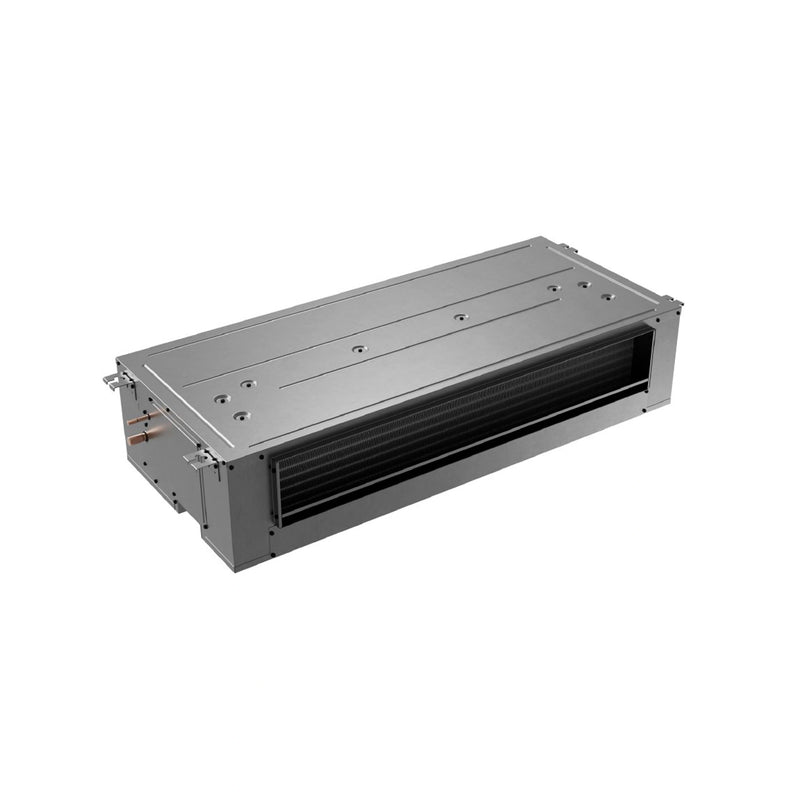

The Goodman ACST30LU1310 Ceiling Mounted Air Handler delivers high-capacity performance and versatile installation options for residential and commercial HVAC systems. Designed for use with R-32 refrigerant, this 2.5-ton unit provides 30,000 BTU of cooling and includes a powerful 12kW electric heat element. Its multi-speed ECM blower motor ensures smooth, energy-efficient airflow, while the all-aluminum coil and galvanized steel cabinet provide durable, long-lasting operation. Ideal for ceiling-mounted and free-return installations, this unit also features factory-installed disconnect and service-friendly access for simplified maintenance.

Key Features

2.5 Ton ceiling-mounted air handler with compact, space-saving design
Delivers 30,000 BTU cooling capacity and supports R-32 refrigerant
12kW electric heat with rust-resistant nickel chromium elements
Multi-speed ECM motor for quiet, efficient airflow control
All-aluminum coil construction resists corrosion
Primary/secondary drain connections with high-temperature plastic pan
Galvanized-steel cabinet for enhanced durability and protection
Factory-installed pull-type disconnect switch included
Suitable for free-return (non-ducted return air) installations
AHRI Certified and ETL Listed
10-Year Parts Limited Warranty with online registration

This unit is designed for high-output ceiling-mounted systems and offers reliable comfort with both cooling and electric heat functions.

View More Air Handlers

Specifications

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM 10KW Heat ACST30LU1310

Brand	Goodman	SKU	ACST30LU1310
Weight (in lbs)	97	Product Features	Space-Saving
Cooling BTU	30,000	Blower Motor	Multi-Speed ECM
Maximum CFM	934	Electric Heat	12 Kilowatts
Configuration	Ceiling Mounted	Refrigerant	R32
Liquid Line	3/8"	Suction Line	3/4"
Electrical	208/230v 1 Phase 60 Hz	Max Breaker Size	60 Amps/50 Amps
Min. Breaker Size	54.6 Amps/47.6 Amps	Tonnage	2.5 Ton
Height	11"	Width	54.2"
Depth	22.27"	Warranty	10 Years Parts with Online Registration

Warranty

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM 10KW Heat ACST30LU1310

Warranty Type	Parts
Standard Warranty	5 Years
Registered Warranty	10 Years

Documents

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM 10KW Heat ACST30LU1310

Ceiling Mount Air Handler Installation Manual

ACST Specifications

ACST Service Manual

Goodman Air Handler Warranty

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
