Name: Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 5KW Heat R32
Brand: Goodman
SKU: ACST30LU1305
Price: 1052.0 USD
Availability: InStock

December Sale Is Live! | Click Or Call 833-658-3387

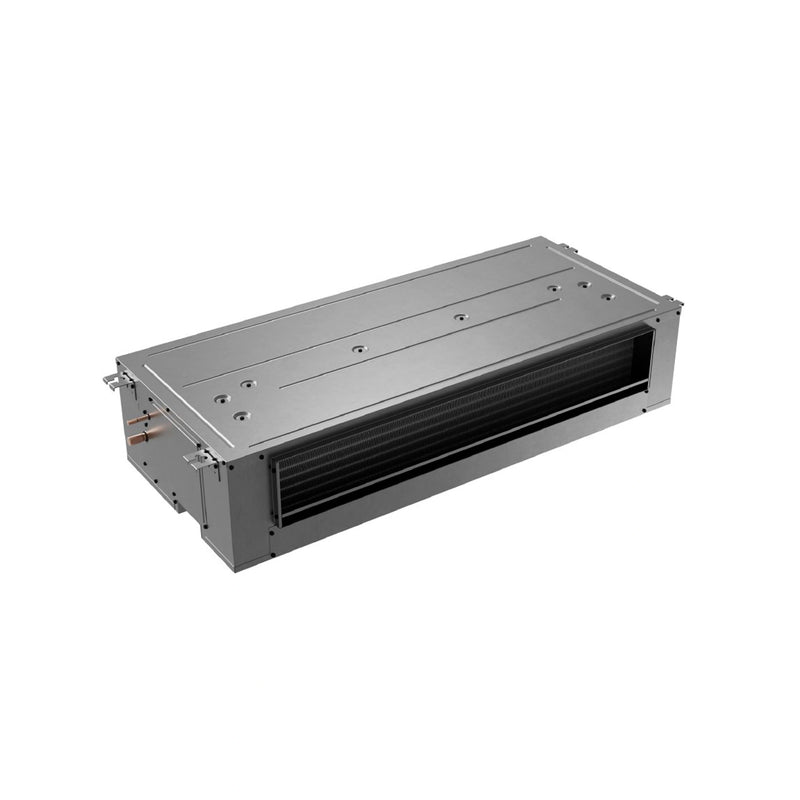

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 5KW Heat R32

By Goodman | Model: ACST30LU1305 | ID: 101359

✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$1,052.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 5KW Heat ACST30LU1305

The Goodman ACST30LU1305 Ceiling Mounted Air Handler offers powerful performance in a space-saving design, perfect for areas where standard vertical units cannot be installed. Designed to support R-32 refrigerant systems, this 2.5-ton model delivers 30,000 BTU cooling capacity, features a multi-speed ECM motor, and integrates a 5kW electric heat element. Its galvanized steel construction, all-aluminum coil, and factory-installed safety features make it an efficient, durable, and quiet air handler for ceiling-mounted applications.

Key Features

2.5 Ton ceiling-mounted air handler ideal for tight spaces
Delivers 30,000 BTU cooling capacity
Multi-speed ECM blower motor for smooth, quiet airflow
5kW electric heat with nickel chromium heating elements
All-aluminum tube and fin evaporator coil resists corrosion
Factory-installed pull-type disconnect for easy servicing
Galvanized steel cabinet for long-term durability
Primary and secondary high-temp drain pan connections
Free-return installation compatible (non-ducted)
AHRI Certified and ETL Listed
10-Year Parts Limited Warranty with online registration

This unit is ideal for residential or light commercial applications requiring ceiling-mounted air handling with efficient cooling and supplemental electric heat.

View More Air Handlers

Specifications

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 5KW Heat ACST30LU1305

Brand	Goodman	SKU	ACST30LU1305
Weight (in lbs)	97	Product Features	Space-Saving
Cooling BTU	30,000	Blower Motor	Multi-Speed ECM
Maximum CFM	934	Electric Heat	5 Kilowatts
Configuration	Ceiling Mounted	Refrigerant	R32
Liquid Line	3/8"	Suction Line	3/4"
Electrical	208/230v 1 Phase 60 Hz	Max Breaker Size	30 Amps/30 Amps
Amperage Requirement	28.5 Amps/25.1 Amps	Tonnage	2.5 Ton
Height	11"	Width	54.2"
Depth	22.27"	Warranty	10 Years Parts with Online Registration

Warranty

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 5KW Heat ACST30LU1305

Warranty Type	Parts
Standard Warranty	5 Years
Registered Warranty	10 Years

Documents

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 5KW Heat ACST30LU1305

Ceiling Mount Air Handler Installation Manual

ACST Specifications

ACST Service Manual

Goodman Air Handler Warranty

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
