Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 6KW Heat R32

By Goodman | Model: ACST30LU1306 | ID: 101360

✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$1,075.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

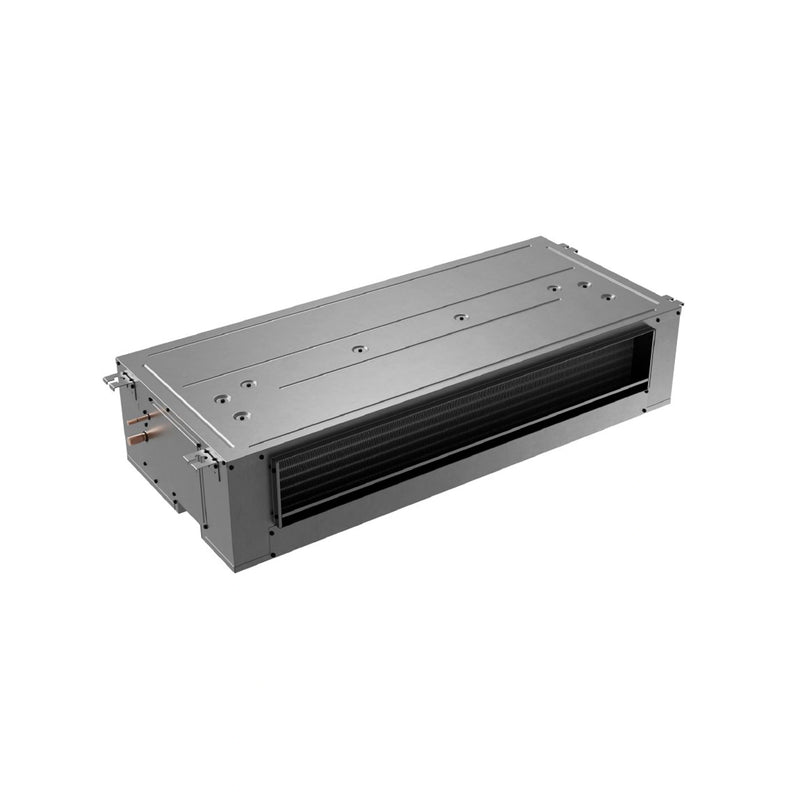

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 6KW Heat ACST30LU1306

The Goodman ACST30LU1306 Ceiling Mounted Air Handler is a compact and efficient solution for applications where vertical air handlers are not feasible. Designed for use with R-32 refrigerant, this 2.5-ton model provides up to 30,000 BTU of cooling and features a resilient-mounted multi-speed ECM motor for smooth and quiet operation. With an integrated 6kW electric heat strip, durable galvanized steel cabinet, and high-efficiency all-aluminum coil, this model ensures year-round comfort and long-lasting performance. It’s ideal for ceiling-mounted, free-return installations and comes with a factory-installed pull-type disconnect for added convenience.

Key Features

2.5 Ton ceiling-mounted air handler for limited-space installations
Delivers 30,000 BTU cooling capacity with R-32 refrigerant
Multi-speed ECM blower motor for energy-efficient, quiet performance
6kW electric heat with nickel chromium heating elements
All-aluminum tube and fin coil for corrosion resistance and reliability
Primary and secondary drain pan connections made of high-temp plastic
Galvanized-steel cabinet construction for enhanced durability
Factory-installed pull-type disconnect switch
ETL Listed and AHRI Certified for verified performance
10-Year Parts Limited Warranty with online registration

Ideal for ceiling-mounted HVAC systems where space is limited, this unit combines high-performance cooling and heating in one efficient package.

View More Air Handlers

Specifications

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 6KW Heat ACST30LU1306

Brand	Goodman	SKU	ACST30LU1306
Weight (in lbs)	97	Product Features	Space-Saving
Cooling BTU	30,000	Blower Motor	Multi-Speed ECM
Maximum CFM	934	Electric Heat	6 Kilowatts
Configuration	Ceiling Mounted	Refrigerant	R32
Liquid Line	3/8"	Suction Line	3/4"
Electrical	208/230v 1 Phase 60 Hz	Max Breaker Size	35 Amps/30 Amps
Amperage Requirement	33.8 Amps/29.6 Amps	Tonnage	2.5 Ton
Height	11"	Width	54.2"
Depth	22.27"	Warranty	10 Years Parts with Online Registration

Warranty

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 6KW Heat ACST30LU1306

Warranty Type	Parts
Standard Warranty	5 Years
Registered Warranty	10 Years

Documents

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 6KW Heat ACST30LU1306

Ceiling Mount Air Handler Installation Manual

ACST Specifications

ACST Service Manual

Goodman Air Handler Warranty
