Product Details

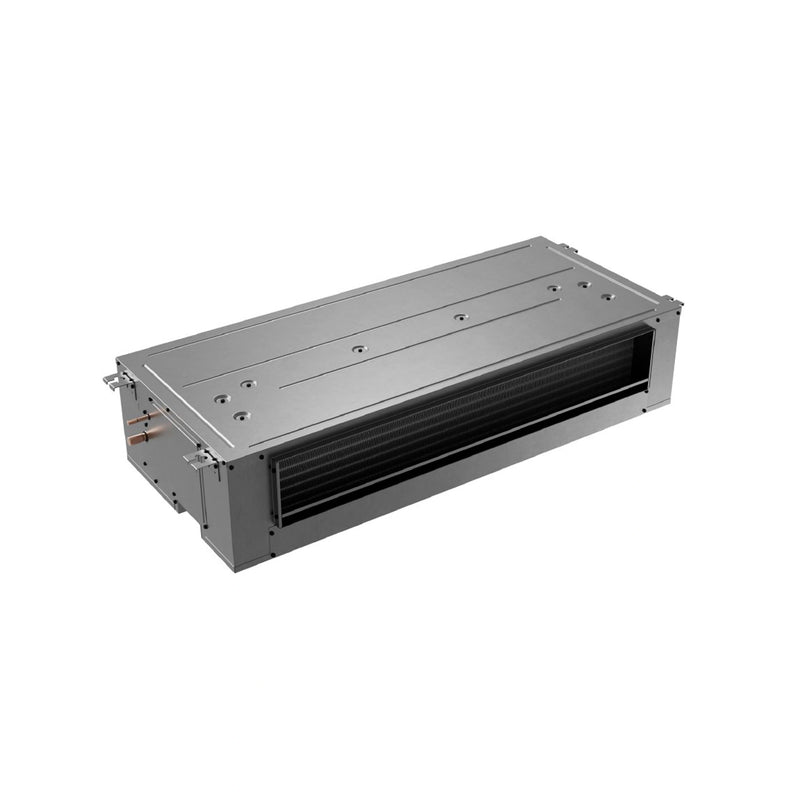

Goodman 2 Ton Ceiling Mount Air Handler Multi Speed ECM With 5KW Heat ACST24LU1305

The Goodman ACST24LU1305 Ceiling Mounted Air Handler offers a compact, space-saving solution designed to deliver efficient and quiet airflow in homes where standard air handlers may not fit. Optimized for R-32 refrigerant, this 2-ton air handler features a high-performance all-aluminum coil, multi-speed ECM blower motor, and integrated electric heat capabilities for enhanced versatility and comfort. With galvanized steel construction, service-friendly access, and AHRI certification, this unit combines durability, reliability, and ease of installation in one efficient package.

Key Features

Ceiling-mounted air handler design ideal for tight spaces
All-aluminum tube and fin coil for enhanced durability and performance
Multi-speed ECM blower motor for consistent airflow control
Integrated nickel chromium heating elements: 5, 6, 8, and 10 kW options
Factory-installed pull-type disconnect for safety and convenience
High-temperature plastic drain pan with dual drain connections
Quiet operation with direct-drive blower assembly
Galvanized-steel cabinet for long-lasting durability
ETL listed and AHRI certified for performance assurance
10-Year Parts Warranty with online registration

This unit is suitable for free-return (non-ducted return air) applications and offers efficient climate control in homes or spaces requiring ceiling-mounted air solutions.

View More Air Handlers

Specifications

Goodman 2 Ton Ceiling Mount Air Handler Multi Speed ECM With 5KW Heat ACST24LU1305

Brand	Goodman	SKU	ACST24LU1305
Weight (in lbs)	97	Product Features	Space-Saving
Cooling BTU	24,000	Blower Motor	Multi-Speed ECM
Maximum CFM	934	Electric Heat	5 Kilowatts
Configuration	Ceiling Mounted	Refrigerant	R32
Liquid Line	3/8"	Suction Line	3/4"
Electrical	208/230v 1 Phase 60 Hz	Max Breaker Size	30 Amps/30 Amps
Min. Breaker Size	28.5 Amps/25.1 Amps	Tonnage	2 Ton
Height	11"	Width	54.2"
Depth	22.27"	Warranty	10 Years Parts with Online Registration

Warranty

Goodman 2 Ton Ceiling Mount Air Handler Multi Speed ECM With 5KW Heat ACST24LU1305

Warranty Type	Parts
Standard Warranty	5 Years
Registered Warranty	10 Years

Documents

Goodman 2 Ton Ceiling Mount Air Handler Multi Speed ECM With 5KW Heat ACST24LU1305

Ceiling Mount Air Handler Installation Manual

ACST Specifications

ACST Service Manual

Goodman Air Handler Warranty
