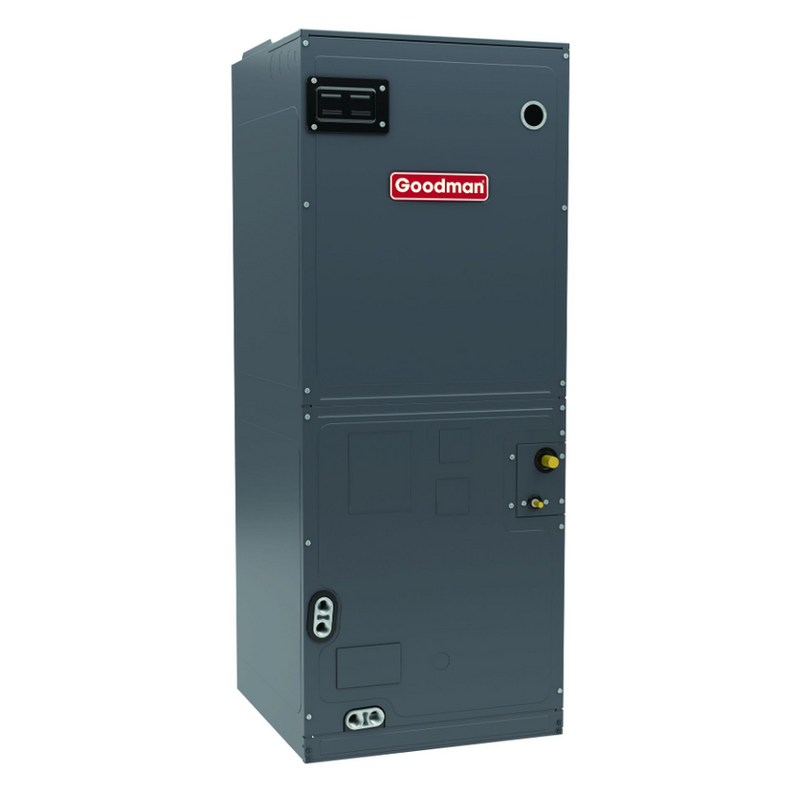

Goodman 4 Ton Ducted Air Handler R32 Multi-Position 24.5"W Cabinet With TXV

By Goodman | Model: AMST48DU1300 | ID: 100036

✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$2,001.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

Goodman 4 Ton Ducted Air Handler R32 Multi-Position 24.5"W Cabinet With TXV

The AMST Ducted Multi-Position Air Handler combines high efficiency and versatile performance in a compact 24 1/2 inch cabinet. With its advanced nine-speed ECM motor, it delivers precise airflow and energy savings, while the high-efficiency evaporator coil and TXV ensure top-notch cooling performance. This unit is ideal for various installations, offering reliable comfort and ease of maintenance for year-round use. Certified by AHRI and ETL Listed, it stands out for its efficiency and durability.

Product Features:

Coil Design: All-aluminum tube/aluminum fin coil
Motor: Direct-drive, resilient-mount, nine-speed ECM motor
Heating Options: Available with rust-resistant nickel chromium heating elements (5, 6, 8, or 10 kW) or without heat (sold separately)
Efficiency: High-efficiency evaporator coil
Operation: Quiet operation
Drain Connections: Primary/secondary drain in a high-temperature plastic drain pan
Installation Flexibility: Suitable for free-return (non-ducted) installation
Construction: Galvanized-steel construction
Disconnect: Factory-installed pull-type disconnect
Service Access: Easy service access
Certifications: AHRI Certified, ETL Listed

Cabinet Features:

Frame: Rigid SmartFrame cabinet
Configuration: Horizontal or vertical installation capabilities
Access: 21” depth for easier attic access
Drain Pan: DecaBDE-free thermoplastic drain pan with secondary drain connections
Design: Screw-less sides and back to reduce condensation in humid locations
Insulation: Foil-faced insulation to reduce cabinet condensation
Finish: Galvanized, leather grain-embossed finish
Insulation Retention: Glue-less cabinet insulation retention
Filter Access: Tool-less filter access

View More Air Handlers

Specifications

Goodman 4 Ton Ducted Air Handler R32 Multi-Position 24.5" Cabinet with TXV

Brand	Goodman	Model #	AMST48DU1300
Refrigerant Type	R-32	Unit Depth	21 in
Unit Height	53 7/16 in	Unit Width	24 1/2 in
Cooling Capacity Nominal	48000 Btu/H	Max Overcurrent Protection	60/60 A
Power Phase	1 Ph	Power Voltage	208/230 V
Cased/Uncased	Cased	Energy Source	Electric
Motor Speed Type	Nine Speed ECM	Unit Weight	155 lb
Tonnage	4	Replaces	AMST48DU1400

Warranty

Goodman 4 Ton Ducted Air Handler R32 Multi-Position 24.5" Cabinet with TXV

Warranty Type	Residential	Multi-Family	Commercial
Standard Warranty	5 year parts	5 year parts	5 year parts
Registered Warranty	10 year parts	10 year parts	5 year parts

Documents

Goodman 4 Ton Ducted Air Handler R32 Multi-Position 24.5"W Cabinet With TXV

Installation Manual

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
