Name: Goodman 3 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow
Brand: Goodman
SKU: CAPEA3626C3
Price: 931.0 USD
Availability: InStock

December Sale Is Live! | Click Or Call 833-658-3387

Goodman 3 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow

By Goodman | Model: CAPEA3626C3 | ID: 101372

✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$931.00 + SHIPPING

Quantity

Product Details

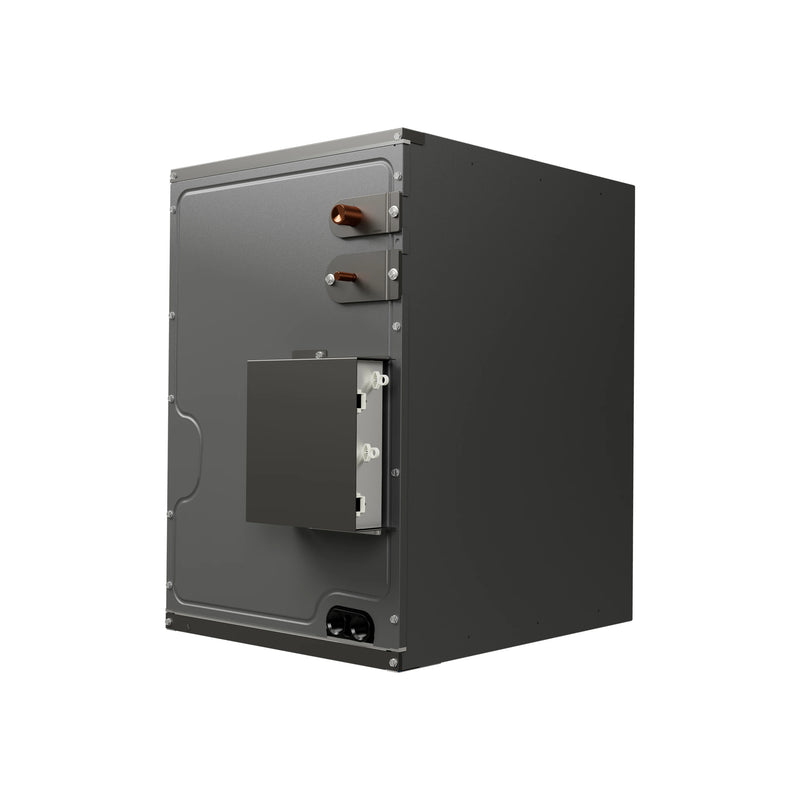

Goodman 3 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow CAPEA3626C3

The Goodman CAPEA3626C3 is a 3-ton cased evaporator coil engineered for upflow and downflow installations in split system air conditioners and heat pumps. Built with a durable all-aluminum coil, this unit ensures high-efficiency heat transfer while maintaining long-term corrosion resistance. The factory-installed thermal expansion valve (TXV) provides precise refrigerant control, making the coil compatible with R-32 refrigerant systems. Its compact cabinet features foil-faced insulation and a galvanized, leather grain-embossed finish for durability and reduced condensation.

Key Features

3 Ton Cooling Capacity (36,000 BTU)
All-Aluminum Coil Enhances Heat Transfer and Resists Corrosion
Factory-Installed TXV for Reliable Refrigerant Metering
R-32 Refrigerant Compatible for Modern HVAC Applications
Versatile Upflow and Downflow Configuration
Foil-Faced Insulation Reduces Internal Condensation
Galvanized Cabinet with Leather Grain-Embossed Finish
Single Front Access Panel for Easy Maintenance
AHRI Certified, ETL Listed, and ISO Certified

This evaporator coil offers a high-efficiency cooling solution for residential installations, combining advanced thermal performance with ease of servicing and long-lasting cabinet protection.

View More Coils

Specifications

Goodman 3 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow CAPEA3626C3

Brand	Goodman	SKU	CAPEA3626C3
Product Category	Evaporator Coil	Configuration	Downflow / Upflow
Refrigerant Type	R-32	Capacity	3.0 Tons
Cooling BTU	36000 BTU	Suction Line Size (OD)	7/8 Inches
Liquid Line Size (OD)	3/8 Inches	Width	21 Inches
Depth	21 Inches	Height	26 Inches
Product Weight	36 Pounds	Shipping Weight	51 Pounds
TXV Installed	Yes	Casing	Cased
Coil Type	A Coil	Certifications	AHRI, ETL, ISO
Parts Warranty	10 Limited Years

Warranty

Goodman 3 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow CAPEA3626C3

Warranty Type	Parts
Standard Warranty	5 Years
Registered Warranty	10 Years

Documents

Goodman 3 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow CAPEA3626C3

Installation Manual

Specifications Sheet

Warranty Information
