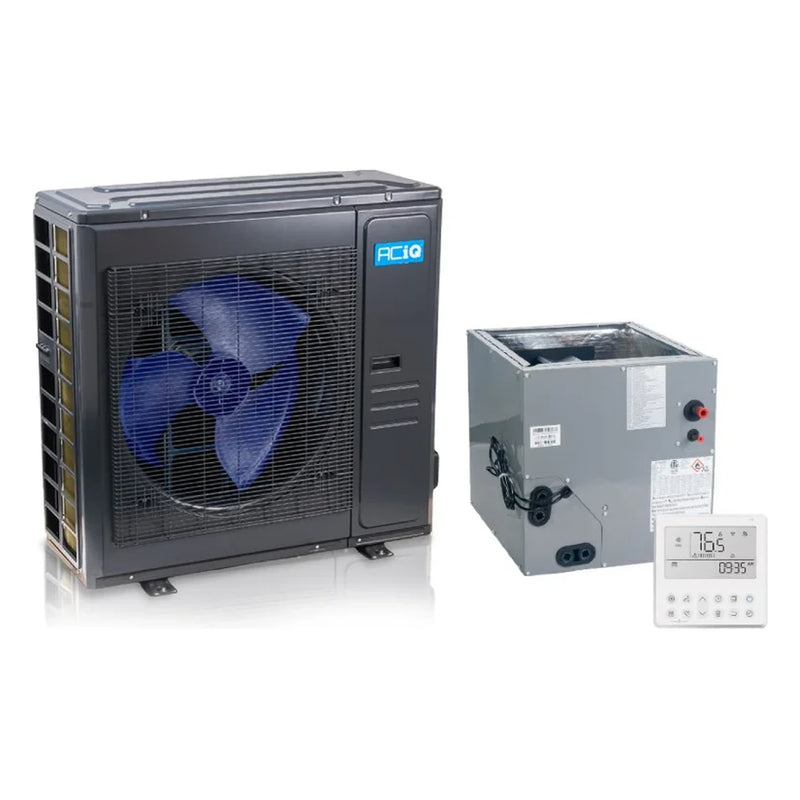

ACiQ 2.5 Ton 15.2 SEER2 Air Conditioner Condenser Inverter 230V R454B ACIQ-30-AC-B

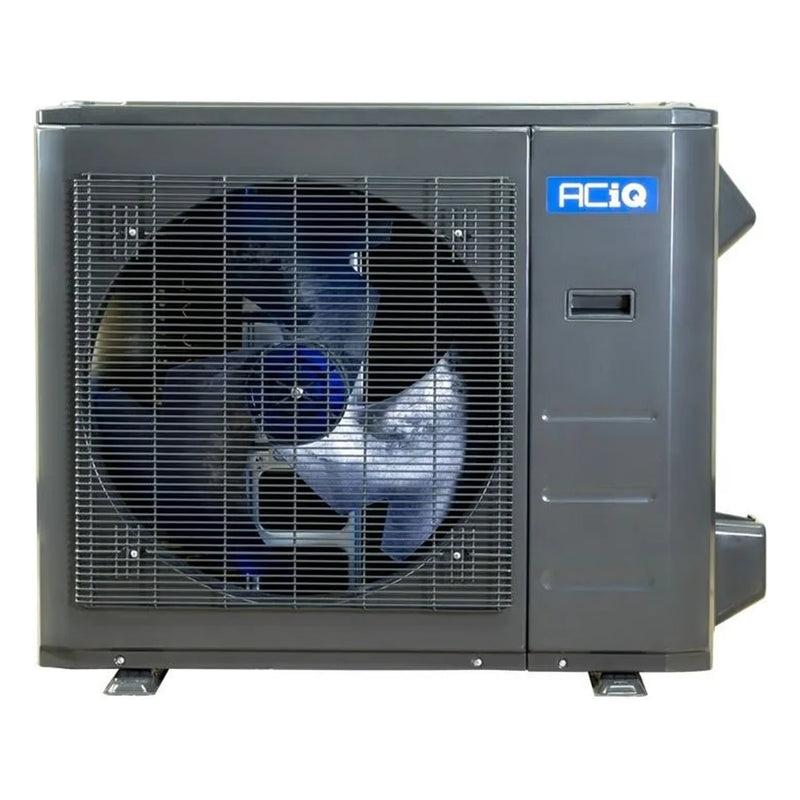

The ACIQ-30-AC-B is a 2.5 ton, 15.2 SEER2 air conditioner condenser built around a variable-speed inverter compressor and R454B refrigerant. Instead of cycling on and off at full capacity, the compressor speeds up and slows down to track real-time demand, and ACiQ's Learning Condenser technology monitors indoor and outdoor temperature, duct pressure, and refrigerant temperature during startup to fine-tune performance going forward.
Rated at 30,000 BTU of cooling with up to 1,825 CFM airflow and as low as 58 dBA of operating sound, this condenser can also throttle down to roughly a 1 ton unit when full capacity isn't needed, making it a good seasonal AC-only option for homes that already have another primary heat source such as a boiler or fireplace. It runs on a 208/230V single-phase circuit and weighs 105.6 lbs.
Key Features
-
Variable-Speed Inverter Compressor - Self-adjusts BTU output to match real-time demand instead of cycling at full capacity.
-
Learning Condenser Technology - Monitors temperature, duct pressure, and refrigerant temperature during startup to optimize future performance.
-
15.2 SEER2 Efficiency - Rated 15.2 SEER2 / 10.2 EER2 for lower cooling operating costs.
-
30,000 BTU Cooling Capacity - Delivers 30,000 BTU of cooling with up to 1,825 CFM of airflow.
-
Quiet Operation - Runs as low as 58 dBA, noticeably quieter than a fixed-speed condenser at full load.
-
R454B Refrigerant - Uses the lower-GWP R454B refrigerant charge required for current equipment.
-
Down to 1 Ton Operation - Inverter design lets the compressor throttle down for seasonal AC-only supplemental cooling.
-
208/230V Single-Phase Electrical - Runs on a 208/230V 1-phase 60 Hz circuit with a 20 Amps max breaker.
Important Refrigerant Safety Notice: This unit uses R454B, an A2L mildly flammable refrigerant. It must be paired with a compatible, A2L-rated indoor coil or air handler equipped with proper leak detection. Please call 1-888-557-9206 with any compatibility questions before purchasing or installing.

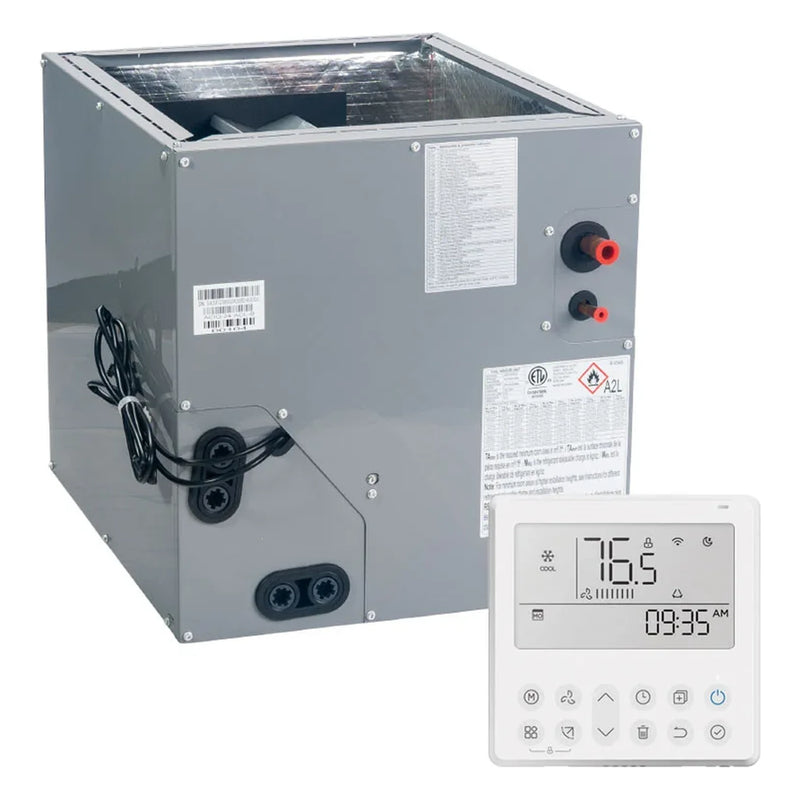

ACiQ 3 Ton Evaporator Coil Cased Multi-Positional With TXV 17.5"W R454B ACIQ-36-ACL-17-B
The ACiQ-36-ACL-17-B multi-positional A-coil delivers superior performance and energy efficiency for residential and light commercial heating and cooling systems. Designed for versatile installation in upflow, downflow, or horizontal configurations, this coil works seamlessly with both AC-only and heat pump condensers. Its factory-installed TXV kit maximizes energy optimization, ensuring consistent comfort and optimized system efficiency throughout the year.
Key Features
-
Capacity - 3 ton multi-positional evaporator coil, ideal for medium to large residential or light commercial applications.
-
Versatile Installation - Works in almost any upflow, downflow, or horizontal system configuration.
-
Compatible Condensers - Operates with both AC-only and heat pump condensers for flexible system integration.
-
Factory-Installed TXV Kit - Enhances energy optimization and overall system efficiency.
-
Sturdy and Compact Design - Built for durability and compatibility with standard HVAC setups.
-
Optimized Performance - Can be larger than the paired condenser to improve unit efficiency, but should never be smaller.
-
System Requirement - Must be used with a compatible condenser and blower or furnace (sold separately) for proper operation.
The ACiQ-36-ACL-17-B multi-positional A-coil combines versatility, durability, and energy efficiency, making it an essential component for achieving reliable, cost-effective comfort in a wide range of HVAC systems.
