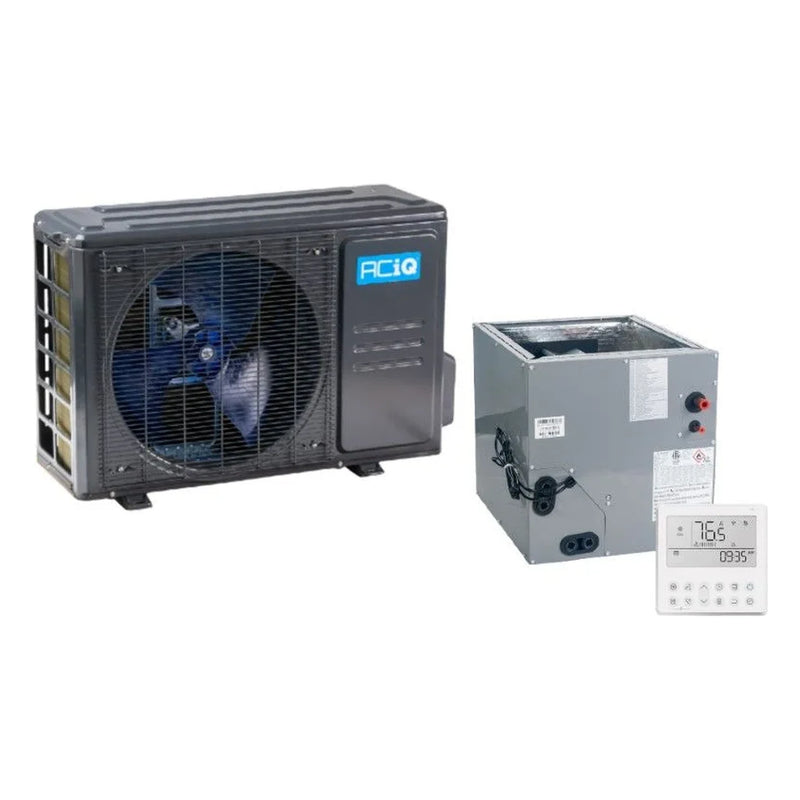

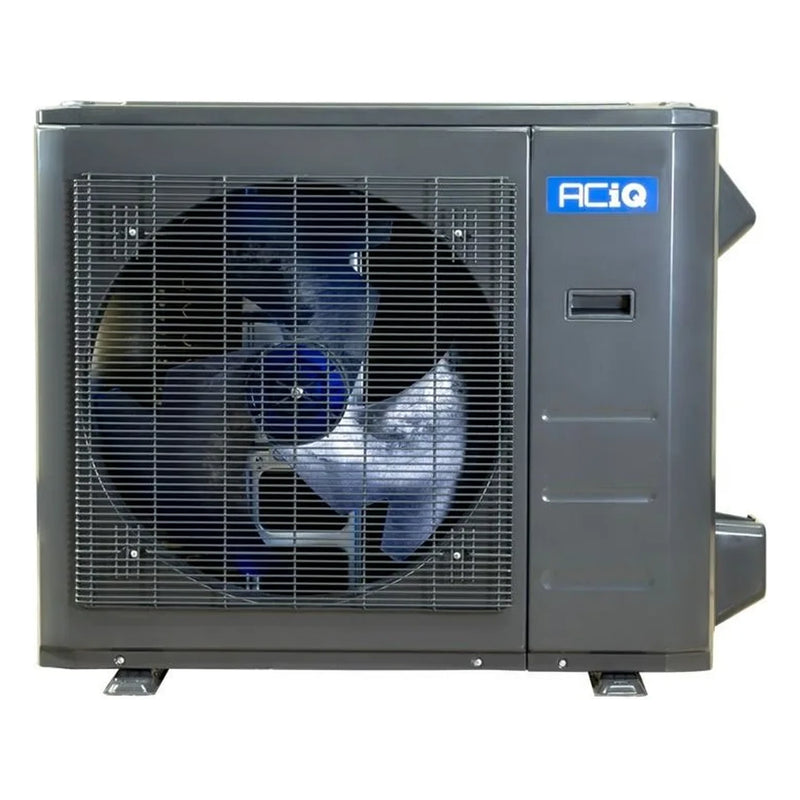

ACiQ 2 Ton 15.5 SEER2 Air Conditioner Condenser Inverter 230V R454B ACIQ-24-AC-B
The ACIQ-24-AC-B is a 2 ton, 15.5 SEER2 air conditioner condenser built around a variable-speed inverter compressor and R454B refrigerant. Instead of cycling on and off at full capacity, the compressor speeds up and slows down to track real-time demand, and ACiQ's Learning Condenser technology monitors indoor and outdoor temperature, duct pressure, and refrigerant temperature during startup to fine-tune performance going forward.
Rated at 24,000 BTU of cooling with up to 1,766 CFM airflow and as low as 56 dBA of operating sound, this condenser can also throttle down to roughly a 1 ton unit when full capacity isn't needed, making it a good seasonal AC-only option for homes that already have another primary heat source such as a boiler or fireplace. It runs on a 208/230V single-phase circuit and weighs 97 lbs.
Key Features
-
Variable-Speed Inverter Compressor - Self-adjusts BTU output to match real-time demand instead of cycling at full capacity.
-
Learning Condenser Technology - Monitors temperature, duct pressure, and refrigerant temperature during startup to optimize future performance.
-
15.5 SEER2 Efficiency - Rated 15.5 SEER2 / 10.6 EER2 for lower cooling operating costs.
-
24,000 BTU Cooling Capacity - Delivers 24,000 BTU of cooling with up to 1,766 CFM of airflow.
-
Quiet Operation - Runs as low as 56 dBA, noticeably quieter than a fixed-speed condenser at full load.
-
R454B Refrigerant - Uses the lower-GWP R454B refrigerant charge required for current equipment.
-
Down to 1 Ton Operation - Inverter design lets the compressor throttle down for seasonal AC-only supplemental cooling.
-
208/230V Single-Phase Electrical - Runs on a 208/230V 1-phase 60 Hz circuit with a 20 Amps max breaker.
Important Refrigerant Safety Notice: This unit uses R454B, an A2L mildly flammable refrigerant. It must be paired with a compatible, A2L-rated indoor coil or air handler equipped with proper leak detection. Please call 1-888-557-9206 with any compatibility questions before purchasing or installing.

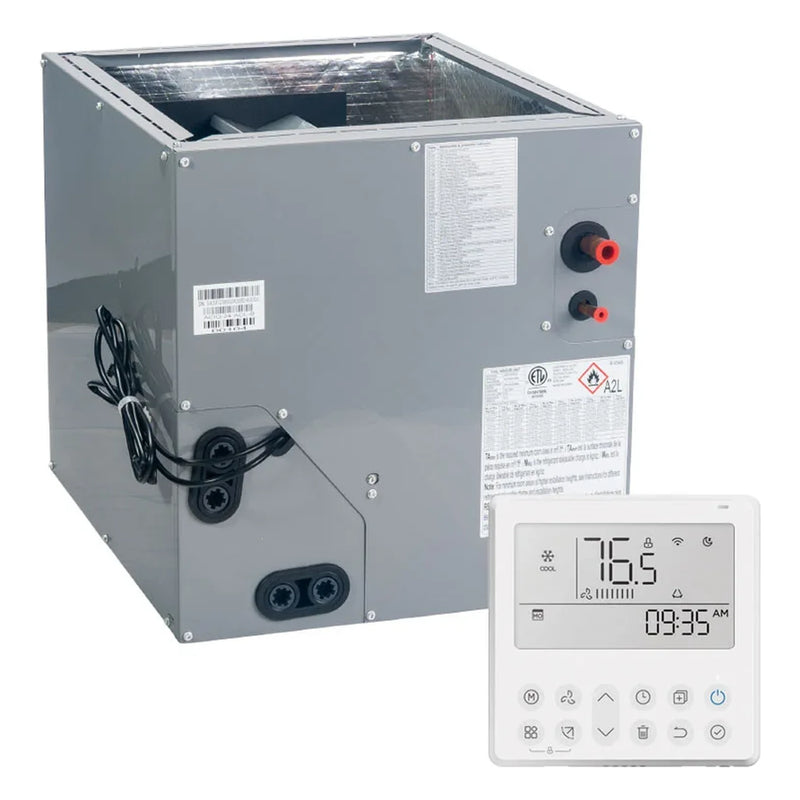

ACiQ 2 Ton Evaporator Coil Cased Multi-Positional 14.5"W With TXV R454B ACIQ-24-ACL-14-B
The ACiQ-24-ACL-14-B multi-positional A-coil delivers superior performance and energy efficiency for residential heating and cooling systems. Designed for versatile installation in upflow, downflow, or horizontal configurations, this coil works seamlessly with both AC-only and heat pump condensers. Equipped with a factory-installed TXV kit, it maximizes energy optimization and ensures reliable, efficient operation for year-round comfort.
Key Features
-
Capacity - 2 ton multi-positional evaporator coil, ideal for medium to large residential applications.
-
Versatile Installation - Works in almost any upflow, downflow, or horizontal system configuration.
-
Compatible Condensers - Designed to operate with both AC-only and heat pump condensers for flexible system integration.
-
Factory-Installed TXV Kit - Enhances energy optimization and overall system efficiency.
-
Sturdy and Compact Design - Built for durability while fitting standard HVAC configurations.
-
Optimized Performance - Can be larger than the paired condenser to improve unit efficiency but should never be smaller.
-
System Requirement - Must be used with a compatible condenser and blower or furnace (sold separately) for proper operation.
The ACiQ-24-ACL-14-B multi-positional A-coil combines versatility, durability, and energy efficiency to provide superior performance in a wide range of HVAC setups. Its advanced design and factory-installed TXV kit make it an essential component for achieving reliable, cost-effective comfort in your home.
View More Air Conditioner Split Systems
