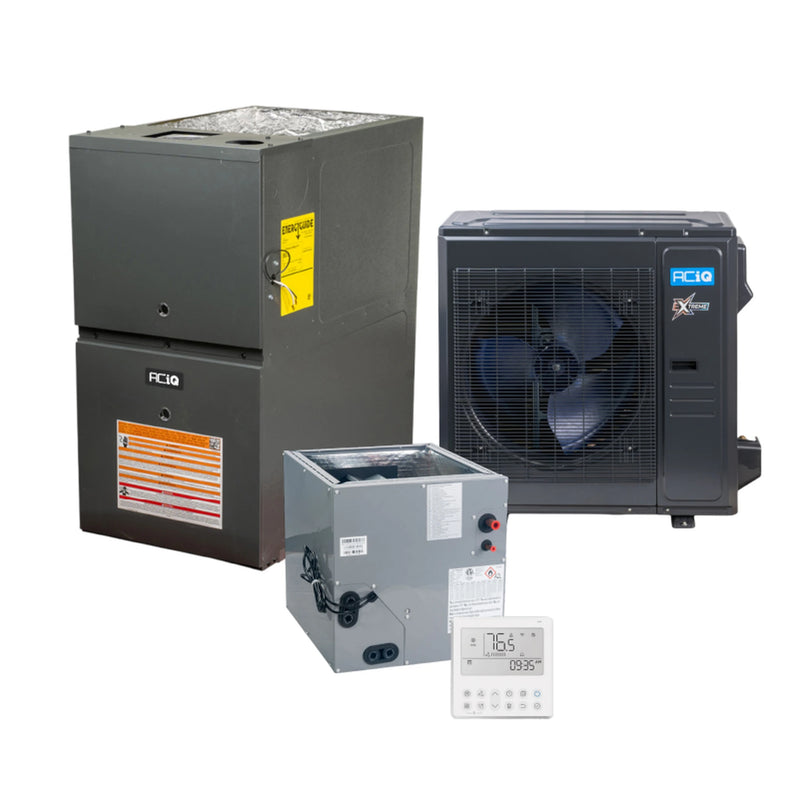

ACiQ 2 Ton 18.3 SEER2 80K BTU 80% AFUE 1200 CFM Gas Furnace Heat Pump System Upflow R454B

By ACiQ | Model: ACIQ-24-HPD / ACIQ-24-ACL-B / AQ-GR9T800803BX | ID: 902624
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$4,014.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Lowest Price Guarantee Find it cheaper? We'll match it. See terms
Speak with an Expert Call us at (833) 658-3387

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

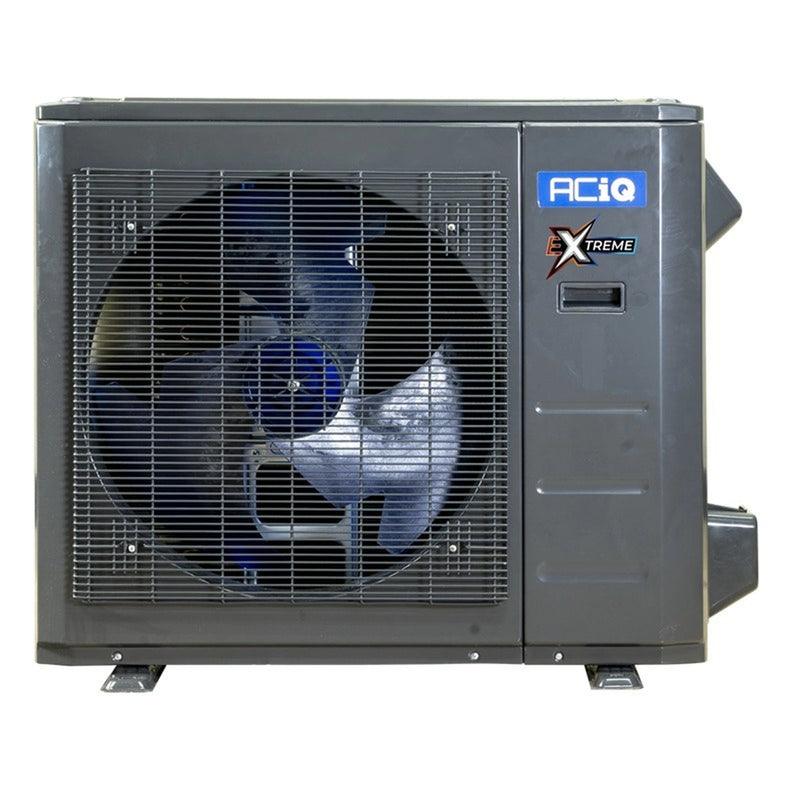

ACiQ 2 Ton 18.3 SEER2 Central Heat Pump Inverter Extreme Heat Series R454B ACIQ-24-HPD

The ACIQ-24-HPD is a 2 Ton single-stage heat pump condenser built around a scroll compressor, rated for 23,000 BTU of cooling and 24,000 BTU of heating at 18.3 SEER2 / 10.0 HSPF2. It ships pre-charged with enough R454B refrigerant for a 15-foot line set, so a straightforward line-set connection is all that's needed to bring the system online.

Key Features

  • 2 Ton Scroll Compressor - Single-stage cooling and heat pump heating rated at 18.3 SEER2.
  • 23,000 BTU Cooling / 24,000 BTU Heating - Sized for mobile and manufactured home split systems.
  • Factory Pre-Charged - Comes charged for a 15-foot line set, simplifying installation.
  • 208/230V, 1 Phase, 60 Hz Electrical - Runs on a standard single-phase circuit with a 109.13 lb cabinet.
  • R454B Refrigerant - Uses the lower-GWP refrigerant required for current equipment.
  • Heat Pump Operation - Provides both cooling and supplemental electric-backup-free heating down to roughly 35°F outdoor temperature.

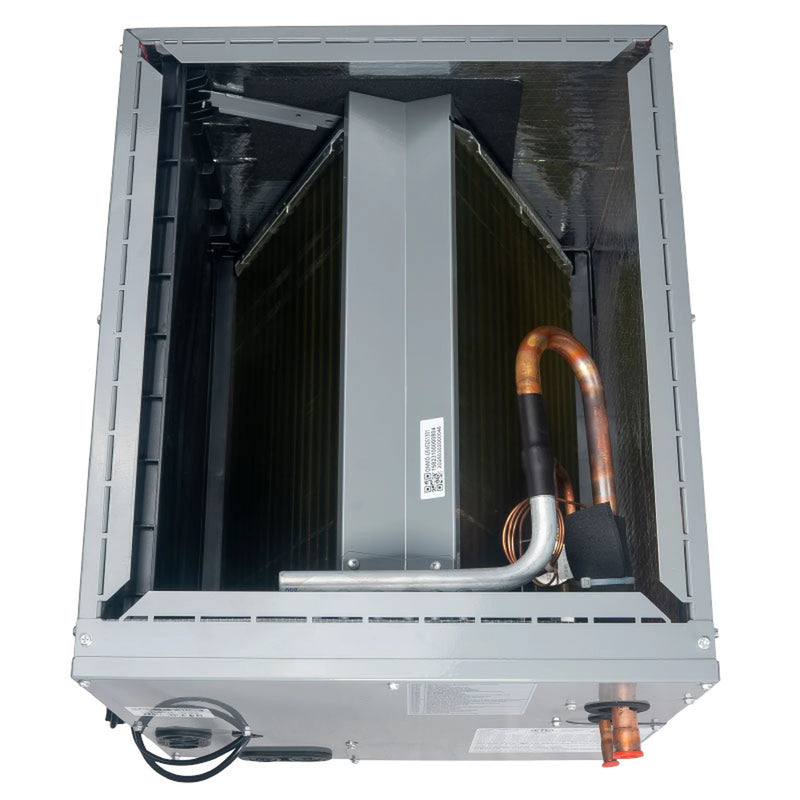

ACiQ 2.0 Ton Multi-Positional Cased A-Coil R454B ACIQ-24-ACL-B

The ACIQ-24-ACL-B is a 2 Ton multi-positional cased A-coil built with a factory-installed TXV kit, sized to pair with a compatible ACiQ heat pump condenser. Its cased, UL Listed cabinet installs upflow, downflow, or horizontal, making it a flexible fit alongside a matched furnace or air handler.

Key Features

  • 2 Ton Multi-Positional Design - Installs upflow, downflow, or horizontal.
  • Cased A-Coil - UL Listed cabinet, no field casing required.
  • Factory TXV Kit - Pre-installed for accurate refrigerant metering.
  • R454B Refrigerant - Matches the condenser's refrigerant charge.
  • 50 lb Cabinet - Compact footprint for closet or furnace-stack installations.

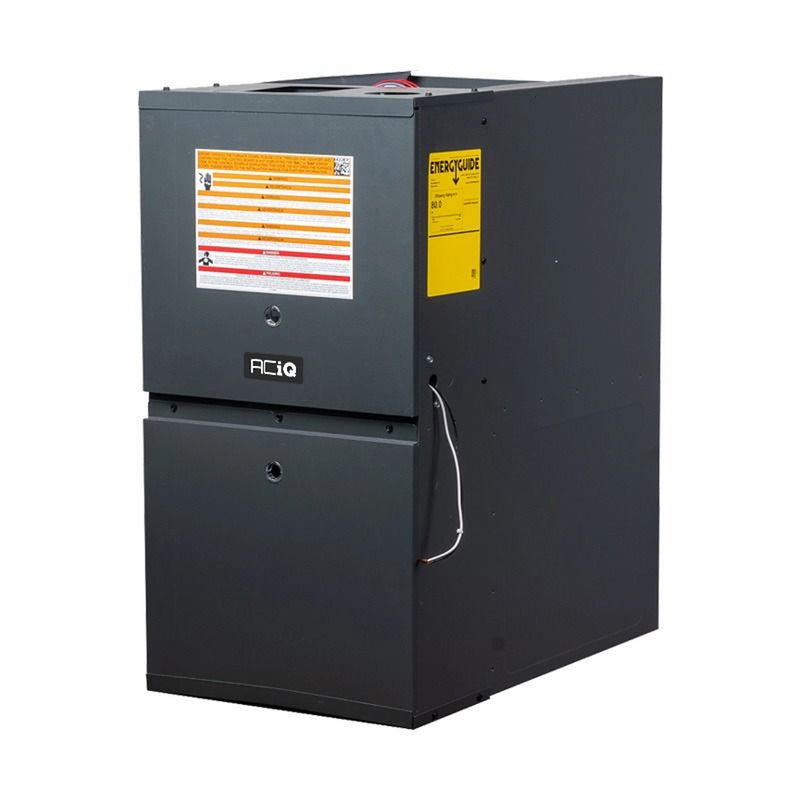

ACiQ 80,000 BTU 80% AFUE Low NOx Gas Furnace Upflow/Horizontal AQ-GR9T800803BX

The AQ-GR9T800803BX is a 80% AFUE natural gas furnace rated at 80,000 BTU of heat output, built for mobile and manufactured home installations. A 9 Speed ECM blower and metal exhaust flue round out a downflow cabinet designed to pair with a matching ACiQ heat pump condenser and coil.

Key Features

  • 80% AFUE Efficiency - Delivers 80,000 BTU of heat output for mobile home heating.
  • 9 Speed ECM - Multi-speed operation for consistent, quieter airflow.
  • Metal Exhaust Flue - Matched venting for this efficiency tier.
  • Downflow Cabinet - Built for mobile and manufactured home closet installations.
  • 118 lb Cabinet - Compact footprint alongside the matched coil and condenser.

Important Refrigerant Safety Notice: This system uses R454B, an A2L mildly flammable refrigerant. The condenser is matched with a compatible, leak-detection-equipped indoor coil/air handler to meet current safety standards. Please call 1-888-557-9206 with any compatibility questions before installation.

View More Heat Pump Systems

Specifications

ACiQ 2 Ton 18.3 SEER2 Central Heat Pump Inverter Extreme Heat Series R454B ACIQ-24-HPD

Brand ACiQ SKU ACIQ-24-HPD
Replaces ACiQ-24-HPB UPC 810175550558
Refrigerant Charge 74.08 oz. Weight (in lbs) 109.13
Cooling BTU 23,000 BTU Heating BTU 24,000 BTU
Maximum CFM 1765.7 Decibel Level (dBA) 60
Refrigerant R454B HSPF2 10.0
SEER2 (Efficiency) 18.3 EER2 11.7
Condenser Stages Variable Speed Compressor Type Rotary
Liquid Valve Size 3/8" Suction Valve Size 3/4"
Electrical 208/230V, 1 Phase, 60 Hz Max Breaker Size 20 Amps
Min. Breaker Size 19 Amps Tonnage 2 Ton
Min/Max Outdoor Temp for Heating -22°F to 75°F Min/Max Outdoor Temp for Cooling -22°F to 122°F
Height 26.50" Width 35.04"
Depth 13.46"

ACiQ 2.0 Ton Multi-Positional Cased A-Coil R454B ACIQ-24-ACL-B

Brand ACiQ SKU 24-ACL-B
Weight (in lbs) 50 Configuration Multi-Positional
Coil Style A-Coil Refrigerant R454B
Liquid Line Size 3/8" Suction Line Size 3/4"
Tonnage 2 Ton Certification UL Listed
Height 18" Width 17 1/2"
Depth 21"

ACiQ 80,000 BTU 80% AFUE Low NOx Gas Furnace Upflow/Horizontal AQ-GR9T800803BX

Brand ACiQ SKU AQ-GR9T800803BX
Weight (in lbs) 118 AHRI Certificate # 215358023
Configuration Upflow/Horizontal Exhaust Flue Metal
AFUE 80% Heating BTU 80,000 BTU
Blower 9 Speed ECM Maximum CFM 1200
Electrical 115V, 1 Phase, 60 Hz Max Breaker Size 15 Amps
Min. Breaker Size 11.3 Amps Low NOx Yes
Burner Stages Two Fuel Type Natural Gas / Propane
Height 33 3/8" Width 17.5"
Depth 28"
Warranty

ACiQ 2 Ton 18.3 SEER2 Central Heat Pump Inverter Extreme Heat Series R454B ACIQ-24-HPD

Warranty Type Parts Compressor
Standard Warranty 5 years 5 years
Registered Warranty 7 years 12 years

ACiQ 2.0 Ton Multi-Positional Cased A-Coil R454B ACIQ-24-ACL-B

Warranty Type Parts
Standard Warranty 7 years

ACiQ 80,000 BTU 80% AFUE Low NOx Gas Furnace Upflow/Horizontal AQ-GR9T800803BX

Coverage Term
Heat Exchanger Lifetime
Unit Replacement 10 years
Parts 10 years
Documents

ACiQ 2 Ton 18.3 SEER2 Central Heat Pump Inverter Extreme Heat Series R454B ACIQ-24-HPD

ACiQ-HPD-EHPD-ACB Brochure

System Quick Start Guide

2 Ton HPD/AHD Submittal

Condenser Installation Manual

Condenser Service Manual

ACiQ 24 Volt Wiring Notice

ACiQ High Efficiency Split Systems Warranty

ACiQ 2.0 Ton Multi-Positional Cased A-Coil R454B ACIQ-24-ACL-B

ACL-B Coil Quick Start Guide

Submittal w/ 24-HPD

Submittal w/ 18-HPD

Submittal w/ 18-EHPD

Submittal w/ 24-EHPD

ACL-B Coil Installation Manual

ACL-B Coil Service Manual

ACiQ 80,000 BTU 80% AFUE Low NOx Gas Furnace Upflow/Horizontal AQ-GR9T800803BX

Furnace Installation Manual

Furnace Specification Sheet

Furnace Warranty
