ACiQ-2413UDXBDE

ACiQ 2 Ton Mobile Home Coil Uncased Downflow Aluminum R410A

By ACiQ | Model: ACiQ-2413UDXBDE | ID: 902443
✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$552.00 + SHIPPING
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Lowest Price Guarantee Find it cheaper? We'll match it. See terms
Speak with an Expert Call us at (833) 658-3387
Product Details

ACiQ 2 Ton Mobile Home Coil Uncased Downflow Aluminum R410A ACiQ-2413UDXBDE

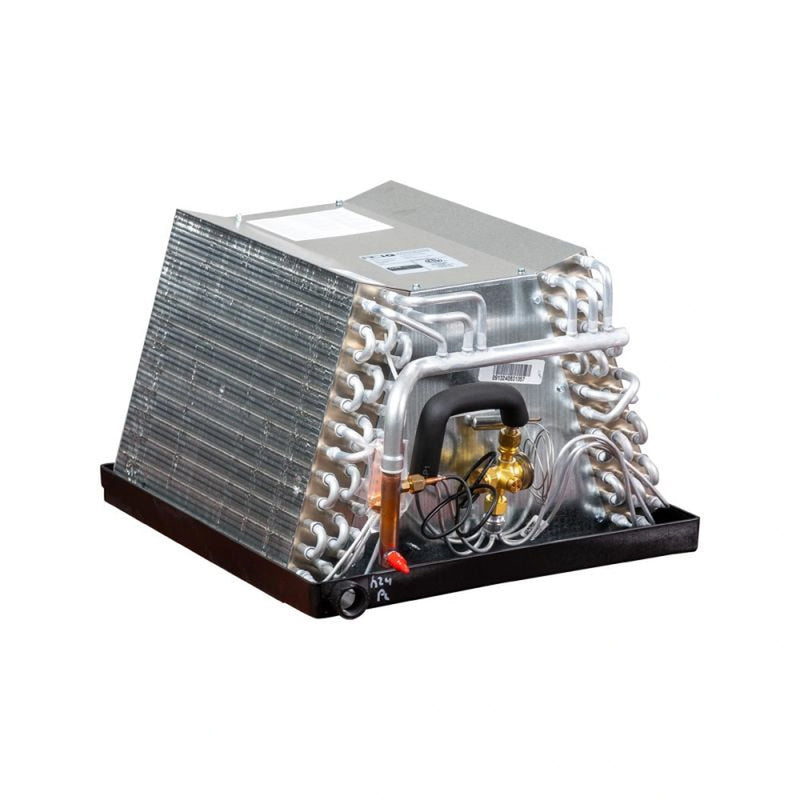

The ACiQ-2413UDXBDE is a 2 ton uncased downflow evaporator coil purpose-built for mobile and manufactured home split systems. Its rifled aluminum tubing and enhanced aluminum fins pair with a factory-installed TXV to meter refrigerant precisely across a wide range of load conditions, and the compact 13-1/2" x 17-3/4" x 19-5/8" cabinet is sized to slot into tight downflow closets without modification.

Because it ships uncased and accepts sweat fit/braze connections, installers can pair this coil with either an AC-only condenser or a heat pump condenser rated up to 2 tons, making it a flexible replacement option for aging mobile home systems. A heavy-duty polypropylene drain pan and included downflow plate kit round out an installation-friendly package backed by a 10 year limited parts warranty.

Key Features

  • Rifled Aluminum Coil - Enhanced aluminum tubing and fins maximize heat transfer while keeping the coil lightweight at just 18 lbs.
  • Factory TXV Metering - A pre-installed thermostatic expansion valve maintains accurate refrigerant metering across varying load conditions.
  • Uncased Downflow Design - Compact 13-1/2" x 17-3/4" x 19-5/8" cabinet fits standard mobile home downflow closets.
  • Universal Compatibility - Rated for use with any AC-only or heat pump condenser up to 2 tons, from any brand.
  • Braze/Sweat Connections - 3/8" liquid and 3/4" suction line connections support straightforward field brazing.
  • Left-Hand Refrigerant Connections - Standardized left-hand plumbing layout simplifies line set routing in tight closets.
  • Heavy-Duty Drain Pan - Polypropylene condensate pan resists corrosion and cracking better than lightweight stamped-metal pans.
  • Downflow Plate Kit Included - Ships with the plate kit needed for downflow orientation, so nothing extra to source before install.

View More Coils

Specifications

ACiQ 2 Ton Mobile Home Coil Uncased Downflow Aluminum R410A ACiQ-2413UDXBDE

Brand ACiQ SKU ACiQ-2413UDXBDE
Weight (in lbs) 18 Configuration Downflow
Refrigerant R410A Liquid Line 3/8"
Suction Line 3/4" Tonnage 2 Ton
Height 13 1/2" Width 17 3/4"
Depth 19 5/8"
Warranty

ACiQ 2 Ton Mobile Home Coil Uncased Downflow Aluminum R410A ACiQ-2413UDXBDE

Warranty Type Parts
Standard Warranty 10 years
Documents

ACiQ 2 Ton Mobile Home Coil Uncased Downflow Aluminum R410A ACiQ-2413UDXBDE

Specification Sheet

Installation Guide

Warranty Information
