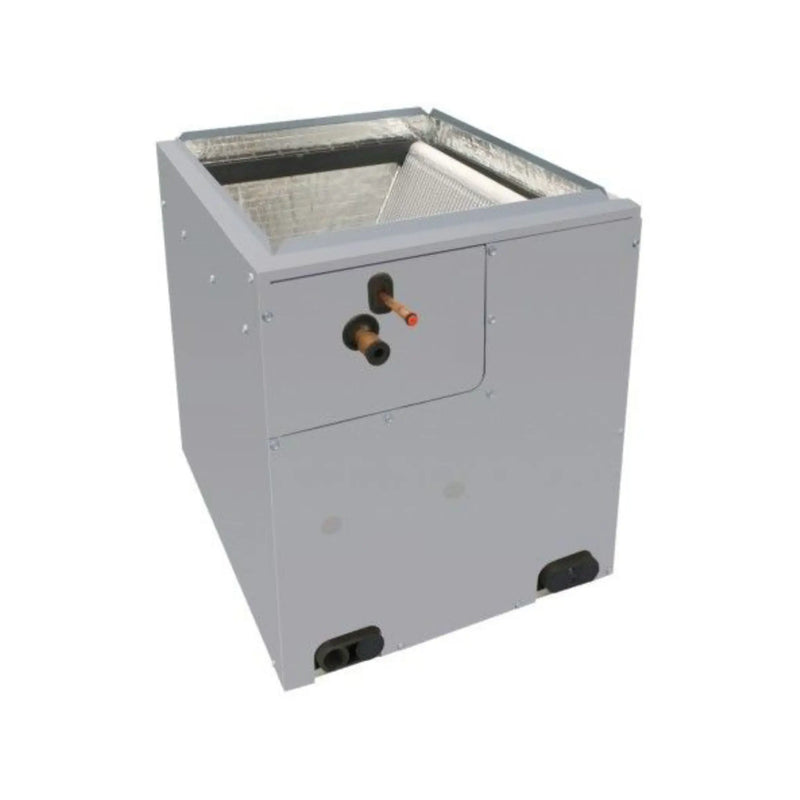

ACiQ 3.5 Ton Evaporator Coil Cased 17.5" Width Cabinet TXV Upflow/Downflow

By ACiQ | Model: EVD4X42M17A | ID: 089792
No Sales Tax - in most states excluding California
Free Shipping - on items over $1000
Satisfaction Guarantee - or return within 30 Days
Most Products In Stock - Call or Text (833) 658-3387 for availability
$899.00 + SHIPPING
Product Details

ACiQ 3.5 Ton Evaporator Coil Cased 17.5" Width Cabinet TXV Upflow/Downflow  EVD4X42M17A

The ACiQ EVD4X42M17A vertical coil is designed to deliver powerful cooling, rated for up to 3.5 tons, making it suitable for a wide range of heat pump applications. In certain configurations, the coil may exceed the size of its paired condenser, which enhances overall unit efficiency by improving heat exchange capabilities. ACiQ prides itself on providing high-quality HVAC systems with meticulous attention to all components. The EVD4X42M17A coil includes a factory-integrated TXV kit, crucial for optimizing energy efficiency by regulating refrigerant flow accurately. This ensures the unit operates efficiently while maintaining superior performance, meeting the demands of various environmental conditions reliably.

  • 3.5 ton vertical coil
  • Works in both upflow and downflow applications
  • Fully insulated, cased V-coil design for efficient heat transfer in a compact size
  • Factory-installed TXV kit for enhanced energy optimization
  • Corrosion-resistant drain pan designed with a Polybutylene Terephthalate (PBT) material for unsurpassed strength

View More Coils

Specifications

ACiQ 3.5 Ton Evaporator Coil Cased 17.5" Width Cabinet TXV Upflow/Downflow  EVD4X42M17A

Brand ACiQ SKU EVD4X42M17A
Tonnage 3.5 Ton Weight 38 lbs
Manufacturer ACiQ Replaces END4X42L17A
Carrier Equivalent CVPVA4217XMC Tempstar Equivalent END4X42L17A
Bryant Equivalent CNPVP4217ALA Configuration Upflow / Downflow
Refrigerant R410A Liquid Line 3/8"
Suction Line 7/8" Style V-Coil
Certification UL Listed Height 19 1/4"
Width 17 1/2" Depth 20 5/8"
Warranty

ACiQ 3.5 Ton Evaporator Coil Cased 17.5" Width Cabinet TXV Upflow/Downflow  EVD4X42M17A

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

ACiQ 3.5 Ton Evaporator Coil Cased 17.5" Width Cabinet TXV Upflow/Downflow  EVD4X42M17A

Installation Manual

Specification Sheets

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.
