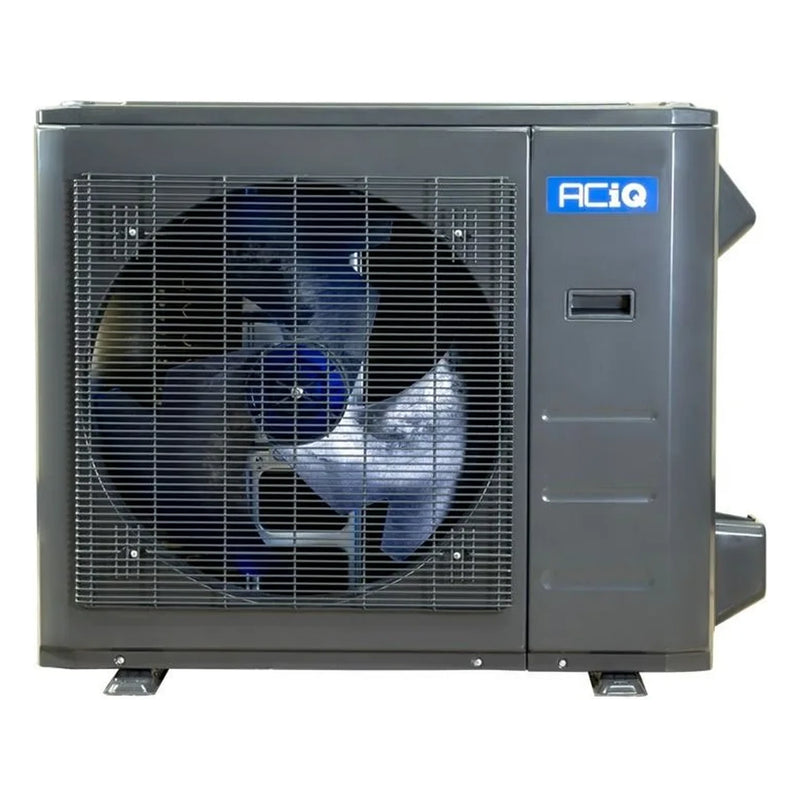

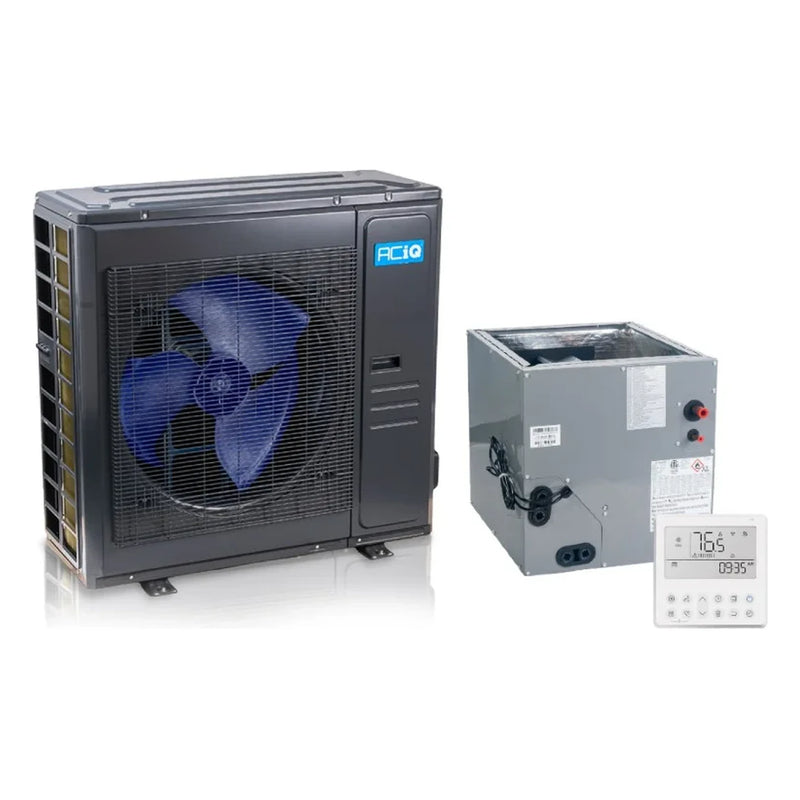

ACiQ 3 Ton 15.6 SEER2 Air Conditioner Condenser Inverter 230V R454B ACIQ-36-AC-B
The ACIQ-36-AC-B is a 3 ton, 15.6 SEER2 air conditioner condenser built around a variable-speed inverter compressor and R454B refrigerant. Instead of cycling on and off at full capacity, the compressor speeds up and slows down to track real-time demand, and ACiQ's Learning Condenser technology monitors indoor and outdoor temperature, duct pressure, and refrigerant temperature during startup to fine-tune performance going forward.
Rated at 34,000 BTU of cooling with up to 3,002 CFM airflow and as low as 58 dBA of operating sound, this condenser can also throttle down to roughly a 1 ton unit when full capacity isn't needed, making it a good seasonal AC-only option for homes that already have another primary heat source such as a boiler or fireplace. It runs on a 208/230V single-phase circuit and weighs 144.4 lbs.
Key Features
-
Variable-Speed Inverter Compressor - Self-adjusts BTU output to match real-time demand instead of cycling at full capacity.
-
Learning Condenser Technology - Monitors temperature, duct pressure, and refrigerant temperature during startup to optimize future performance.
-
15.6 SEER2 Efficiency - Rated 15.6 SEER2 / 10.2 EER2 for lower cooling operating costs.
-
34,000 BTU Cooling Capacity - Delivers 34,000 BTU of cooling with up to 3,002 CFM of airflow.
-
Quiet Operation - Runs as low as 58 dBA, noticeably quieter than a fixed-speed condenser at full load.
-
R454B Refrigerant - Uses the lower-GWP R454B refrigerant charge required for current equipment.
-
Down to 1 Ton Operation - Inverter design lets the compressor throttle down for seasonal AC-only supplemental cooling.
-
208/230V Single-Phase Electrical - Runs on a 208/230V 1-phase 60 Hz circuit with a 25 Amps max breaker.
Important Refrigerant Safety Notice: This unit uses R454B, an A2L mildly flammable refrigerant. It must be paired with a compatible, A2L-rated indoor coil or air handler equipped with proper leak detection. Please call 1-888-557-9206 with any compatibility questions before purchasing or installing.

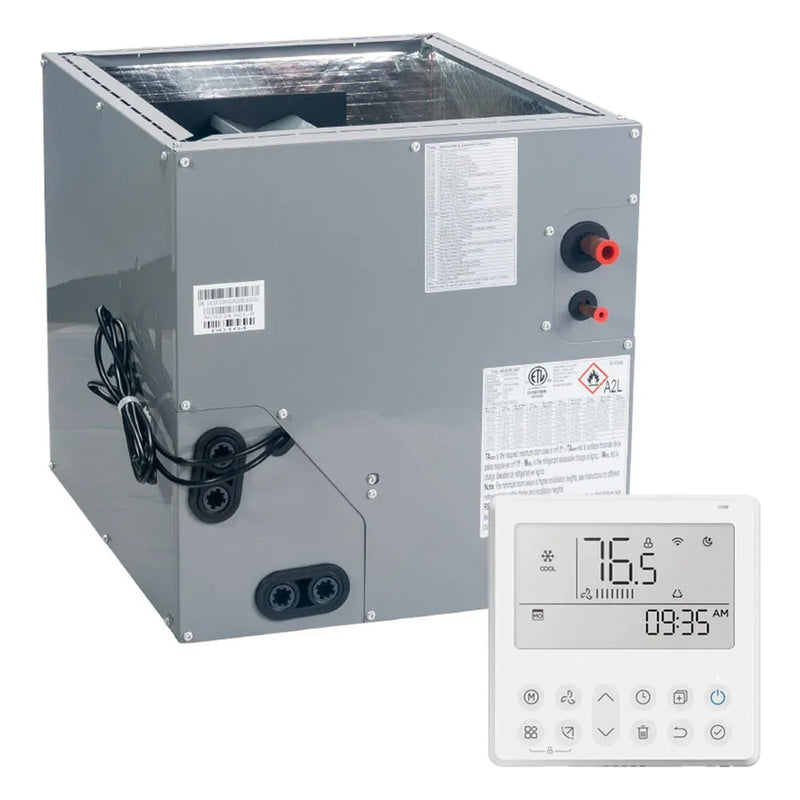

ACiQ 3 Ton Evaporator Coil Cased Multi-Positional With TXV 21" Width R454B ACIQ-36-ACL-B
The ACiQ ACIQ-36-ACL-B multi-positional A-coil provides reliable performance and energy efficiency for residential HVAC systems. Designed for flexible installation in upflow, downflow, or horizontal orientations, this 3 ton coil is compatible with both AC-only and heat pump condensers, with a factory-installed TXV kit for optimal energy efficiency.
Key Features and Benefits:
-
3 Ton Cooling Capacity
Ideal for medium to large residential applications.
-
Flexible Installation
Works in upflow, downflow, or horizontal system configurations for maximum versatility.
-
Compatible Condensers
Operates with both AC-only and heat pump condensers for system flexibility.
-
Factory-Installed TXV Kit
Enhances energy optimization and overall HVAC efficiency.
-
Durable, Compact Design
Sturdy construction ensures long-lasting performance while fitting standard system layouts.
Installation Requirements
This coil requires a compatible condenser and blower or furnace (sold separately) for proper operation, and should never be smaller than the paired condenser. Disclaimer: This coil is intended for use with R454B refrigerant systems, which are classified as A2L. To comply with safety standards, ensure the paired condenser and system include proper leak detection where required. Please call us at 1-888-557-9206 if you have any questions.
