ACIQ R5A5S36AKAWA EVM5X36M17A N80MSN0451714A

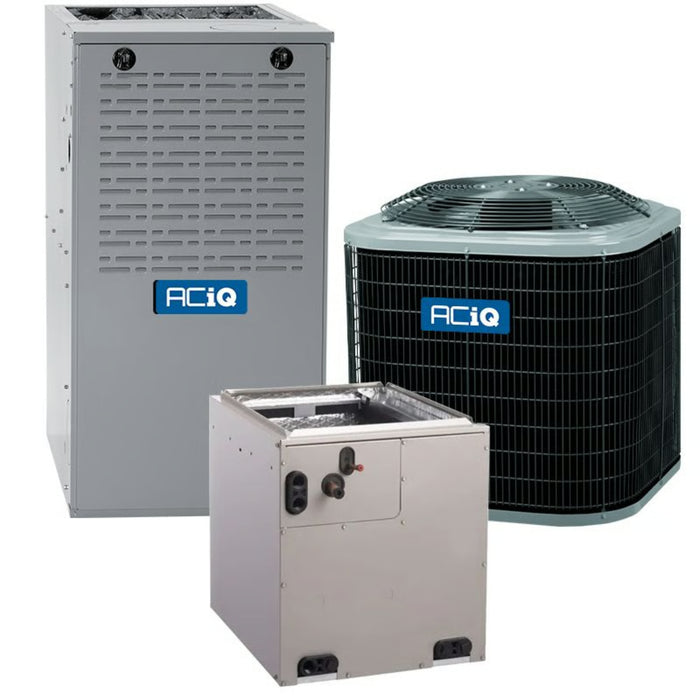

ACiQ 3 Ton 15 SEER2 AC & Gas Furnace 80% 45K BTU R454B

Name: ACiQ 3 Ton 15 SEER2 AC & Gas Furnace 80% 45K BTU R454B
Brand: ACiQ
SKU: R5A5S36AKAWA EVM5X36M17A N80MSN0451714A
Price: 4333.0 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: R5A5S36AKAWA EVM5X36M17A N80MSN0451714A | ID: 111331

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$4,333.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

ACiQ 3 Ton Air Conditioner Condenser 14.3 SEER2 R454B R5A5S36AKAWA

The ACiQ R5A5S36AKAWA is a reliable and efficient standard AC-only condenser designed to deliver consistent cooling comfort for medium to large homes. Offering a cost-effective yet higher-than-standard energy efficiency option, this 3 ton condenser is ideal for a wide range of residential air conditioning applications. With a 14.3 SEER2 rating and factory pre-charged refrigerant, it ensures optimal performance and easy installation right out of the box.

Product Features and Benefits:

3 Ton Cooling Capacity
Effectively cools medium to large-sized homes or larger zones in moderate climates, providing consistent and comfortable indoor temperatures.
14.3 SEER2 Energy Efficiency Rating
Delivers 5–7% greater energy savings compared to standard 13.4 SEER2 units, helping lower electricity costs and reduce energy consumption.
Single Stage Compressor
Provides steady and dependable cooling performance with a simplified, long-lasting design.
Pre-Charged with R454B Refrigerant
Factory-charged with eco-friendly R454B refrigerant for a 15-foot line set, allowing quick and accurate installation.
Filter Drier Included
Protects the system by filtering out moisture and debris during field installation, promoting long-term reliability.
Robust and Durable Cabinet
Constructed with reinforced corner posts and a protective inlet grille to safeguard internal components from weather and external damage.
10-Year Limited Parts Warranty
Backed by ACiQ’s 10-year parts warranty when installed to code and registered with a certified indoor coil, ensuring long-term peace of mind.
Pre-Charged for 15-Foot Line Set
Minimizes installation time and labor by eliminating the need for manual refrigerant charging. Additional refrigerant may be required for longer line sets.
Safety Compliance with R454B Refrigerant
Requires pairing with an R454B-compatible air handler or evaporator coil that includes a leakage detection system to meet safety regulations and preserve warranty coverage.

Important Information

This condenser is designed solely for cooling and must be paired with a compatible indoor coil or air handler. It does not offer heating capabilities.

View More Air Conditioner Condensers

ACiQ 3 Ton Evaporator Coil Cased 17.5" Width Multi-Position With TXV R454B EVM5X36M17A

The ACiQ multipoise evaporator coil with Power-V Technology is engineered for superior energy efficiency, durability, and flexible installation. Featuring a patent-pending V-coil design, this cased coil provides excellent heat transfer performance and is constructed from corrosion-resistant all-aluminum materials. Ideal for a wide range of HVAC applications, this evaporator coil is a smart choice for consistent indoor comfort and reduced energy consumption.

Product Features

Power-V Technology: Innovative V-shape coil design maximizes heat transfer efficiency
Cased Multi-Orientation Design: Supports upflow, downflow, and horizontal installation configurations for flexible system integration
Thermostatic Expansion Valve (TXV): Factory-installed TXV metering device optimizes refrigerant control for enhanced system efficiency
All-Aluminum Coil: Lightweight and corrosion-resistant design ensures long-lasting performance and improved system efficiency
Environmentally Friendly: Fully recyclable aluminum construction aligns with sustainable design principles
Durable Drain Pan: Corrosion-resistant Polybutylene Terephthalate (PBT) drain pan offers exceptional strength and helps prevent mold and bacteria buildup
Fully Insulated Cabinet: Reduces energy loss and protects internal components for extended equipment life
10-Year Parts Limited Warranty: Warranty coverage available upon product registration

Installation & Serviceability

ACiQ’s Power-V evaporator coil is built with the installer and service technician in mind. Its multipoise capability ensures compatibility with a wide variety of HVAC systems, while enhanced serviceability features allow for quicker, easier maintenance. This coil is an excellent solution for homeowners and professionals seeking reliable performance, energy savings, and installation flexibility.

View More Coils

ACiQ 80% AFUE Gas Furnace 44000 BTU Single Stage Multi-Positional 115V N80MSN0451714A

The N80MSN furnace series represents ACiQ's standard 80% efficiency furnace, designed for homes equipped with a metal exhaust flue. For homes with a plastic or PVC flue, it is recommended to opt for a furnace with 90% or higher AFUE, such as the N96MSN series.

80% Gas Furnace
18-speed constant torque ECM blower motor
Single stage gas valve
Multi-positional – Can be installed in upflow, downflow, or horizontal orientations
Field-convertible to propane with an optional propane conversion kit
On board self-diagnostics

View More Furnaces

Specifications

ACiQ 3 Ton Air Conditioner Condenser 14.3 SEER2 R454B R5A5S36AKAWA

Brand	ACiQ	SKU	R5A5S36AKAWA
Refrigerant Charge	15'	Weight	176
Manufacturer	ACiQ	Replaces	R4A5S
Product Features	New Refrigerant Compliant
Cooling BTU	36,000	Maximum CFM	3800
Decibel Level (dBA)	72	Motor RPM	825
Horsepower	1/10 HP	Refrigerant	R454B
SEER2	14.3	Condenser Stages	Single Stage
Compressor Type	Scroll	Liquid Valve Size	3/8"
Suction Valve Size	3/8" 7/8"	Electrical	208 / 230 V. 1 Phase 60 Hz
Tonnage	3 Ton	Height	31 11/16"
Width	31 3/16"	Depth	31 3/16"
Warranty	10 Year Parts Limited Warranty with Online Registration

ACiQ 3 Ton Evaporator Coil Cased 17.5" Width Multi-Position With TXV R454B EVM5X36M17A

Brand	ACiQ	SKU	EVM5X36M17A
Weight	42	Manufacturer	ACiQ
Replaces	EVM4X	Configuration	Multi-Positional
Refrigerant	R454B	Tonnage	3 Ton
Liquid Line	3/8"	Suction Line	3/4"
Style	V-Coil	Connection	Sweat
Certification	UL and c-UL Listed	Metering Device	TXV
Warranty	10 Year Parts Limited Warranty with Online Registration
Height	19 7/16"	Width	17 1/2"
Depth	20 5/8"	Coil Type	Aluminum V-Coil

ACiQ 80% AFUE Gas Furnace 44000 BTU Single Stage Multi-Positional 115V N80MSN0451714A

Brand	ACiQ	Model #	N80MSN0451714A
Weight (in lbs)	119	AHRI Certificate Number	213146204
Exhaust Flue Requirement	Metal	Replaces	N80ESN0451712A
Furnace Efficiency / AFUE	80%	Equivalent	Carrier Equivalent: 58SB0A045E17--12 Tempstar Equivalent: TN80ESN0451712A Bryant Equivalent: 810SA36045E17
Heating BTU	44,000	Blower Motor	Multi-Speed ECM
Drive Type	Direct	Maximum CFM	1215
Motor RPM	1050	Horsepower	.5 HP
Configuration	Upflow/Downflow/Horizontal	Max Breaker Size	15 Amps
Connection	1/2" NPT	Maximum Inlet Pressure	13.6"wc
Burner Stages	Single	Ignition Type	Direct Ignition with Silicon Nitride Hot Surface Ignitor
Fuel Type	Propane, Natural Gas	Certification	AHRI Certified
Height	33 1/3"	Width	17 1/2"
Depth	29"

Warranty

ACiQ 3 Ton Air Conditioner Condenser 14.3 SEER2 R454B R5A5S36AKAWA

Warranty Type	Parts
Registered Warranty	10 Years

ACiQ 3 Ton Evaporator Coil Cased 17.5" Width Multi-Position With TXV R454B EVM5X36M17A

Warranty Type	Parts
Registered Warranty	10 Years Limited

ACiQ 80% AFUE Gas Furnace 44000 BTU Single Stage Multi-Positional 115V N80MSN0451714A

Warranty Type	Residential	Multi-Family	Commercial
Standard Warranty	5 year parts	5 year parts	5 year parts
Registered Warranty	10 year parts	10 year parts	5 year parts

Documents

ACiQ 3 Ton Air Conditioner Condenser 14.3 SEER2 R454B R5A5S36AKAWA

R5A5S Owner's Manual

R5A5S Specifications Sheet

ACiQ Warranty

ACiQ 3 Ton Evaporator Coil Cased 17.5" Width Multi-Position With TXV R454B EVM5X36M17A

EVM5X Specifications Sheet

EVM5X Installation Manual

ACiQ Evaporator Coil Warranty

ACiQ 80% AFUE Gas Furnace 44000 BTU Single Stage Multi-Positional 115V N80MSN0451714A

Installation Manual

Specification Sheets

Owner's Manual

Service Manual

Wiring Diagram

Application Guidelines

Warranty Information
