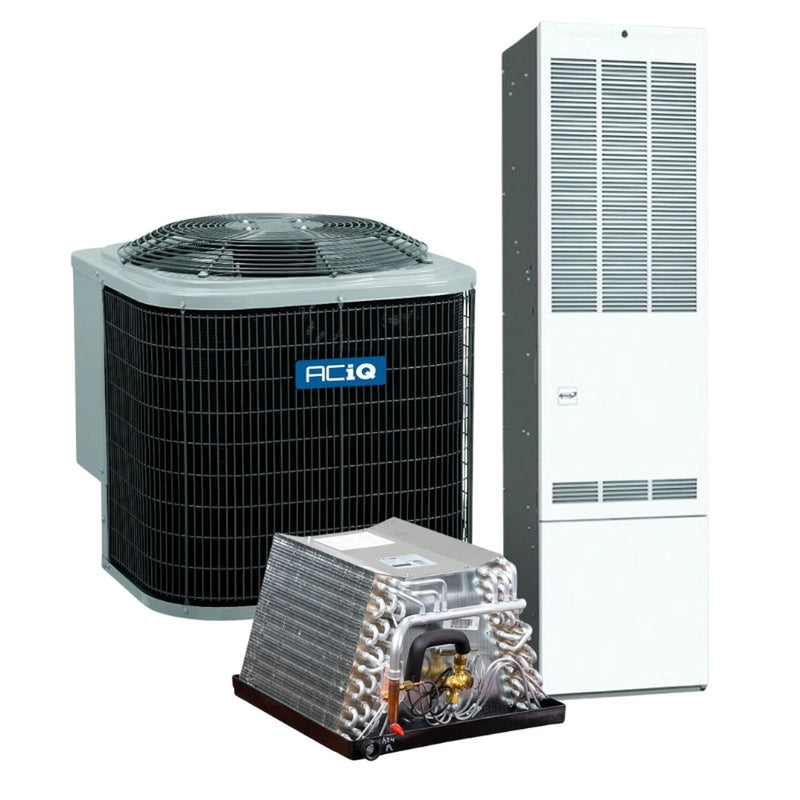

ACiQ 3 Ton 56K BTU 80% AFUE Gas Furnace Mobile Home Heat Pump System R454B

By ACiQ | Model: R5H5S36AKAAA-MH / ACIQ-MH42AU3VWEC / MG1E-B056F1ABM1 | ID: 902588
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$5,464.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Lowest Price Guarantee Find it cheaper? We'll match it. See terms
Speak with an Expert Call us at (833) 658-3387

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

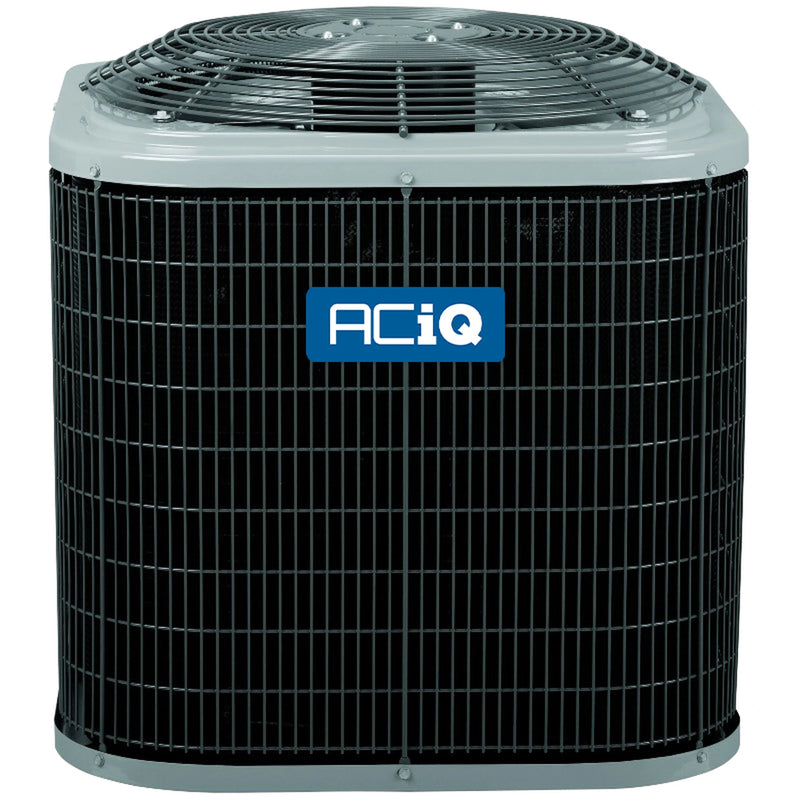

ACiQ 3 Ton 14.3 SEER2 Mobile Home Heat Pump Condenser Single Stage R454B R5H5S36AKAAA-MH

The R5H5S36AKAAA-MH is a 3 Ton single-stage heat pump condenser built around a scroll compressor, rated for 36,000 BTU of cooling and 36,000 BTU of heating at 14.3 SEER2 / 7.5 HSPF2. It ships pre-charged with enough R454B refrigerant for a 15-foot line set, so a straightforward line-set connection is all that's needed to bring the system online.

Key Features

  • 3 Ton Scroll Compressor - Single-stage cooling and heat pump heating rated at 14.3 SEER2.
  • 36,000 BTU Cooling / 36,000 BTU Heating - Sized for mobile and manufactured home split systems.
  • Factory Pre-Charged - Comes charged for a 15-foot line set, simplifying installation.
  • 208/230V, 1 Phase, 60 Hz Electrical - Runs on a standard single-phase circuit with a 192 lb cabinet.
  • R454B Refrigerant - Uses the lower-GWP refrigerant required for current equipment.
  • Heat Pump Operation - Provides both cooling and supplemental electric-backup-free heating down to roughly 35°F outdoor temperature.

ACiQ 3.5 Ton Uncased Downflow Mobile Home Coil R454B ACIQ-MH42AU3VWEC

The ACIQ-MH42AU3VWEC is a 3.5 Ton downflow evaporator coil purpose-built for mobile and manufactured home split systems, sized to pair with its matching ACiQ heat pump condenser in this system.

Key Features

  • 3.5 Ton Downflow Coil - Sized for mobile and manufactured home installations.
  • R454B Refrigerant - Matches the condenser's refrigerant charge.
  • 28 lb Cabinet - Compact footprint for tight downflow closets.
  • Downflow Plate Kit Included - Nothing extra to source before installation.

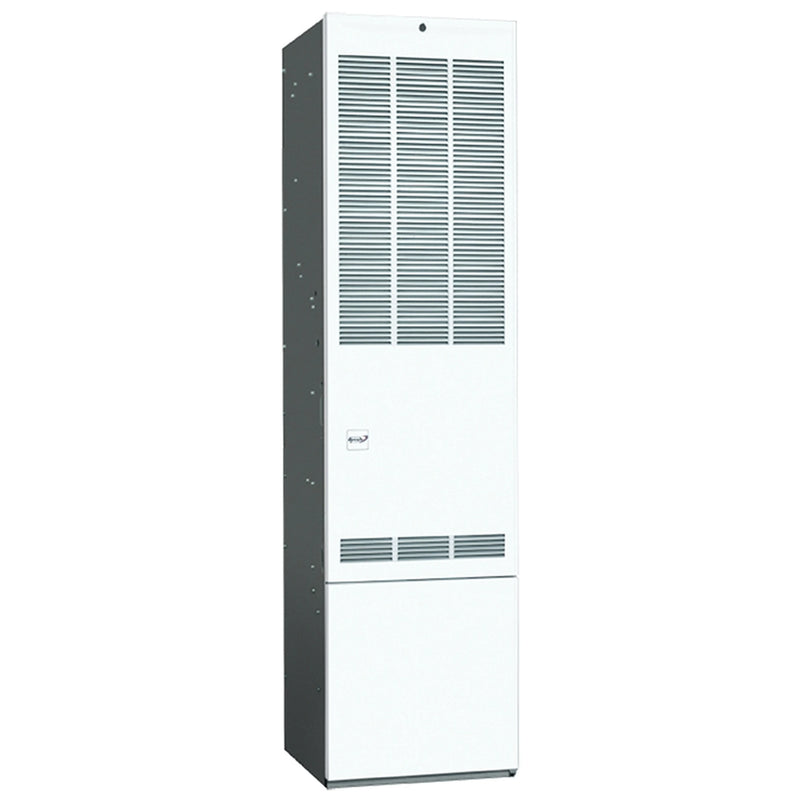

Style Crest-Revolv 56,000 BTU 80% AFUE Mobile Home Gas Furnace MG1E-B056F1ABM1

The MG1E-B056F1ABM1 is a 80% AFUE natural gas furnace rated at 56,000 BTU of heat output, built for mobile and manufactured home installations. A ECM Multi Speed blower and metal exhaust flue round out a downflow cabinet designed to pair with a matching ACiQ heat pump condenser and coil.

Key Features

  • 80% AFUE Efficiency - Delivers 56,000 BTU of heat output for mobile home heating.
  • ECM Multi Speed - Multi-speed operation for consistent, quieter airflow.
  • Metal Exhaust Flue - Matched venting for this efficiency tier.
  • Downflow Cabinet - Built for mobile and manufactured home closet installations.
  • 167 lb Cabinet - Compact footprint alongside the matched coil and condenser.

Important Refrigerant Safety Notice: This system uses R454B, an A2L mildly flammable refrigerant. The condenser is matched with a compatible, leak-detection-equipped indoor coil/air handler to meet current safety standards. Please call 1-888-557-9206 with any compatibility questions before installation.

View More Heat Pump Systems

Specifications

ACiQ 3 Ton 14.3 SEER2 Mobile Home Heat Pump Condenser Single Stage R454B R5H5S36AKAAA-MH

Brand ACiQ SKU R5H5S36AKAAA-MH
Replaces R4H5S UPC 634707054273
Refrigerant Charge 15' Weight (in lbs) 192
Cooling BTU 36,000 BTU Heating BTU 36,000 BTU
Maximum CFM 3500 Decibel Level (dBA) 76
Motor RPM 825 Horsepower 1/4 HP
Refrigerant R454B HSPF2 7.5
SEER2 (Efficiency) 14.3 Condenser Stages Single Stage
Compressor Type Scroll Liquid Valve Size 3/8"
Suction Valve Size 3/4" Electrical 208/230V, 1 Phase, 60 Hz
Max Breaker Size 30 Amps Min. Breaker Size 19.2 Amps
Tonnage 3 Ton Height 31 11/16"
Width 31 3/16" Depth 31 3/16"

ACiQ 3.5 Ton Uncased Downflow Mobile Home Coil R454B ACIQ-MH42AU3VWEC

Brand ACiQ SKU ACIQ-MH42AU3VWEC
Weight (in lbs) 28 Configuration Downflow
Refrigerant R454B Tonnage 3.5 Ton
Height 19 1/2" Width 17 3/4"
Depth 19 5/8"

Style Crest-Revolv 56,000 BTU 80% AFUE Mobile Home Gas Furnace MG1E-B056F1ABM1

Brand Style Crest-Revolv SKU MG1E-B056F1ABM1
Replaces MG1E-056B UPC 689526849142
Weight (in lbs) 167 Exhaust Flue Metal
AFUE 80% Heating BTU 56,000 BTU
Blower ECM Multi Speed Configuration Downflow
Electrical 120V, 1 Phase Max Breaker Size 15 Amps
Burner Stages Single Fuel Type Natural Gas
Height 76" Width 19.75"
Depth 23.75"
Warranty

ACiQ 3 Ton 14.3 SEER2 Mobile Home Heat Pump Condenser Single Stage R454B R5H5S36AKAAA-MH

Warranty Type Parts
Standard Warranty 10 years

ACiQ 3.5 Ton Uncased Downflow Mobile Home Coil R454B ACIQ-MH42AU3VWEC

Warranty Type Parts
Standard Warranty 10 years

Style Crest-Revolv 56,000 BTU 80% AFUE Mobile Home Gas Furnace MG1E-B056F1ABM1

Warranty Type Parts Heat Exchanger
Standard Warranty 2 years 10 years
Documents

ACiQ 3 Ton 14.3 SEER2 Mobile Home Heat Pump Condenser Single Stage R454B R5H5S36AKAAA-MH

Owners Manual

Spec Sheet

Warranty

ACiQ 3.5 Ton Uncased Downflow Mobile Home Coil R454B ACIQ-MH42AU3VWEC

Installation Guide

Specifications Sheet

Warranty Information

Style Crest-Revolv 56,000 BTU 80% AFUE Mobile Home Gas Furnace MG1E-B056F1ABM1

Installation Manual

Spec Sheet

Owner's Manual

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.

Reviews

Product Q&A

Have a specific question?

Be the first to ask a question about this product.

Our Real Customer Reviews

See what our customers have said about us.

Customers rate us 4.8/5 based on 34 reviews.
Connect with HVAC Store Support
