ACIQ-EFS1020FD-MH

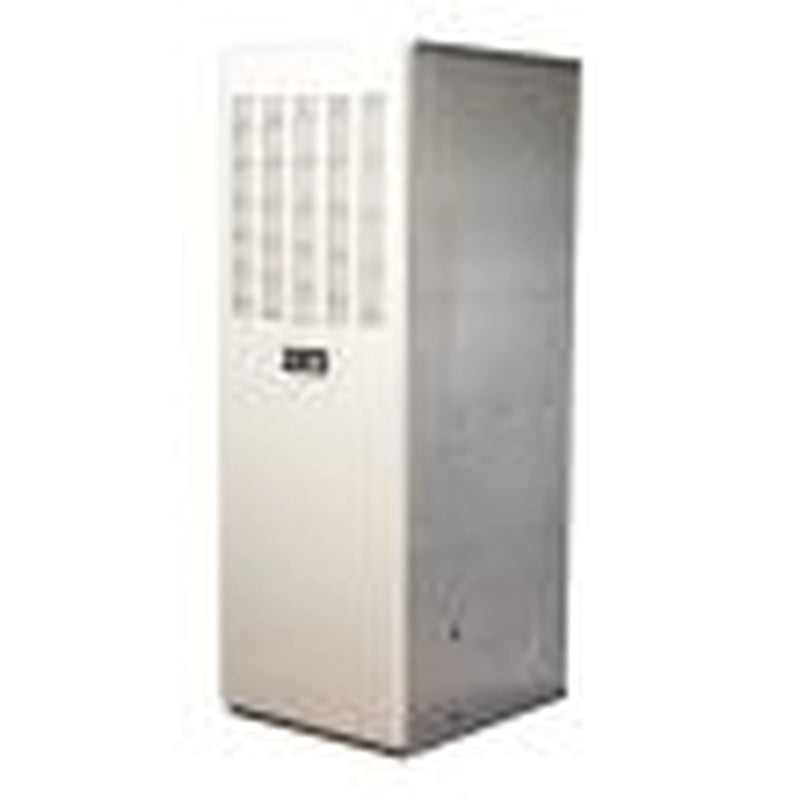

ACiQ 32,800 BTU Mobile Home Electric Furnace Downflow 10KW R454B & R32

By ACiQ | Model: ACIQ-EFS1020FD-MH | ID: 902447
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,299.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Lowest Price Guarantee Find it cheaper? We'll match it. See terms
Speak with an Expert Call us at (833) 658-3387

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

ACiQ 32,800 BTU Mobile Home Electric Furnace Downflow 10KW R454B & R32 ACIQ-EFS1020FD-MH

The ACiQ-EFS1020FD-MH is a 10 kilowatt electric downflow furnace rated at 32,800 BTU, built specifically for mobile and manufactured home heating applications. An ECM multi-speed blower moves up to 1,760 CFM through the direct-drive 3/4 HP motor, and factory-installed sequencers with temperature limit switches keep operation safe and efficient on a 240V single-phase circuit.

Field technicians will appreciate the front-accessible controls and a disconnect that doesn't protrude through the wall panel, both of which make routine service quicker. The washable/replaceable filter keeps ongoing maintenance costs low, and heat modules can be added or serviced in the field using molex plug connections or ordered pre-installed from the factory.

Key Features

  • 10kW / 32,800 BTU Output - Delivers reliable electric resistance heat sized for mobile and manufactured home applications.
  • ECM Multi-Speed Blower - Direct-drive 3/4 HP ECM motor moves up to 1,760 CFM for even heat distribution.
  • Safety Sequencers & Limit Switches - Factory-installed controls stage heating elements safely and protect against overheating.
  • Molex Plug Modules - Heat modules install or service in the field via molex connections, or ship factory-installed.
  • Front-Access Controls - Service points are accessible from the front of the cabinet for faster maintenance.
  • Flush-Mounted Disconnect - The electrical disconnect does not protrude through the wall panel, keeping installs tidy.
  • Washable Filter - Easy-to-clean or replace filter helps lower long-term maintenance costs.
  • 240V Single-Phase Electrical - Runs on a standard 240V 1-phase circuit with a 60 amp max breaker.

View More Furnaces

Specifications

ACiQ 32,800 BTU Mobile Home Electric Furnace Downflow 10KW R454B & R32 ACIQ-EFS1020FD-MH

Brand ACiQ SKU ACIQ-EFS1020FD-MH
Weight (in lbs) 115 UPC 605468123041
Heating BTU 32,800 BTU Blower Motor ECM Multi Speed
Drive Type Direct Maximum CFM 1760
Horsepower 3/4 HP Electric Heat 10 Kilowatts
Configuration Downflow Electrical 240v 1 Phase
Max Breaker Size 60 Amp Fuel Type Electric
Height 57" Width 19 3/4"
Depth 24 1/2"
Warranty

ACiQ 32,800 BTU Mobile Home Electric Furnace Downflow 10KW R454B & R32 ACIQ-EFS1020FD-MH

Warranty Type Parts
Standard Warranty 5 years
Documents

ACiQ 32,800 BTU Mobile Home Electric Furnace Downflow 10KW R454B & R32 ACIQ-EFS1020FD-MH

Specification Sheet

Installation Guide

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.
