ACiQ ES-36Z-M5C ACIQ-06W-HH-MD-3 ACIQ-09W-HH-MD ACIQ-18W-HH-MD

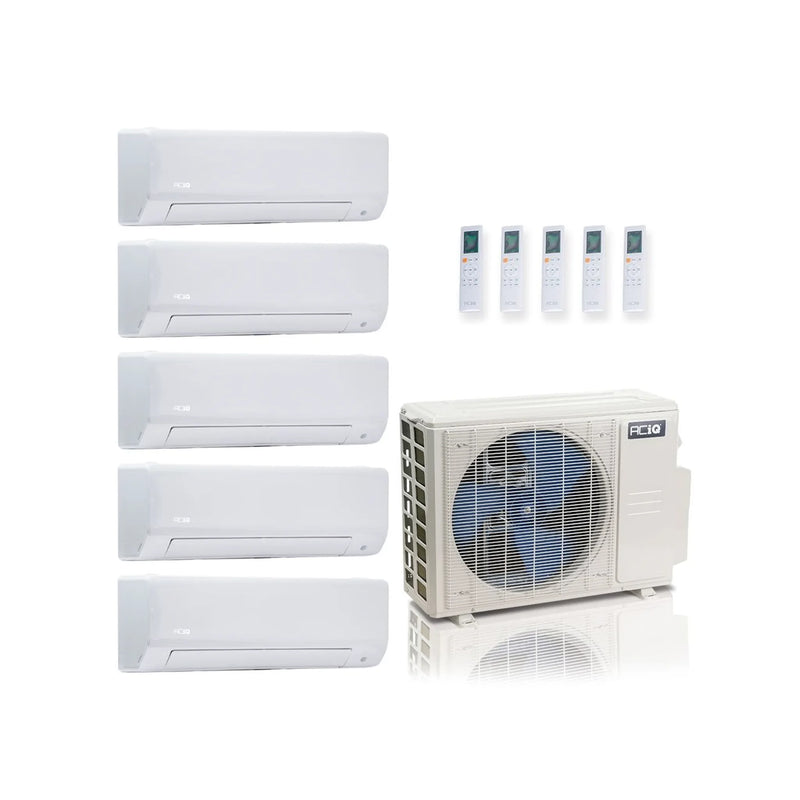

ACiQ 36,000 BTU 24 SEER2 5-Zone Mini Split System R454B 230V 6+6+6+9+18

Name: ACiQ 36,000 BTU 24 SEER2 5-Zone Mini Split System R454B 230V 6+6+6+9+18
Brand: ACiQ
SKU: ES-36Z-M5C ACIQ-06W-HH-MD-3 ACIQ-09W-HH-MD ACIQ-18W-HH-MD
Price: 5981.97 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ES-36Z-M5C ACIQ-06W-HH-MD-3 ACIQ-09W-HH-MD ACIQ-18W-HH-MD | ID: 88608

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$5,981.97 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B ES-36Z-M5C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-36Z-M5C condenser allows up to 5 air handlers to run off a single unit, saving space outdoors and ensuring comfort indoors.

Key Features

36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
Designed to function with up to 5 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

ACiQ's ES-36Z-M5C condenser is designed to support multiple air handlers, providing efficient heating and cooling with a high SEER2 rating. This system allows for individual temperature control in each room or zone, saving energy and money over time. Professional installation is recommended for optimal performance.

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi ACIQ-06W-HH-MD x3

The 6,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone or Platinum Single Zone condenser to create a highly efficient Hyper Heat system. It features adaptive technology to monitor and maintain your ideal temperature regardless of external weather conditions.

Key Features

6,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-06W-HH-MD air handler features a soft LED display for easy monitoring and error code display. It is WiFi ready and can be controlled via smart devices from anywhere. Please note that installation with a condenser and other equipment is required for proper functionality.

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

The 9,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler is designed to work seamlessly with any ACiQ Multizone condenser or the Platinum Single Zone condenser, creating a highly efficient Hyper Heat system. Equipped with adaptive technology, this air handler constantly monitors and maintains your ideal temperature, providing comfort regardless of the weather outside.

Key Features

9,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-09W-HH-MD air handler features a soft LED display for easy monitoring and self-diagnosing control board for error notifications. With WiFi capabilities, you can control your home's heating and cooling remotely using smart devices. Please note that installation with a condenser and other equipment is required for proper functionality.

ACiQ 18,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-18W-HH-MD

Experience platinum performance with the ACiQ Platinum air handler, designed to work seamlessly with ACiQ Multizone or Platinum Single Zone condensers for optimal efficiency. This air handler is perfect for small to medium-sized rooms, utilizing adaptive technology to ensure your ideal temperature is maintained regardless of external weather conditions.

Key Features

18,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-18W-HH-MD air handler features a soft LED display for easy monitoring and error code display. Control your heating and cooling system remotely with the included smart remote or via WiFi using the Net Home Plus app, Amazon Alexa, or Google Assistant.

View More 5 Zone Mini Splits

Specifications

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B ES-36Z-M5C

Brand	ACiQ	SKU	ES-36Z-M5C
Replaces	ES-36Z-M4B	Refrigerant Charge	123'
Weight	180.120000	AHRI Certificate Number	216032382
HSPF2	9.5	Cooling BTU	36000 BTU
Heating BTU	37000 BTU	Maximum CFM	2148
Decibel Level (dBA)	64.5	Electric Heat	Heat Pump
Energy Star	Yes	Refrigerant	R454B
SEER2	24	Compressor Type	Rotary
Liquid Line	1/4" (5)	Suction Line	3/8" (4); 1/2" (1)
Electrical	208/230V 1 Phase 60 Hz	Electric Phase Filter	Single Phase
Max Breaker Size	35 A	Min. Breaker Size	30.5 A
Tonnage	3 Ton	BTU/Tonnage	36,000 BTU/3 Ton
Mini Split Type	Wall Mounted	Zone Compatibility	Multi Zone
Ambient Temperature Range	-13 ~ 122	Height	31.89"
Width	37.24"	Depth	16.14"

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi ACIQ-06W-HH-MD x3

Brand	ACiQ	SKU	ACIQ-06W-HH-MD
Cooling BTU	6000 BTU	Heating BTU	7000 BTU
Maximum CFM	364.71	Decibel Level (dBA)	As low as 23
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60 Hz	Electric Phase Filter	Single Phase
BTU/Tonnage	6,000 BTU/0.5 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Height	11.76"
Width	33.40"	Depth	9.18"

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

Brand	ACiQ	SKU	ACIQ-09W-HH-MD
Cooling BTU	9000 BTU	Heating BTU	10000 BTU
Maximum CFM	335.29	Decibel Level (dBA)	38
Electric Heat	Heat Pump	Refrigerant	R454B
SEER	23-24	SEER2	22.3
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60 Hz	BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Wall Mounted	Zone Compatibility	Multi Zone
Length	33.40"	Height	11.76"
Depth	9.18"

ACiQ 18,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-18W-HH-MD

Brand	ACiQ	SKU	ACIQ-18W-HH-MD
Product Features	Low Ambient Heating, WiFi	Cooling BTU	18000 BTU
Heating BTU	18000 BTU	Maximum CFM	523.53
Decibel Level (dBA)	46.5	Electric Heat	Heat Pump
Refrigerant	R454B	SEER	18-20
SEER2	22.3	Liquid Line	1/4"
Suction Line	1/2"	Electrical	208/230V 1 Phase 60 Hz
BTU/Tonnage	18,000 BTU/1.5 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Length	40.06"
Height	12.60"	Depth	9.72"

Warranty

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B ES-36Z-M5C

Warranty Type	Parts
Standard Warranty	7 year parts
Registered Warranty	12 year compressor, 7 year parts

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi ACIQ-06W-HH-MD x3

Warranty Type	Parts
Standard Warranty	7 year parts
Registered Warranty	12 year compressor

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

Warranty Type	Parts
Standard Warranty	7 year parts
Registered Warranty	12 year compressor, 7 year parts

ACiQ 18,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-18W-HH-MD

Warranty Type	Parts
Standard Warranty	7 year parts
Registered Warranty	12 year compressor
