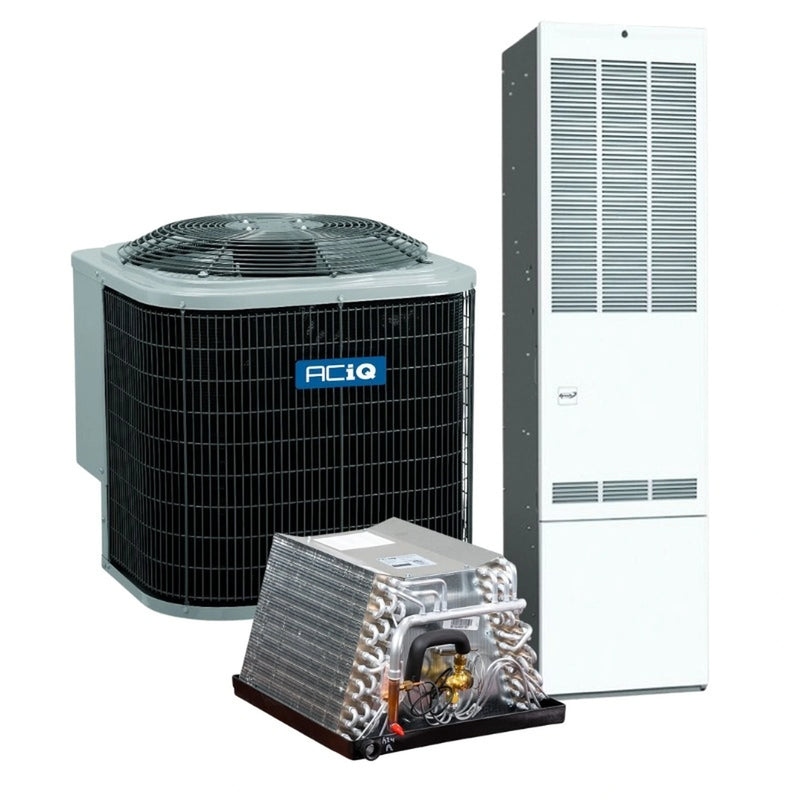

ACiQ 4 Ton 72K BTU 95% AFUE Gas Furnace Mobile Home Heat Pump System R454B

By ACiQ | Model: R5H5S48AKAAA-MH / ACIQ-MH59AU4VWEC / MG2R-B072F1ACM1 | ID: 902544
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$7,319.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Lowest Price Guarantee Find it cheaper? We'll match it. See terms
Speak with an Expert Call us at (833) 658-3387

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

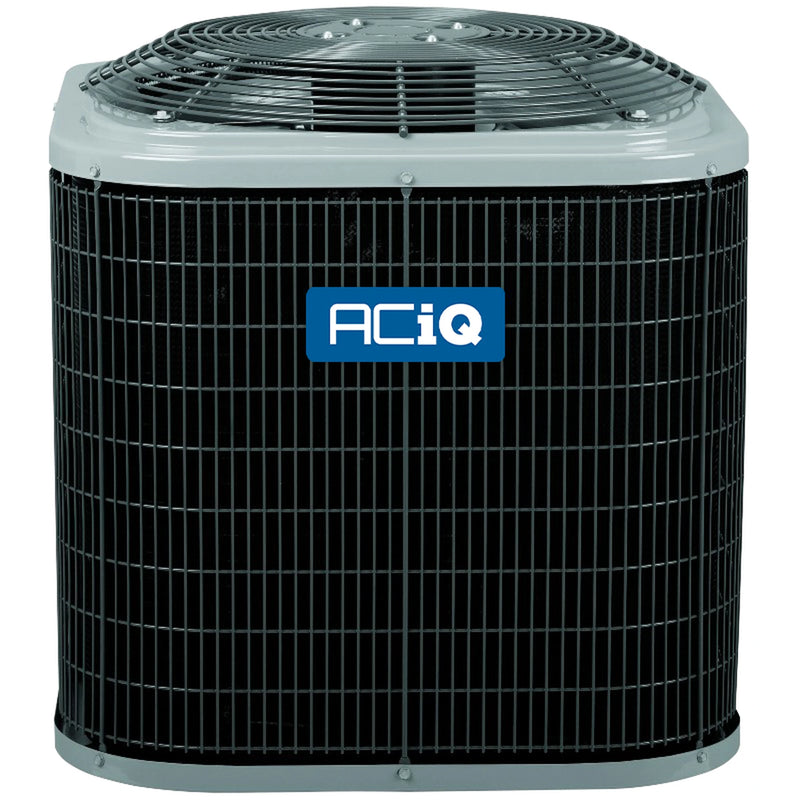

ACiQ 4 Ton 14.3 SEER2 Mobile Home Heat Pump Condenser Single Stage R454B R5H5S48AKAAA-MH

The R5H5S48AKAAA-MH is a 4 Ton single-stage heat pump condenser built around a scroll compressor, rated for 48,000 BTU of cooling and 48,000 BTU of heating at 14.3 SEER2 / 7.5 HSPF2. It ships pre-charged with enough R454B refrigerant for a 15-foot line set, so a straightforward line-set connection is all that's needed to bring the system online.

Key Features

  • 4 Ton Scroll Compressor - Single-stage cooling and heat pump heating rated at 14.3 SEER2.
  • 48,000 BTU Cooling / 48,000 BTU Heating - Sized for mobile and manufactured home split systems.
  • Factory Pre-Charged - Comes charged for a 15-foot line set, simplifying installation.
  • 208/230V, 1 Phase, 60 Hz Electrical - Runs on a standard single-phase circuit with a 252 lb cabinet.
  • R454B Refrigerant - Uses the lower-GWP refrigerant required for current equipment.
  • Heat Pump Operation - Provides both cooling and supplemental electric-backup-free heating down to roughly 35°F outdoor temperature.

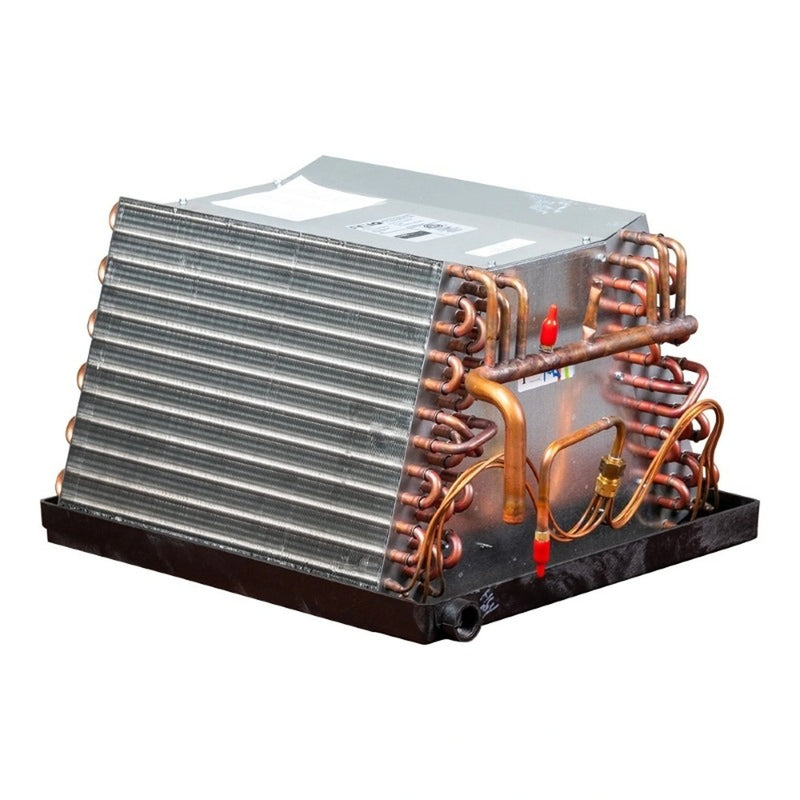

ACiQ 5 Ton Uncased Downflow Mobile Home Coil R454B ACIQ-MH59AU4VWEC

The ACIQ-MH59AU4VWEC is a 5 Ton downflow evaporator coil purpose-built for mobile and manufactured home split systems, sized to pair with its matching ACiQ heat pump condenser in this system.

Key Features

  • 5 Ton Downflow Coil - Sized for mobile and manufactured home installations.
  • R454B Refrigerant - Matches the condenser's refrigerant charge.
  • 55 lb Cabinet - Compact footprint for tight downflow closets.
  • Downflow Plate Kit Included - Nothing extra to source before installation.

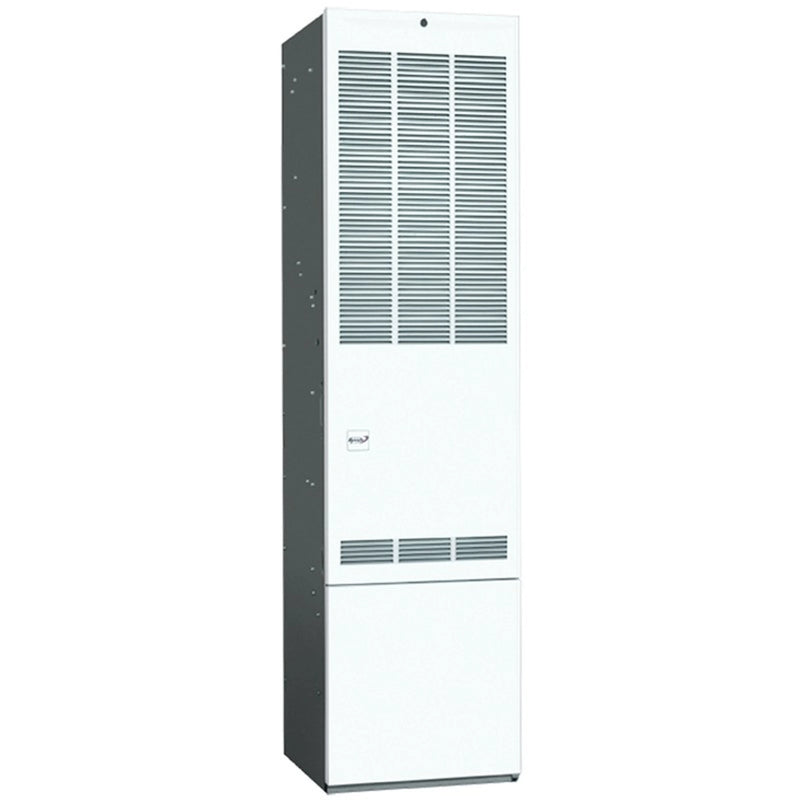

Style Crest-Revolv 72,000 BTU 95% AFUE Mobile Home Gas Furnace MG2R-B072F1ACM1

The MG2R-B072F1ACM1 is a 95% AFUE natural gas furnace rated at 72,000 BTU of heat output, built for mobile and manufactured home installations. A ECM Multi Speed blower and plastic/pvc exhaust flue round out a downflow cabinet designed to pair with a matching ACiQ heat pump condenser and coil.

Key Features

  • 95% AFUE Efficiency - Delivers 72,000 BTU of heat output for mobile home heating.
  • ECM Multi Speed - Multi-speed operation for consistent, quieter airflow.
  • Plastic/PVC Exhaust Flue - Matched venting for this efficiency tier.
  • Downflow Cabinet - Built for mobile and manufactured home closet installations.
  • 170 lb Cabinet - Compact footprint alongside the matched coil and condenser.

Important Refrigerant Safety Notice: This system uses R454B, an A2L mildly flammable refrigerant. The condenser is matched with a compatible, leak-detection-equipped indoor coil/air handler to meet current safety standards. Please call 1-888-557-9206 with any compatibility questions before installation.

View More Heat Pump Systems

Specifications

ACiQ 4 Ton 14.3 SEER2 Mobile Home Heat Pump Condenser Single Stage R454B R5H5S48AKAAA-MH

Brand ACiQ SKU R5H5S48AKAAA-MH
Replaces R4H5S UPC 634707229756
Refrigerant Charge 15' Weight (in lbs) 252
Cooling BTU 48,000 BTU Heating BTU 48,000 BTU
Maximum CFM 3800 Decibel Level (dBA) 76
Motor RPM 1110 Horsepower 1/4 HP
Refrigerant R454B HSPF2 7.5
SEER2 (Efficiency) 14.3 Condenser Stages Single Stage
Compressor Type Scroll Liquid Valve Size 3/8"
Suction Valve Size 7/8" Electrical 208/230V, 1 Phase, 60 Hz
Max Breaker Size 50 Amps Min. Breaker Size 29.4 Amps
Tonnage 4 Ton Height 38 7/16"
Width 31 3/16" Depth 31.2"

ACiQ 5 Ton Uncased Downflow Mobile Home Coil R454B ACIQ-MH59AU4VWEC

Brand ACiQ SKU ACIQ-MH59AU4VWEC
Weight (in lbs) 55 Configuration Downflow
Refrigerant R454B Tonnage 5 Ton
Height 19 1/2" Width 17 3/4"
Depth 19 5/8"

Style Crest-Revolv 72,000 BTU 95% AFUE Mobile Home Gas Furnace MG2R-B072F1ACM1

Brand Style Crest-Revolv SKU MG2R-B072F1ACM1
Replaces MG2R-072FB, MG2R-072FC UPC 689526849333
Weight (in lbs) 170 Exhaust Flue Plastic/PVC
AFUE 95% Heating BTU 72,000 BTU
Blower ECM Multi Speed Decibel Level (dBA) 75
Configuration Downflow Electrical 120V, 1 Phase
Max Breaker Size 15 Amps Burner Stages Single
Fuel Type Natural Gas Height 76"
Width 19.75" Depth 23.75"
Warranty

ACiQ 4 Ton 14.3 SEER2 Mobile Home Heat Pump Condenser Single Stage R454B R5H5S48AKAAA-MH

Warranty Type Parts
Standard Warranty 10 years

ACiQ 5 Ton Uncased Downflow Mobile Home Coil R454B ACIQ-MH59AU4VWEC

Warranty Type Parts
Standard Warranty 10 years

Style Crest-Revolv 72,000 BTU 95% AFUE Mobile Home Gas Furnace MG2R-B072F1ACM1

Warranty Type Parts Heat Exchanger
Standard Warranty 2 years 10 years
Documents

ACiQ 4 Ton 14.3 SEER2 Mobile Home Heat Pump Condenser Single Stage R454B R5H5S48AKAAA-MH

Owners Manual

Spec Sheet

Warranty

ACiQ 5 Ton Uncased Downflow Mobile Home Coil R454B ACIQ-MH59AU4VWEC

Installation Guide

Specifications Sheet

Warranty Information

Style Crest-Revolv 72,000 BTU 95% AFUE Mobile Home Gas Furnace MG2R-B072F1ACM1

Installation Manual

Spec Sheet

Owner's Manual
