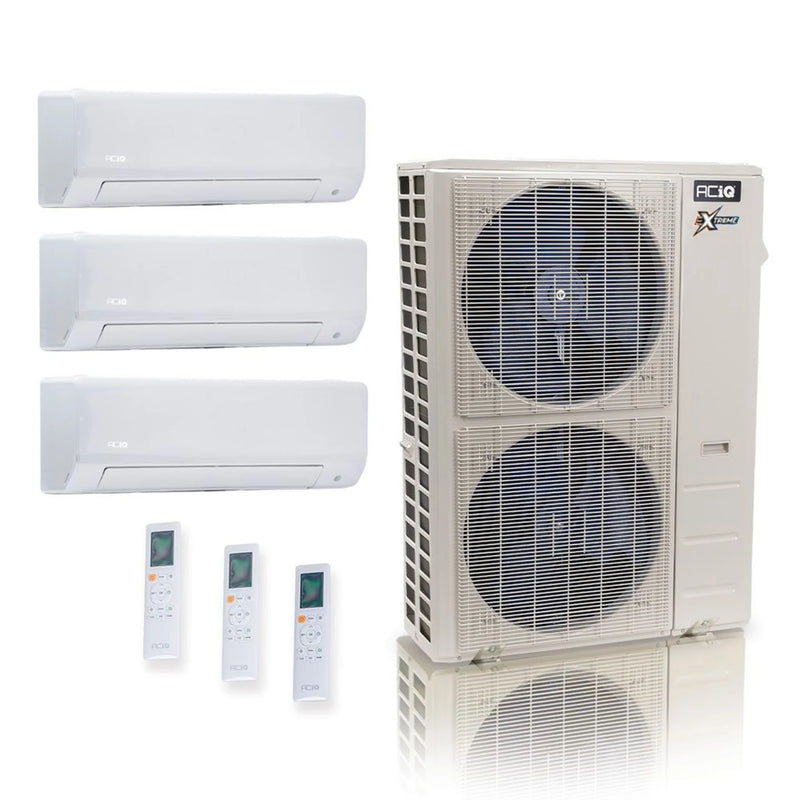

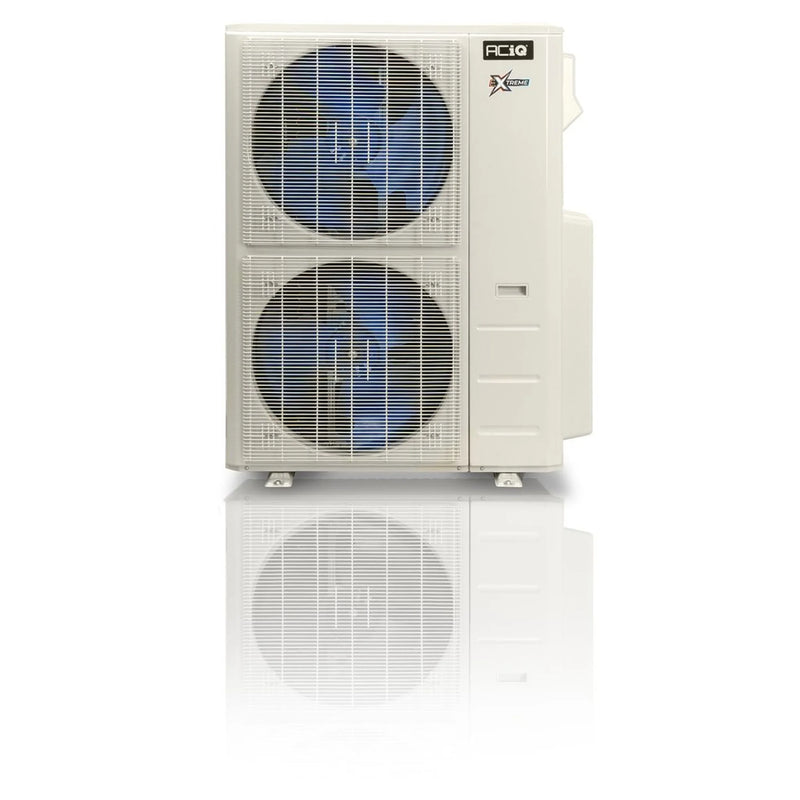

ACiQ 48,000 BTU SEER2 23 Multi Zone Condenser Extreme Series R454B 230V ACIQ-48Z-HH-M6C
The ACiQ-48Z-HH-M6C is a high-performance, energy-efficient solution for adaptive heating and cooling in homes and commercial spaces. This advanced 48,000 BTU, 23 SEER heat pump condenser is engineered to support up to 6 air handlers, delivering precise temperature control and comfort across multiple zones while saving space and reducing energy costs. Whether you're combating freezing winter conditions or blazing summer heat, this system is designed to perform efficiently in extreme temperatures, keeping your environment comfortable year-round.
Product Features:
-
48,000 BTU, 23 SEER Multi-Zone Heat Pump Condenser – Provides powerful and efficient heating and cooling for up to 6 air handlers.
-
Supports Up to 6 Air Handlers – Perfect for homes or buildings with multiple rooms, allowing independent temperature control for each zone.
-
Efficient Cooling in Extreme Conditions – Operates in outdoor temperatures ranging from -22°F to 122°F, ensuring reliable performance in any climate.
-
Efficient Heating in Cold Temperatures – Works efficiently in outdoor temperatures as low as -22°F and up to 75°F, providing warmth during harsh winter months.
-
Integrated Extreme Heat Technology – Features a base pan heater for additional protection and reliable operation in extreme weather.
-
Gold Fin Condenser Coil Protection – The Gold Fin full-protection coating enhances the durability and longevity of the condenser coil, preventing corrosion.
-
Ultra-Quiet Operation – Designed to operate quietly, even at the highest workload, ensuring a peaceful environment.
-
Intelligent Adaptive Inverter Technology – Adjusts automatically to deliver the optimal amount of heating or cooling, improving energy efficiency and comfort.
-
High-Efficiency Design – 23 SEER rating offers maximum energy savings and lower operating costs over the life of the unit.
-
Flexible Temperature Control – Zone-specific temperature settings allow you to heat or cool each room individually, turning off unused areas for additional energy savings.
-
Professional Installation Required – Pre-charged condenser, but requires professional installation for refrigerant management and line connections.
The ACiQ-48Z-HH-M6C is designed to be a cost-effective, efficient, and versatile solution for those seeking advanced climate control. By choosing this model, you're investing in a system that ensures year-round comfort while saving on energy costs and reducing your carbon footprint.
Note: Installation materials such as line sets, control wire, drain hose, whip, and disconnect are not included but can be purchased separately.

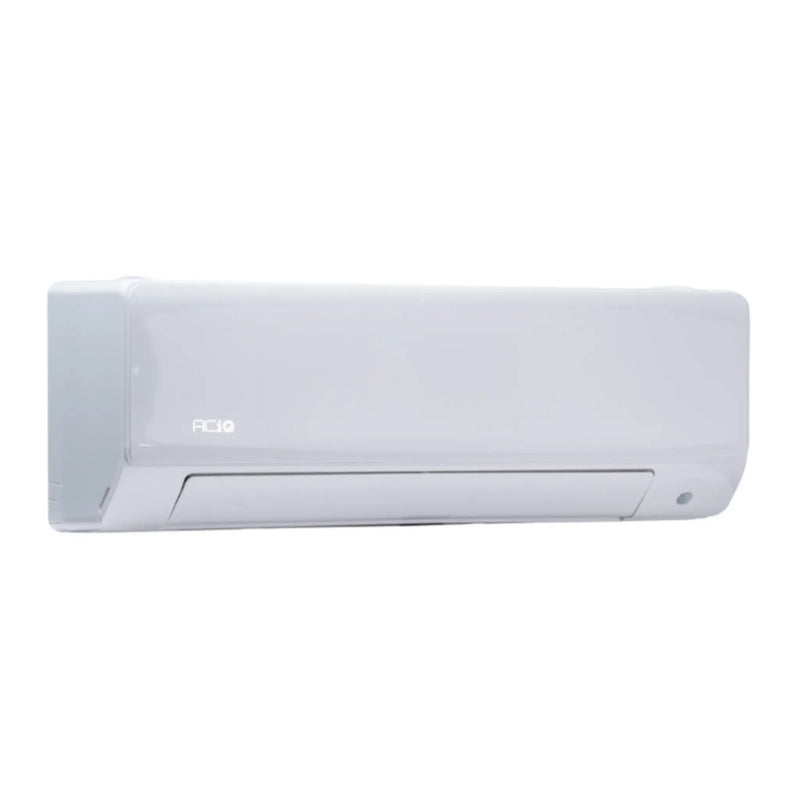

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD
The 9,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser to create an efficient Hyper Heat system. Equipped with adaptive technology, it monitors and maintains your ideal temperature regardless of external weather conditions.
Key Features
- 9,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa
- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
The ACiQ-09W-HH-MD air handler features a soft LED display for easy monitoring, self-diagnosing control board with error code display, and a smart remote with LCD display. It is WiFi ready and compatible with Amazon Alexa and Google Assistant for convenient control.
ACiQ 12K BTU Platinum Air Handler Wall Mounted Mini Split Multi Zone ACIQ-12W-HH-MD
The ACiQ 12,000 BTU wall-mounted air handler delivers powerful, whisper-quiet performance for both single and multizone mini split systems. Compatible with ACiQ’s Multizone and Platinum Series condensers, this unit offers reliable heating and cooling for small to medium spaces. Equipped with smart technology, this unit features intelligent temperature control, an onboard diagnostic LED display, and full integration with WiFi, Alexa, and Google Home for remote access. Whether you're upgrading a zone or building a new system, this wall mount is a dependable choice for comfort and energy efficiency year-round.
Key Features
- 12,000 BTU wall-mounted ductless air handler – ideal for small to medium rooms
- WiFi enabled for smartphone control via Net Home Plus, Alexa, and Google Home
- Compatible with ACiQ Multizone and Platinum Hyper Heat single zone condensers
- Quiet operation – as low as 19.5 dB for undisturbed comfort
- Advanced display panel with real-time temperature and diagnostic alerts
- Enhanced modes: Dry Mode, Intelligent Sleep Mode, and Power Save Mode
- Smart remote control included with LCD feedback screen
- Quick installation with flexible refrigerant line and drain exit
- Energy-efficient R454B refrigerant for reduced environmental impact
Ideal for home offices, bedrooms, or additions, this unit brings precise comfort control and flexible compatibility into any ductless system design.
ACiQ 18,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-18W-HH-MD
The 18,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. Equipped with adaptive technology, it constantly monitors and maintains your ideal temperature regardless of the weather outside.
Key Features
- 18,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa
- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
The ACiQ-18W-HH-MD air handler features a soft LED display for easy monitoring, self-diagnosing control board for error notifications, and smart remote compatibility. With WiFi capabilities, you can control your home's heating and cooling from anywhere using a smart device. Please note that installation with a condenser and other equipment is required, available at an additional cost if not included in the bundle.
