ACIQ-EFS1520FD-MH

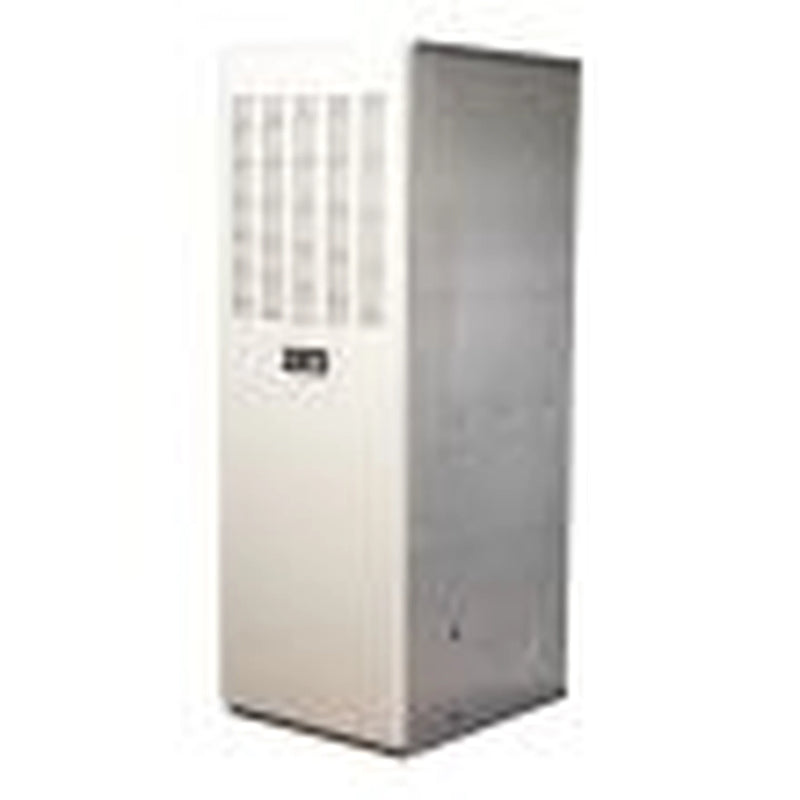

ACiQ 49,100 BTU Mobile Home Electric Furnace Downflow R454B & R32 2-3 Ton

By ACiQ | Model: ACIQ-EFS1520FD-MH | ID: 902448
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,299.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Lowest Price Guarantee Find it cheaper? We'll match it. See terms
Speak with an Expert Call us at (833) 658-3387

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

ACiQ 49,100 BTU Mobile Home Electric Furnace Downflow R454B & R32 2-3 Ton ACIQ-EFS1520FD-MH

The ACiQ-EFS1520FD-MH is a 15 kilowatt electric downflow furnace rated at 49,100 BTU, sized to pair with 2 to 3 ton mobile home air conditioning systems. An ECM multi-speed blower delivers up to 1,710 CFM through a direct-drive 3/4 HP motor, and the unit draws power through a 240V single-phase circuit protected by dual breakers.

Like the rest of the ACiQ mobile home furnace lineup, this model uses factory-installed sequencers and temperature limit switches for safe, efficient staged heating, with heat modules that install via molex plug in the field or ship pre-installed from the factory. Front-accessible controls and a flush-mounted disconnect keep routine service simple.

Key Features

  • 15kW / 49,100 BTU Output - Delivers electric resistance heat sized for 2 to 3 ton mobile home AC systems.
  • ECM Multi-Speed Blower - Direct-drive 3/4 HP ECM motor moves up to 1,710 CFM for even heat distribution.
  • Dual Circuit Breakers - Ships with a 60 amp and a 25 amp breaker to protect the staged heating elements.
  • Safety Sequencers & Limit Switches - Factory-installed controls stage heating elements safely and protect against overheating.
  • Molex Plug Modules - Heat modules install or service in the field via molex connections, or ship factory-installed.
  • Front-Access Controls - Service points are accessible from the front of the cabinet for faster maintenance.
  • Flush-Mounted Disconnect - The electrical disconnect does not protrude through the wall panel, keeping installs tidy.
  • Washable Filter - Easy-to-clean or replace filter helps lower long-term maintenance costs.

View More Furnaces

Specifications

ACiQ 49,100 BTU Mobile Home Electric Furnace Downflow R454B & R32 2-3 Ton ACIQ-EFS1520FD-MH

Brand ACiQ SKU ACIQ-EFS1520FD-MH
Weight (in lbs) 115 UPC 605468411483
Heating BTU 49,100 BTU Blower Motor ECM Multi Speed
Drive Type Direct Maximum CFM 1710
Horsepower 3/4 HP Electric Heat 15 Kilowatts
Configuration Downflow Electrical 240v 1 Phase
Max Breaker Size (1) 60 Amp and (1) 25 Amp Fuel Type Electric
Height 57" Width 19 3/4"
Depth 24 1/2"
Warranty

ACiQ 49,100 BTU Mobile Home Electric Furnace Downflow R454B & R32 2-3 Ton ACIQ-EFS1520FD-MH

Warranty Type Parts
Standard Warranty 5 years
Documents

ACiQ 49,100 BTU Mobile Home Electric Furnace Downflow R454B & R32 2-3 Ton ACIQ-EFS1520FD-MH

Specification Sheet

Installation Guide

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.
