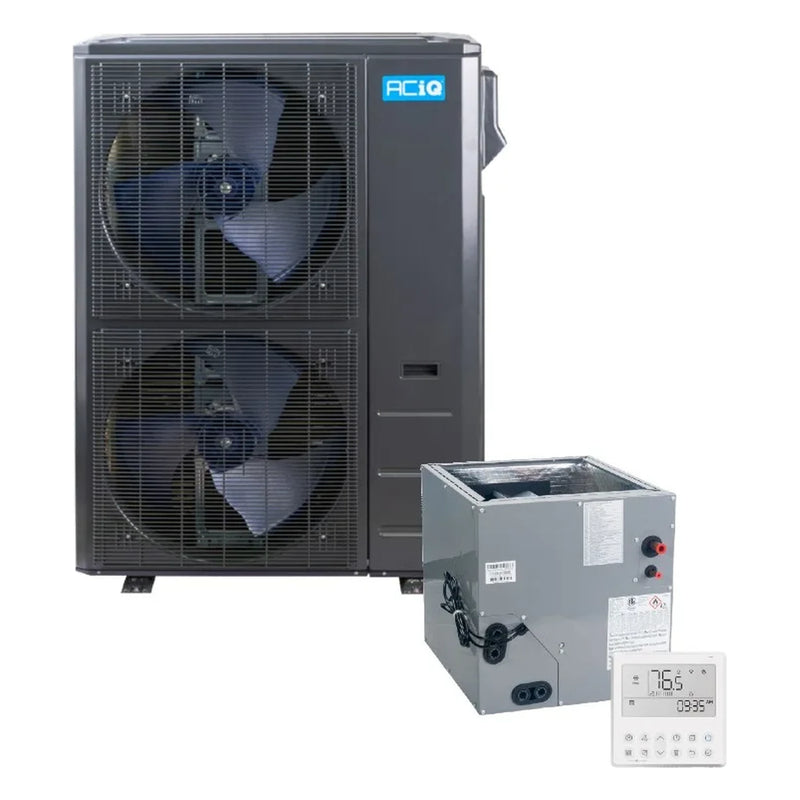

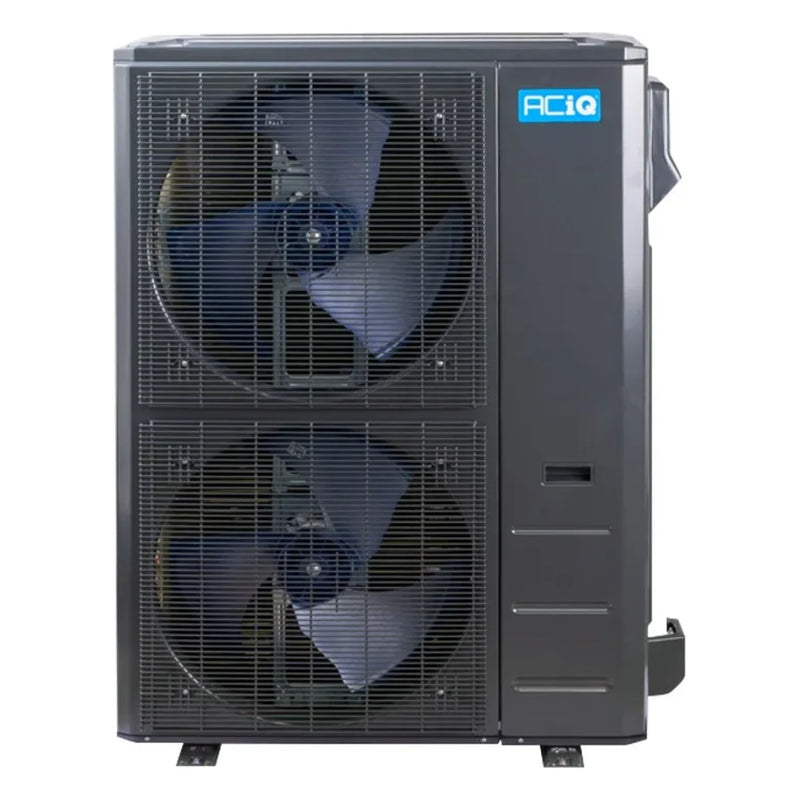

ACiQ 5 Ton 14.8 SEER2 Air Conditioner Condenser Inverter 230V R454B ACIQ-60-AC-B
The ACIQ-60-AC-B is a 5 ton, 14.8 SEER2 air conditioner condenser built around a variable-speed inverter compressor and R454B refrigerant. Instead of cycling on and off at full capacity, the compressor speeds up and slows down to track real-time demand, and ACiQ's Learning Condenser technology monitors indoor and outdoor temperature, duct pressure, and refrigerant temperature during startup to fine-tune performance going forward.
Rated at 60,000 BTU of cooling with up to 4,503 CFM airflow and as low as 63 dBA of operating sound, this condenser can also throttle down to roughly a 1 ton unit when full capacity isn't needed, making it a good seasonal AC-only option for homes that already have another primary heat source such as a boiler or fireplace. It runs on a 208/230V single-phase circuit and weighs 244.49 lbs.
Key Features
-
Variable-Speed Inverter Compressor - Self-adjusts BTU output to match real-time demand instead of cycling at full capacity.
-
Learning Condenser Technology - Monitors temperature, duct pressure, and refrigerant temperature during startup to optimize future performance.
-
14.8 SEER2 Efficiency - Rated 14.8 SEER2 / 8.5 EER2 for lower cooling operating costs.
-
60,000 BTU Cooling Capacity - Delivers 60,000 BTU of cooling with up to 4,503 CFM of airflow.
-
Quiet Operation - Runs as low as 63 dBA, noticeably quieter than a fixed-speed condenser at full load.
-
R454B Refrigerant - Uses the lower-GWP R454B refrigerant charge required for current equipment.
-
Down to 1 Ton Operation - Inverter design lets the compressor throttle down for seasonal AC-only supplemental cooling.
-
208/230V Single-Phase Electrical - Runs on a 208/230V 1-phase 60 Hz circuit with a 40 Amps max breaker.
Important Refrigerant Safety Notice: This unit uses R454B, an A2L mildly flammable refrigerant. It must be paired with a compatible, A2L-rated indoor coil or air handler equipped with proper leak detection. Please call 1-888-557-9206 with any compatibility questions before purchasing or installing.

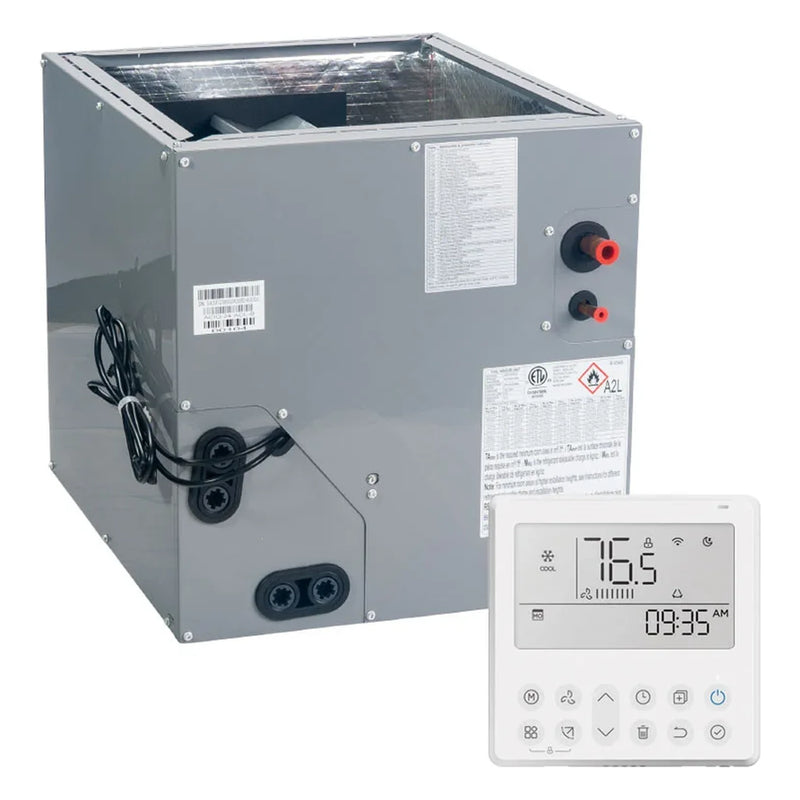

ACiQ 5 Ton Evaporator Coil Cased Multi-Positional With TXV 24.5"W R454B ACIQ-60-ACL-B
ACiQ takes pride in delivering high-quality HVAC systems, with every component designed for long-lasting performance. The ACiQ-60-ACL-B multi-positional A-coil is engineered to provide exceptional efficiency and flexibility for a wide range of applications. With its factory-integrated TXV kit, this evaporator coil ensures maximum energy optimization and superior performance. Its durable, compact design and versatile installation options make it the perfect choice for homeowners seeking reliable comfort and energy savings.
Key Features
-
5 ton multi-positional evaporator coil - ideal for diverse HVAC configurations
-
Works in almost any upflow, downflow, or horizontal system setup - providing versatile installation options
-
Compatible with both AC-only and heat pump condensers - ensuring system flexibility
-
Factory-installed TXV kit - enhances system efficiency and energy optimization
-
Sturdy and compact design - built for durability and space efficiency
-
Rated up to 5 tons of heating and cooling capacity - ideal for residential or light commercial use
-
Can be paired with AC-only or heat pump condensers - improving overall system performance
-
Ensures superior indoor comfort - optimized for long-term, energy-efficient operation
Please note - The ACiQ-60-ACL-B coil cannot operate independently and must be paired with a compatible condenser and blower or furnace, each available separately. In some configurations, this coil may be larger than its paired condenser to improve efficiency, but it should never be smaller than the condenser it supports.
