ACiQ-5919UDXBCA

ACiQ 5 Ton Mobile Home Coil Uncased Downflow Copper R410A

By ACiQ | Model: ACiQ-5919UDXBCA | ID: 902444
✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$890.00 + SHIPPING
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Lowest Price Guarantee Find it cheaper? We'll match it. See terms
Speak with an Expert Call us at (833) 658-3387
Product Details

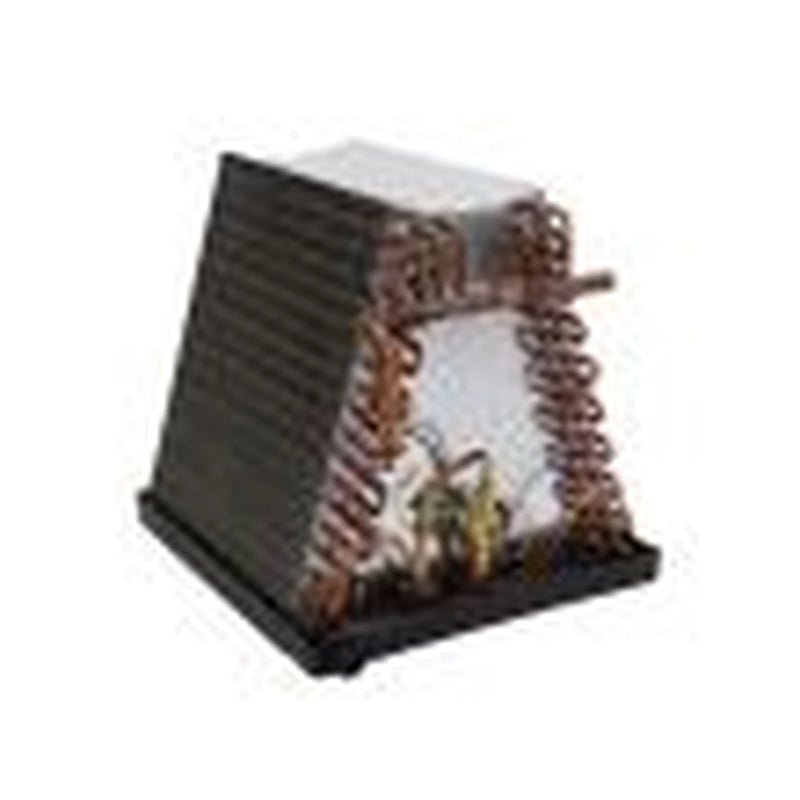

ACiQ 5 Ton Mobile Home Coil Uncased Downflow Copper R410A ACiQ-5919UDXBCA

The ACiQ-5919UDXBCA is a 5 ton uncased downflow A-coil built for larger mobile and manufactured home split systems that need higher-capacity cooling. Rifled copper tubing and enhanced aluminum fins deliver efficient heat transfer, while the factory-installed TXV keeps refrigerant metering accurate as load conditions change throughout the day.

This coil is ETL listed for use with both R-22 and R-410A refrigerant when the proper metering device is used, giving contractors flexibility on retrofit jobs as well as new R-410A installations. At 19-1/2" x 17-3/4" x 19-1/2" and rated compatible with condensers up to 5 tons, it works equally well behind an AC-only condenser or a heat pump condenser.

Key Features

  • Rifled Copper Coil - Copper tubing with enhanced aluminum fins delivers strong, durable heat transfer for full 5 ton cooling loads.
  • Factory TXV Metering - Pre-installed thermostatic expansion valve keeps refrigerant flow accurate across changing demand.
  • A-Coil Downflow Style - Compact 19-1/2" x 17-3/4" x 19-1/2" A-coil cabinet is sized for mobile home downflow furnace closets.
  • ETL Listed for R-22 & R-410A - Approved for use with either refrigerant when the correct metering device is installed, easing retrofit jobs.
  • Rated to 5 Tons - Compatible with any AC-only or heat pump condenser up to 5 tons of capacity.
  • Braze/Sweat Connections - 3/8" liquid and 7/8" suction line connections support straightforward field brazing.
  • Heavy-Duty Drain Pan - Polypropylene condensate pan holds up better than lightweight stamped-metal pans over the coil's service life.
  • Downflow Plate Kit Included - Ships with the plate kit needed for downflow orientation, ready to install out of the box.

View More Coils

Specifications

ACiQ 5 Ton Mobile Home Coil Uncased Downflow Copper R410A ACiQ-5919UDXBCA

Brand ACiQ SKU ACiQ-5919UDXBCA
Weight (in lbs) 55 Configuration Downflow
Refrigerant R410A Liquid Line 3/8"
Suction Line 7/8" Tonnage 5 Ton
Style A-Coil Height 19 1/2"
Width 17 3/4" Depth 19 1/2"
Warranty

ACiQ 5 Ton Mobile Home Coil Uncased Downflow Copper R410A ACiQ-5919UDXBCA

Warranty Type Parts
Standard Warranty 10 years
Documents

ACiQ 5 Ton Mobile Home Coil Uncased Downflow Copper R410A ACiQ-5919UDXBCA

Specification Sheet

Installation Guide

Warranty Information
