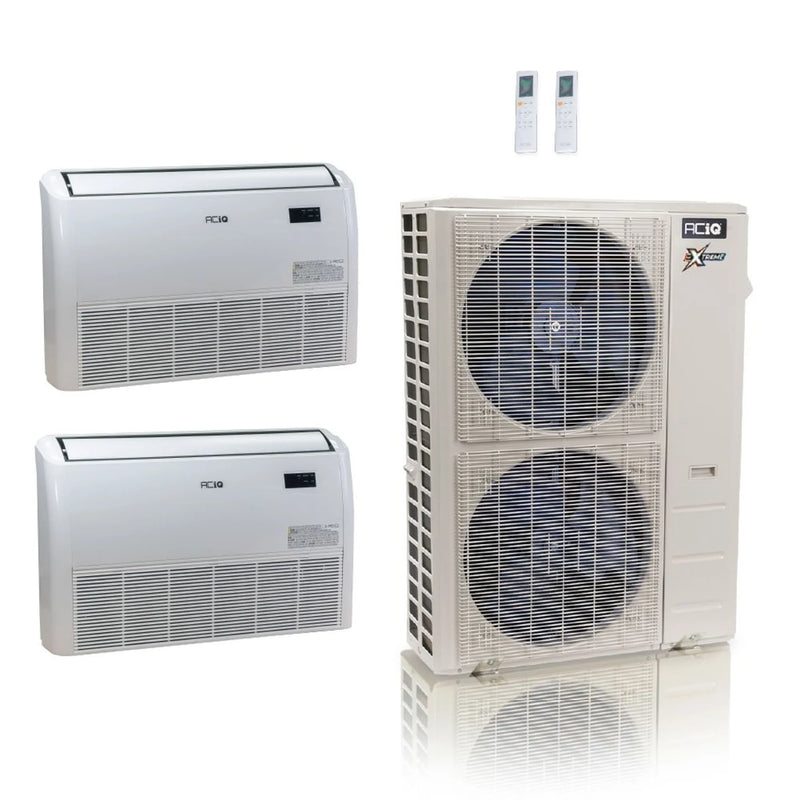

ACiQ 55K BTU Extreme Multi Zone Mini Split Heat Pump Condenser R454B 230V ACIQ-55Z-HH-M6C

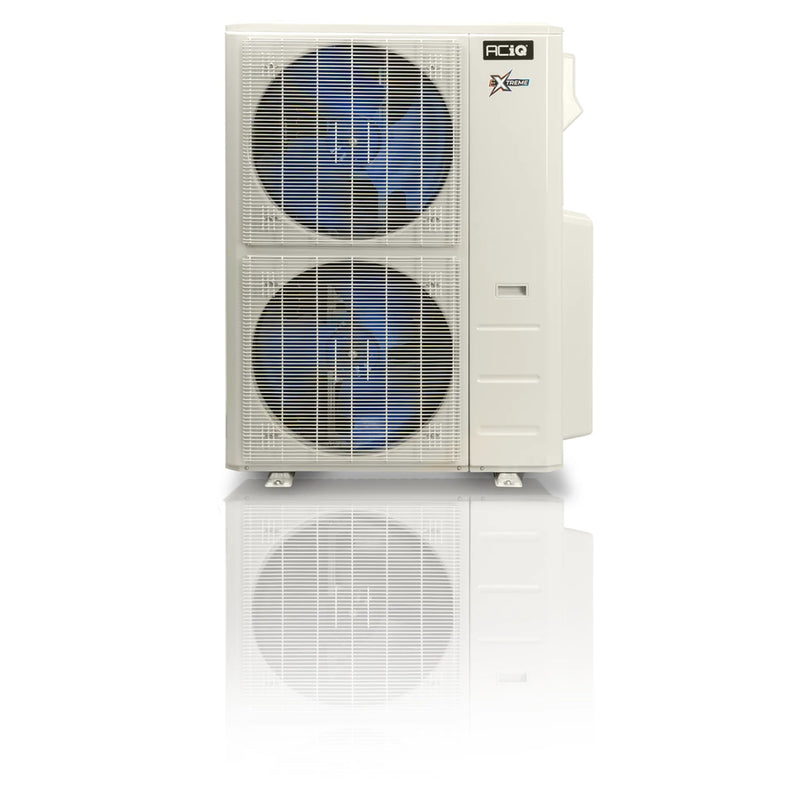

The ACiQ-55Z-HH-M6C is a 55,000 BTU multi zone heat pump condenser designed to deliver efficient, adaptive climate control for up to six zones. With a high SEER2 rating of 22.2, it offers outstanding performance even in extreme conditions, operating in outdoor temperatures as low as -22°F. This intelligent inverter-driven system supports various configurations, making it ideal for homes that demand quiet, reliable, and flexible heating and cooling. Its advanced base pan heater technology and Gold Fin coil protection enhance durability, while quiet operation ensures comfort without noise disruption.
Key Features
- 55,000 BTU multi-zone condenser with 4.5-ton capacity
- Up to 6 compatible indoor air handlers for zone-specific climate control
- High-efficiency 22.2 SEER2 performance for reduced energy bills
- Effective cooling from -22°F to 122°F and heating from -22°F to 75°F
- Integrated Extreme Heat technology and base pan heater for cold climates
- Gold Fin condenser coil coating for corrosion resistance
- Twin rotary inverter compressor for quieter and more durable operation
- Pre-charged with R410A refrigerant for 25’ per line set connection
- Self-diagnostic control board with alerts for easy troubleshooting
- Requires professional installation with vacuum and refrigerant charging
The ACiQ-55Z-HH-M6C is ideal for residential applications requiring flexibility, high efficiency, and low ambient performance. Its zone-specific adaptability allows for customized temperature settings in each room, helping to improve comfort and energy savings.
ACiQ 18,000 BTU Extreme Series Floor/Ceiling Mounted Air Handler R454B 230V ACIQ-18FM-HH-MD
The ACiQ 18,000 BTU Floor or Ceiling Mounted Air Handler offers flexible installation in challenging spaces where high-wall mounting isn't possible. Its compact form and powerful airflow design make it ideal for sunrooms, attic remodels, or rooms with knee walls or below-window space. This unit can be wall-mounted close to the floor or suspended from the ceiling using an adjustable rod system, and it includes a wireless remote for intuitive control. Its whisper-quiet performance and low-profile design deliver both functionality and comfort for any interior space.
Key Features
- 18,000 BTU (cooling: 17,000 / heating: 19,000 BTU)
- Versatile installation – floor- or ceiling-mounted configuration
- Ideal for sunrooms, attics, or rooms with angled ceilings
- Maximum CFM: 576.8 with quiet operation as low as 29 dBA
- Pre-wired for condensate pump with overflow shutoff
- Wireless remote included
- R454B refrigerant – eco-friendly and efficient
- Energy Star certified
This unit is designed for creative installation solutions where traditional wall-mounted systems won’t work. Whether elevated above a windowsill or suspended from a ceiling, it provides quiet, efficient comfort.
ACiQ 24,000 BTU 2 Ton Mini Split Floor/Ceiling Air Handler R454B 230V ACIQ-24FM-HH-MD

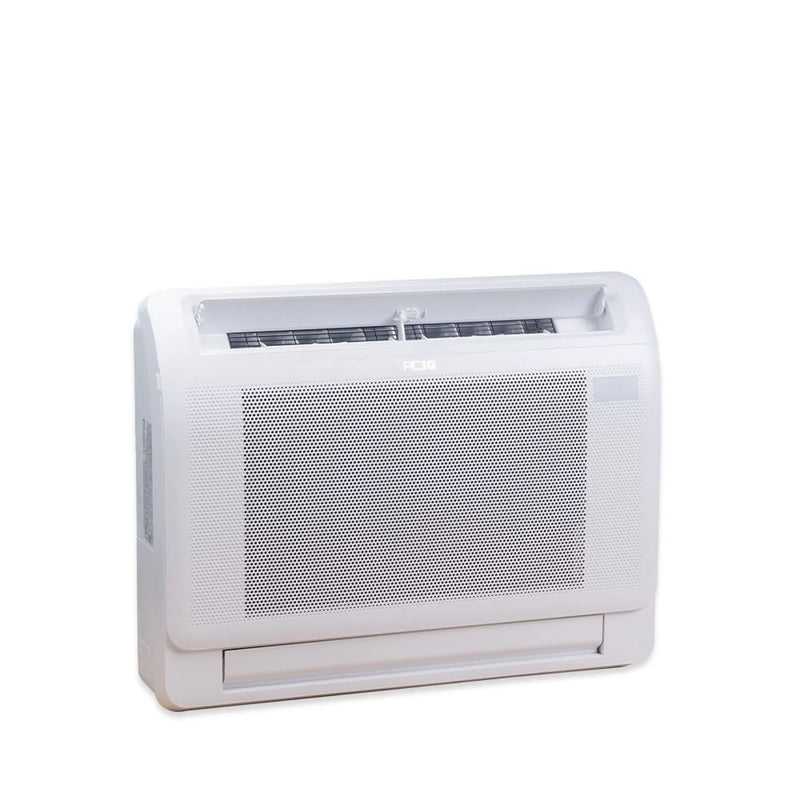

ACiQ Floor Mounted Air Handlers are an excellent HVAC solution for sun porches, attic conversions, and any room where space for traditional wall-mounted units is limited. Also known as heat console air handlers, these compact units are designed to mount low on the wall, near or directly on the floor, making them ideal for areas with low ceilings, knee walls, or minimal vertical wall space.
Their design is slightly wider, taller, and shallower than standard wall-mounted units, allowing them to fit under windows or within tight architectural features. Models like the ACiQ-18FM-HH-MB and ACiQ-24FM-HH-MB are engineered specifically to solve complex installation challenges in unconventional environments.
Key Installation Advantages:
-
Level Mounting on Angled Surfaces: Threaded rod mounting allows the unit to be perfectly level, even on angled or uneven walls commonly found in attic remodels. The adjustable rod supports installation close to the ceiling or suspended several feet below it.
-
Minimal Clearance Required: Unlike ceiling cassettes or concealed duct units that require at least 12 inches of ceiling space, ACiQ floor-mounted models can operate with just a 1-inch gap between ceiling and roof—perfect for metal buildings or three-season rooms.
-
Efficient Sunroom Integration: Mounts directly to the wall beneath windowsills, approximately 2 inches above the floor. No floor penetration is required—refrigerant lines, drain hoses, and electrical connections pass cleanly through the wall. Ideal for sunrooms with large windows and minimal wall space.
-
Smart Heating and Cooling: Draws air from the bottom and delivers it upward for effective winter heating. When used with an optional door-open sensor, the system can automatically shut off during the summer when windows or patio doors are open.
-
Optional Floor Mounting: Ideal for brick, stone, or marble surfaces where wall drilling is not feasible. All lines can run through the floor and be completely concealed. Comes pre-wired for a 240V condensate pump with overflow shutoff connections.
Note: The 18,000 and 24,000 BTU models have a slightly different appearance than the 12,000 BTU version. Both support floor or ceiling surface mounting. Please refer to the model-specific installation manual for details.
