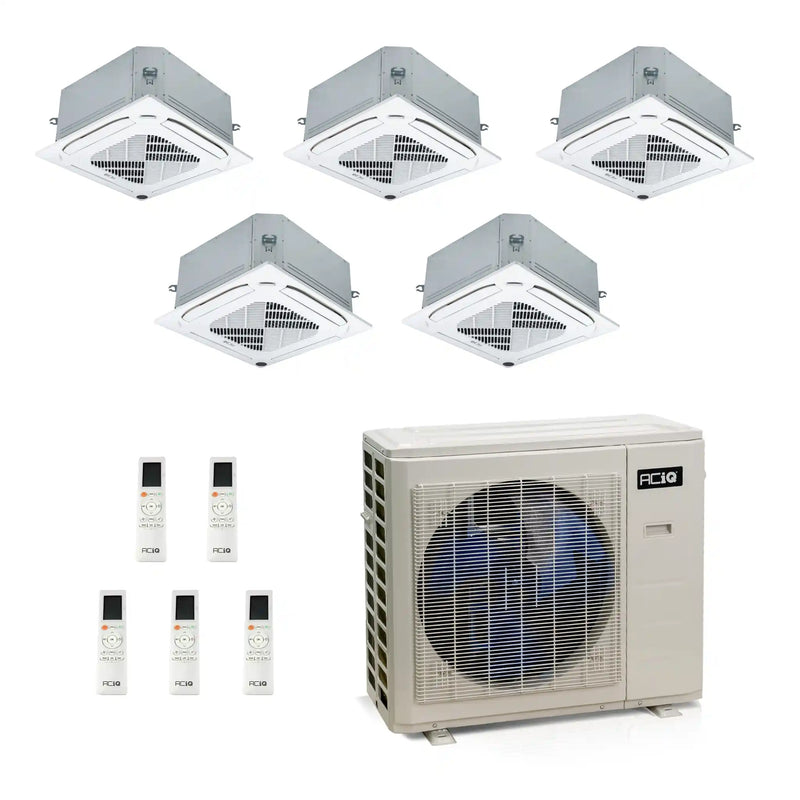

ACiQ 55K BTU 22 SEER2 5-Zone Ceiling Cassette Mini Split 230 12+12+12+18+18

By ACiQ | SKU: ES-55Z-M6C ACIQ-12CC-HH-MC-3 ACIQ-18CC-HH-MC-2 | ID: 88386
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Satisfaction Guarantee - or return within 30 Days
Most Products In Stock - Call or Text (833) 658-3387 for availability
$9,071.39 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Product Details

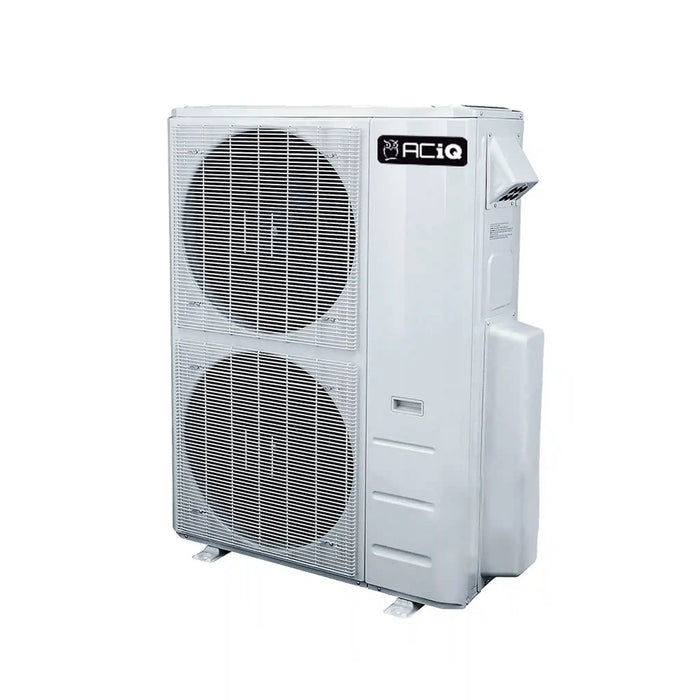

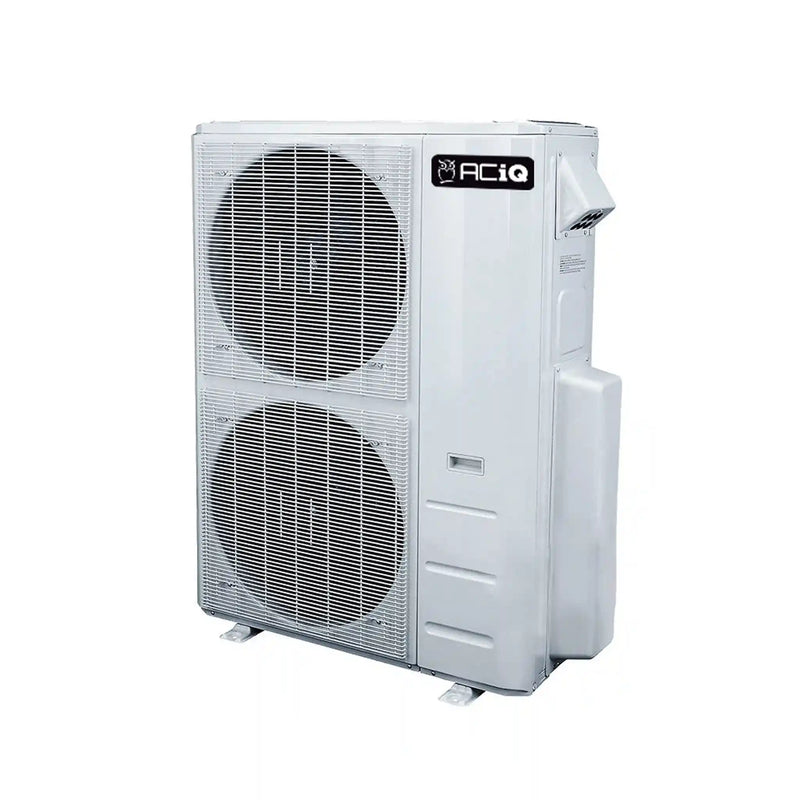

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-55Z-M6C model allows for up to 6 air handlers to run off a single condenser, saving outdoor space while keeping your home comfortable.

Key Features

  • 55,000 BTU, 22.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 6 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

The 55,000 BTU, ES-55Z-M6C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 68,750 BTU across all air handlers. This adaptive, inverter condenser adjusts to provide the precise amount of heating or cooling needed for each room or zone. With a high efficiency rating of 22.0 SEER2, this system is designed to save you money both initially and over its lifetime.

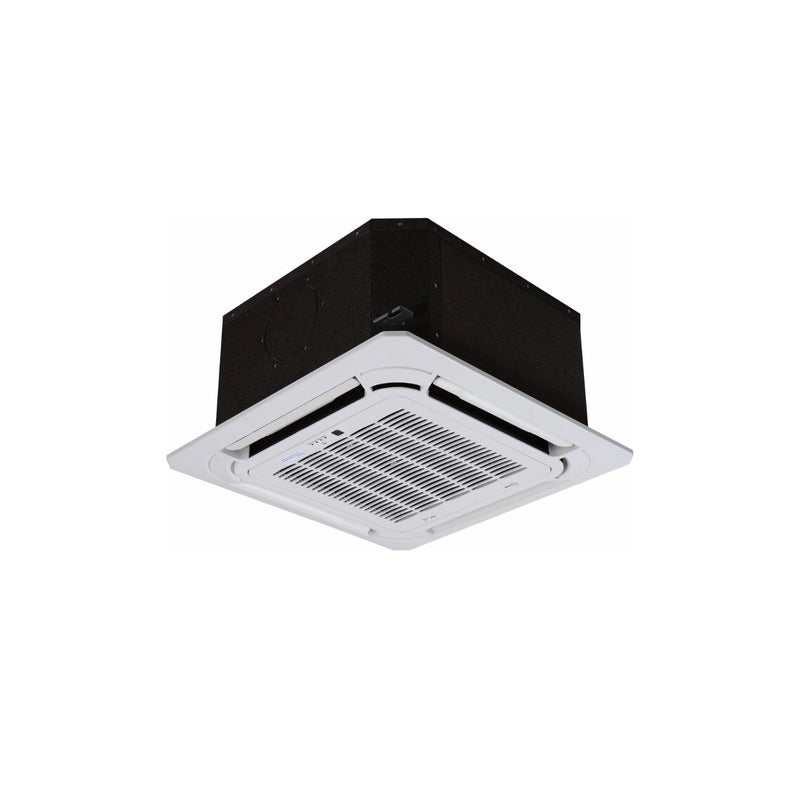

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC x3

Upgrade your home comfort with the ACiQ-12CC-HH-MC ceiling cassette air handler. Say goodbye to bulky wall units and hello to a sleek, centralized air distribution system. The ceiling cassette offers high-efficiency heating and cooling with a discreet appearance, complete with a handheld remote control for easy operation.

Key Features

  • 12,000 BTU of Heating or Cooling power
  • Dry and Fan modes for versatile comfort
  • Perfect for small rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included

Elevate your home with the understated elegance of a flush-mounted Ceiling Cassette air handler from ACiQ. Enjoy quiet comfort and efficient performance all year round.


ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-18CC-HH-MC x2

Looking for a more discreet air handler option for your Mini Split system? The ACiQ-18CC-HH-MC ceiling cassette air handler offers a hidden appearance and centralized air distribution. With high-efficiency heating and cooling capabilities, this ceiling cassette unit comes with a handheld remote control for easy operation. Once installed in the ceiling, only the grille is visible for a sleek and understated look.

Key Features

  • 18,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Suitable for medium rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included
  • Flush-mounted Ceiling Cassette design for understated appearance
  • Factory installed condensation pump for easy maintenance

ACiQ systems are designed for quiet comfort, quickly reaching and maintaining set temperatures while operating quietly both indoors and outdoors, ensuring a peaceful environment.

View More 5 Zone Mini Splits

Specifications

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

Brand ACiQ SKU ES-55Z-M6C
Refrigerant Charge 147.6' Weight 270.280000
HSPF2 9.1 Cooling BTU 55000 BTU
Heating BTU 55000 BTU Maximum CFM 4500
Decibel Level (dBA) 62 Electric Heat Heat Pump
Energy Star Yes Refrigerant R410A
SEER2 21.3 Compressor Type Rotary
Liquid Line 1/4" (5) Suction Line 3/8" (3); 1/2" (2)
Electrical 208/230V 1 Phase 60 Hz Electric Phase Filter Single Phase
Max Breaker Size 60 Amps Min. Breaker Size 40 Amps
BTU/Tonnage 55,000 BTU/4.5 Ton Zone Compatibility Multi Zone
Operating Mode Cooling, Heating Height 52.48"
Width 37.48" Depth 16.34"

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC x3

Brand ACiQ SKU ACIQ-12CC-HH-MC
Replaces ACIQ-12CC-HH-MB Product Features Low Ambient Heating, Wireless Controller
Cooling BTU 12,000 BTU Heating BTU 12,000 BTU
Maximum CFM 335.29 Decibel Level (dBA) As low as 31.5
Electric Heat Heat Pump Refrigerant R454B
Capacity Dehumidification Rate: 0.45 gal/hr SEER2 22.3
Liquid Line 1/4" Suction Line 1/2"
Electrical 208/230V 1 Phase 60Hz Electric Phase Filter Single Phase
Max Breaker Size 15 Min. Breaker Size 15
BTU/Tonnage 12,000 BTU/1 Ton Mini Split Type Ceiling Cassette
Zone Compatibility Multi Zone Length 22.44"
Height 10.24" Depth 22.44"

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-18CC-HH-MC x2

Brand ACiQ SKU ACIQ-18CC-HH-MC
Controller Wireless Included Product Features Low Ambient Heating
Cooling BTU 18,000 BTU Heating BTU 18,000 BTU
Maximum CFM 562.35 Decibel Level (dBA) As low as 35.5
Electric Heat Heat Pump Refrigerant R454B
Capacity Dehumidification Rate: 0.586 gal/hr Liquid Line 1/4"
Suction Line 1/2" Electrical 208/230V 1 Phase 60Hz
Electric Phase Filter Single Phase Max Breaker Size 25
Min. Breaker Size 20 BTU/Tonnage 18,000 BTU/1.5 Ton
Mini Split Type Ceiling Cassette Zone Compatibility Multi Zone
Height 10.25" Width 22.5"
Depth 22.5" Replaces ACIQ-18CC-HH-MB
Warranty

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC x3

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-18CC-HH-MC x2

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts
Documents

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

Brochure

Installation and Owner's Manual

Service Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC x3

Submittal

Brochure

Installation and Owner's Manual

Remote Manual

Heating Performance Table

Warranty Information

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-18CC-HH-MC x2

Submittal

Brochure

Installation and Owner's Manual

Remote Manual

Heating Performance Table

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
