ACiQ ES-55Z-M6C ACIQ-06W-HH-MD-4 ACIQ-09W-HH-MD-2

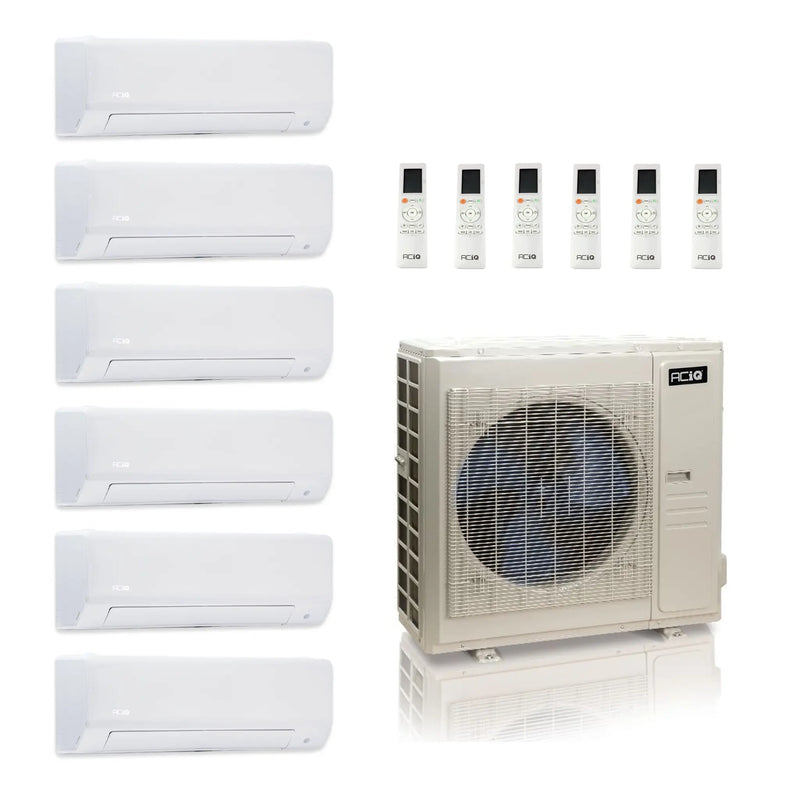

ACiQ 55K BTU 22 SEER2 6-Zone Wall Mount Mini Split R454B 230V 6+6+6+6+9+9

Name: ACiQ 55K BTU 22 SEER2 6-Zone Wall Mount Mini Split R454B 230V 6+6+6+6+9+9
Brand: ACiQ
SKU: ES-55Z-M6C ACIQ-06W-HH-MD-4 ACIQ-09W-HH-MD-2
Price: 7802.35 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ES-55Z-M6C ACIQ-06W-HH-MD-4 ACIQ-09W-HH-MD-2 | ID: 88340

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$7,802.35 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

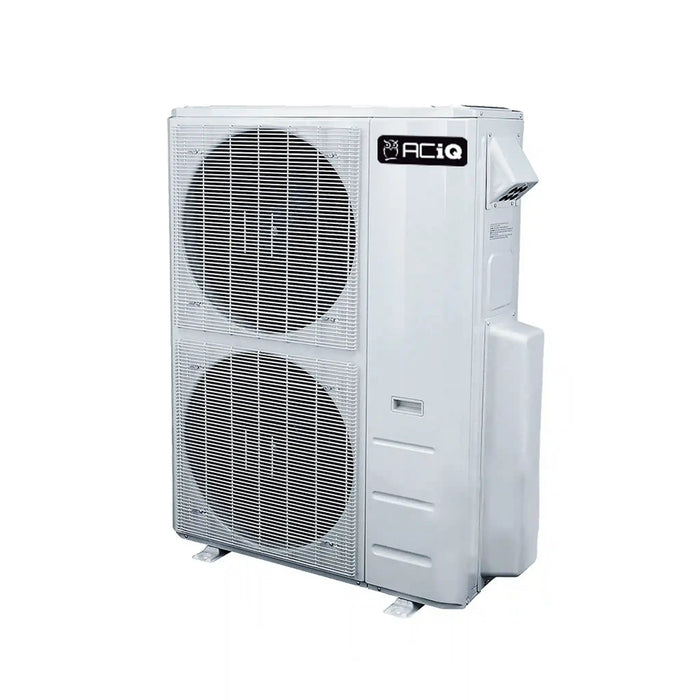

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-55Z-M6C model allows for up to 6 air handlers to run off a single condenser, saving outdoor space while keeping your home comfortable.

Key Features

55,000 BTU, 22.0 SEER2 multi zone heat pump condenser
Designed to function with up to 6 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

The 55,000 BTU, ES-55Z-M6C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 68,750 BTU across all air handlers. This adaptive, inverter condenser adjusts to provide the precise amount of heating or cooling needed for each room or zone. With a high efficiency rating of 22.0 SEER2, this system is designed to save you money both initially and over its lifetime.

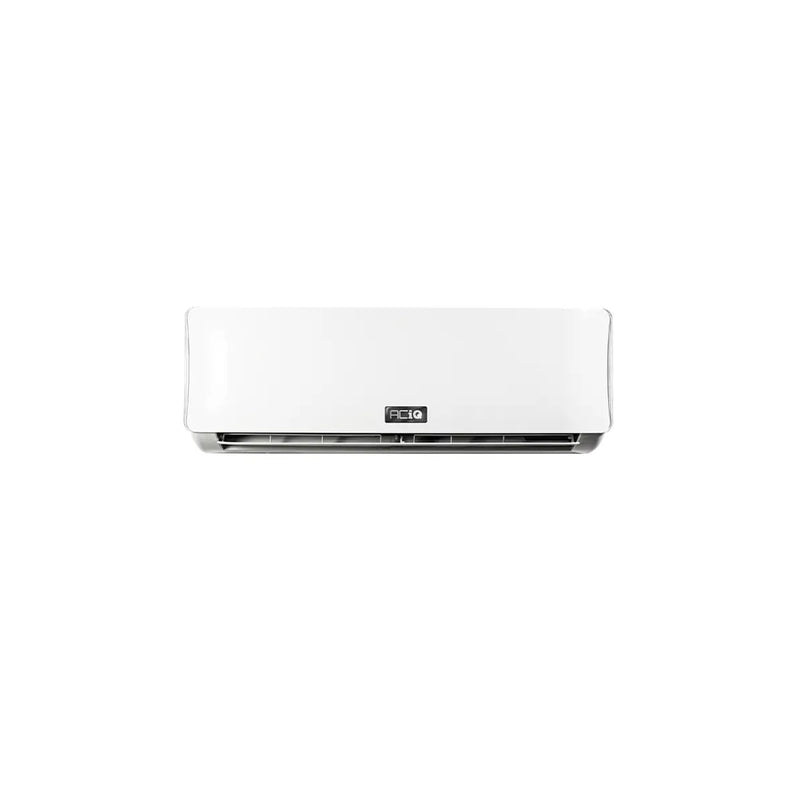

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-06W-HH-MD x4

The 6,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or the Platinum Single Zone condenser for a highly efficient Hyper Heat system. The adaptive technology ensures your ideal temperature is maintained regardless of the outdoor weather conditions.

Key Features

6,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-06W-HH-MD air handler features a soft LED display for easy monitoring, along with intelligent heating and cooling capabilities. It is WiFi ready, allowing you to control your home's temperature from anywhere using a smart device. Please note that installation with a condenser and other equipment is required for proper functionality.

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD x2

The 9,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser to create an efficient Hyper Heat system. Equipped with adaptive technology, it monitors and maintains your ideal temperature regardless of external weather conditions.

Key Features

9,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-09W-HH-MD air handler features a soft LED display for easy monitoring, self-diagnosing control board with error code display, and a smart remote with LCD display. It is WiFi ready and compatible with Amazon Alexa and Google Assistant for convenient control.

View More 6 Zone Mini Splits

Specifications

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

Brand	ACiQ	SKU	ES-55Z-M6C
Refrigerant Charge	147.6'	Weight	270.280000
HSPF2	9.1	Cooling BTU	55000 BTU
Heating BTU	55000 BTU	Maximum CFM	4500
Decibel Level (dBA)	62	Electric Heat	Heat Pump
Energy Star	Yes	Refrigerant	R410A
SEER2	21.3	Compressor Type	Rotary
Liquid Line	1/4" (5)	Suction Line	3/8" (3); 1/2" (2)
Electrical	208/230V 1 Phase 60 Hz	Electric Phase Filter	Single Phase
Max Breaker Size	60 Amps	Min. Breaker Size	40 Amps
BTU/Tonnage	55,000 BTU/4.5 Ton	Zone Compatibility	Multi Zone
Operating Mode	Cooling, Heating	Height	52.48"
Width	37.48"	Depth	16.34"

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-06W-HH-MD x4

Brand	ACiQ	SKU	ACIQ-06W-HH-MD
Cooling BTU	6000 BTU	Heating BTU	7000 BTU
Maximum CFM	364.71	Decibel Level (dBA)	As low as 23
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60 Hz	Electric Phase Filter	Single Phase
BTU/Tonnage	6,000 BTU/0.5 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Height	11.76"
Width	33.40"	Depth	9.18"

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD x2

Brand	ACiQ	SKU	ACIQ-09W-HH-MD
Cooling BTU	9000 BTU	Heating BTU	10000 BTU
Maximum CFM	335.29	Decibel Level (dBA)	38
Electric Heat	Heat Pump	Refrigerant	R454B
SEER	23-24	SEER2	22.3
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60 Hz	BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Wall Mounted	Zone Compatibility	Multi Zone
Length	33.40"	Height	11.76"
Depth	9.18"	Replaces	N/A

Warranty

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-06W-HH-MD x4

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD x2

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

Brochure

Installation and Owner's Manual

Service Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-06W-HH-MD x4

Remote Control Manual

Submittal

Installation & Owner's Manual

Wi-Fi Manual

Warranty Information

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD x2

Submittal

Remote Control Manual

Installation & Owner's Manual

Wi-Fi Manual

Warranty Information
