Bosch 36K BTU 24 SEER2 Gen 4 Wall Mount Mini Split 5-Zone Regular No Lineset 230V R454B 9+9+9+9+12

The Bosch Climate 5000 Gen 4 ductless mini split heat pump kit is designed for homeowners seeking efficient heating and cooling in up to five zones without the need for ductwork. This advanced system offers flexibility with its wall-mounted indoor air handlers, making it ideal for both residential and light commercial applications.

Bosch Climate 5000 Gen 4 36,000 BTU Outdoor Condenser - R-454B | 230V BMS500-AAM036-1CSXRD

The outdoor condenser model BMS500-AAM036-1CSXRD is a robust component of this mini split system, capable of handling the cooling and heating demands of up to five zones. It features R-454B refrigerant for superior performance across a wide range of temperatures.

Superior Heating & Cooling Performance

• 24 SEER2: delivers strong seasonal cooling efficiency that helps trim energy costs through the summer months.
• 9.5 HSPF2: provides efficient heat-pump warmth for cost-effective comfort when the temperature drops.
• 12 EER2: holds solid efficiency under peak-load conditions on the hottest days of the year.
• Cold-Weather Output: rated heating capacity of 37,000 BTU at 47F, 26,600 BTU at 17F, 26,000 BTU at 5F, with a COP of 2 at 5F for dependable heat as it gets cold.
• ENERGY STAR Cold Climate: certified for reliable performance in genuinely cold climates, not just mild weather.

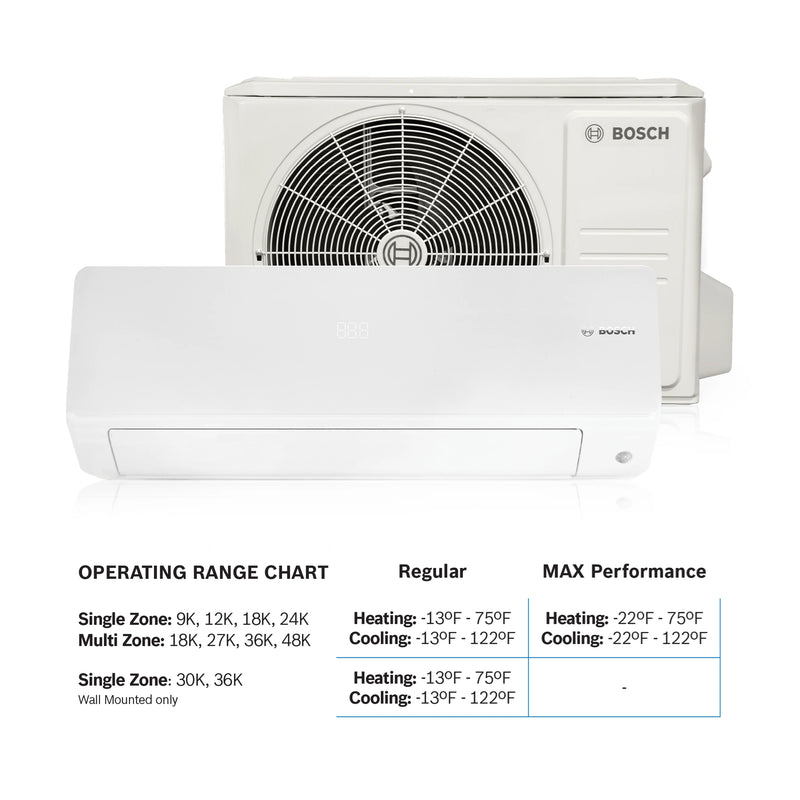

• Wide Operating Range: engineered to cool and heat across a broad outdoor temperature range for year-round comfort.

Advanced Technology

• Inverter Compressor: continuously varies its output to match demand instead of cycling fully on and off, saving energy and holding steady temperatures.
• R-454B Refrigerant: uses an eco-friendly, low-GWP refrigerant that meets the latest environmental requirements.
• A2L Safety Sensor: a factory-installed refrigerant sensor adds an extra layer of built-in safety.
• AHRI Certified: performance ratings are independently verified, so you know exactly what you are buying.
• Variable-Speed Operation: ramps smoothly to keep rooms at a consistent temperature while minimizing energy use.

Whisper-Quiet Operation

• Whisper-Quiet: the inverter-driven condenser runs quietly for an unobtrusive presence outside your home.
• Smooth Ramping: variable-speed startups avoid the loud kick-on of traditional single-stage units.
• Compact Footprint: a compact outdoor unit fits neatly on patios, balconies, and tight side yards.
• Low Vibration: the inverter design keeps outdoor operating noise and vibration to a minimum.

Durability & Long-Term Protection

• Blue-Fin Coating: water-wicking blue-fin technology resists corrosion to extend the life of the coil.
• Weather-Resistant Build: engineered to protect internal components against the elements year-round.
• Flexible Line-Set Runs: supports long line-set runs so the outdoor unit can sit where it fits best.
• Compact Install: the indoor and outdoor units connect through a small exterior wall opening.
• No Ductwork: requires no ducting, making it ideal for additions, renovations, and enclosed spaces.

Warranty Coverage

• 7-Year Parts: replacement-parts coverage for 7 years, extending to 10 years when you register the system.
• 10-Year Compressor: a full decade of protection on the compressor, the heart of the system.
• Professional Installation: warranty coverage requires professional installation for lasting reliability.

This condenser unit is designed with durability in mind, featuring advanced self-cleaning technology that helps maintain optimal operation year-round. Its compact design ensures it blends seamlessly into most outdoor settings.

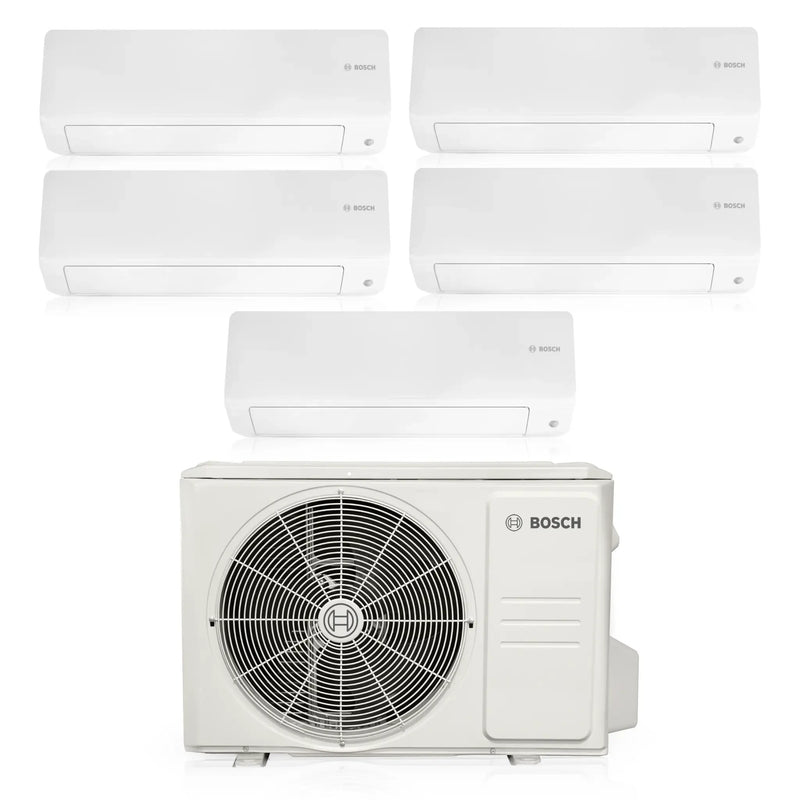

Bosch Climate 5000 Gen 4 5-Zone Indoor Air Handlers - R-454B | 230V

The indoor air handlers come in two sizes: four units at 9,000 BTU and one unit at 12,000 BTU, providing versatile options for different room needs within a single system. Each handler features an intelligent eye occupancy sensor that detects the presence of people in the room to adjust energy use accordingly.

Unmatched Energy Efficiency

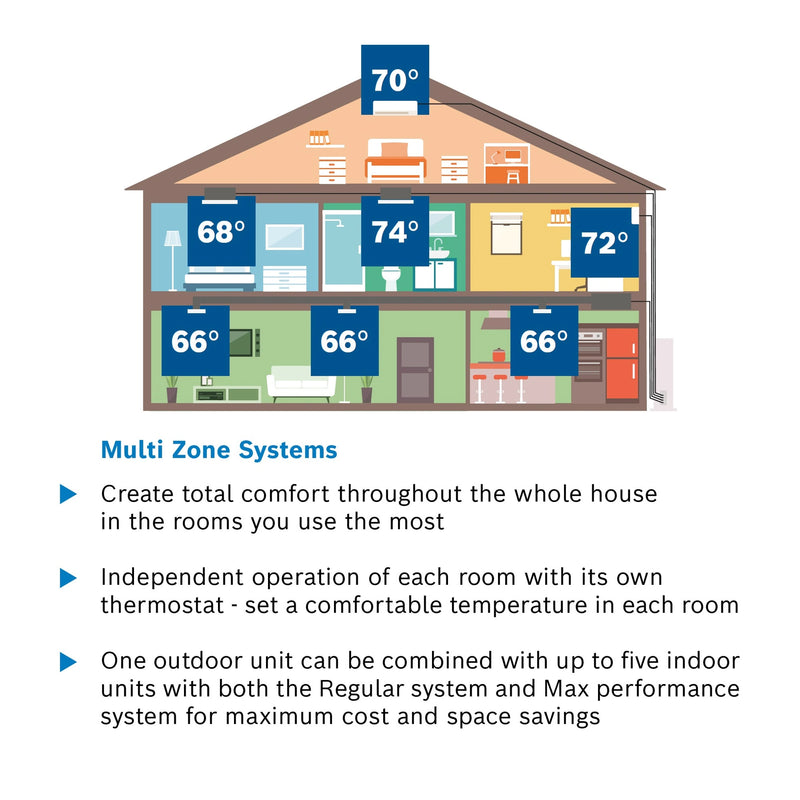

• 5-Zone Comfort: independently heats and cools up to 5 separate rooms, each with its own temperature setting.
• 24 SEER2: high seasonal cooling efficiency helps keep monthly energy costs down.
• 9.5 HSPF2: efficient heat-pump heating for cost-effective comfort in cooler weather.
• 12 EER2: strong efficiency under demanding peak-load conditions.
• ENERGY STAR Certified: recognized for efficiency that can help lower your utility bills.

Advanced Technology

• Intelligent Eye: an infrared sensor detects when the room is empty and lowers compressor speed to save energy.
• Automatic Humidity Control: actively manages humidity for a more comfortable indoor feel.
• Self-Cleaning Mode: keeps the internal unit fresh and helps maintain performance over time.
• Blue-Fin Technology: a water-wicking coil coating resists moisture and corrosion for longer life.

Enhanced Comfort & Quiet Operation

• Whisper-Quiet: low indoor sound levels keep rooms peaceful day and night.
• Sleep Setting: gentle, quiet nighttime operation that will not disturb your rest.
• Follow-Me Mode: senses the temperature at the remote so comfort follows you around the room.
• Even Airflow: distributes conditioned air consistently across the entire space.
• Humidity Control: automatic dehumidification reduces that sticky, humid feeling.

Durable & Reliable

• Washable Filter: a reusable mesh filter is easy to rinse and reinstall, cutting maintenance costs.
• Corrosion-Resistant Coil: blue-fin coating protects the coil for a longer service life.
• Compact Design: a slim profile blends into any room's decor.
• Built to Last: engineered for years of dependable daily heating and cooling.

User-Friendly Features

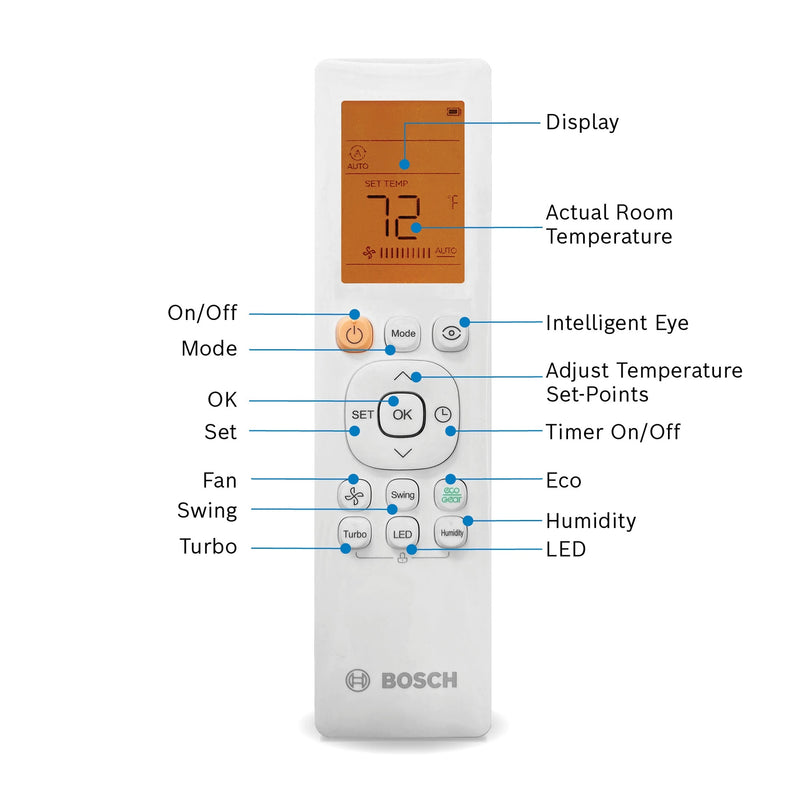

• Wireless Back-Lit Remote: adjust settings easily day or night with the included illuminated remote.
• Timer: schedule the system to turn on or off around your daily routine.
• Turbo: reach your target temperature quickly with a fast heating or cooling boost.
• Follow-Me: temperature is sensed at the remote for balanced comfort right where you are.
• Sleep & Silent: quiet comfort modes deliver restful nights and low-noise daytime operation.

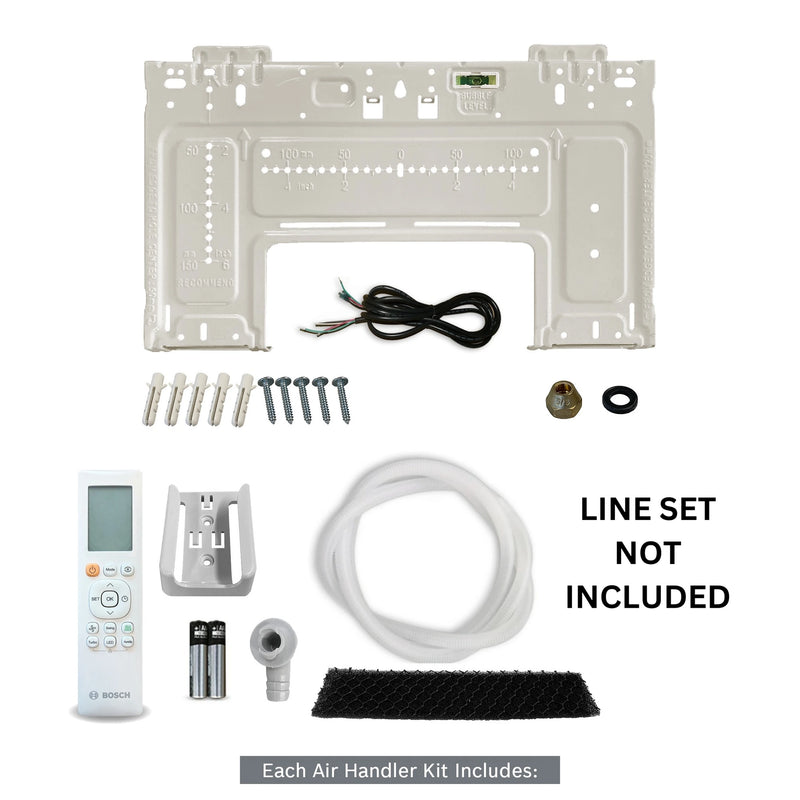

• Complete Kit: includes wall mounting hardware, communication cable, and a remote wall mount.

Warranty Coverage

• 7-Year Parts: replacement-parts coverage for 7 years, extending to 10 years when you register the system.
• 10-Year Compressor: a full decade of protection on the compressor.
• Professional Installation: warranty coverage requires professional installation for lasting reliability.

Each air handler is equipped with a continuously-variable inverter compressor and self-cleaning blue-fin technology, ensuring quiet operation and efficient performance even at extreme temperatures like -13F. The wireless back-lit remote control offers users easy access to all system functions from anywhere in the room.
