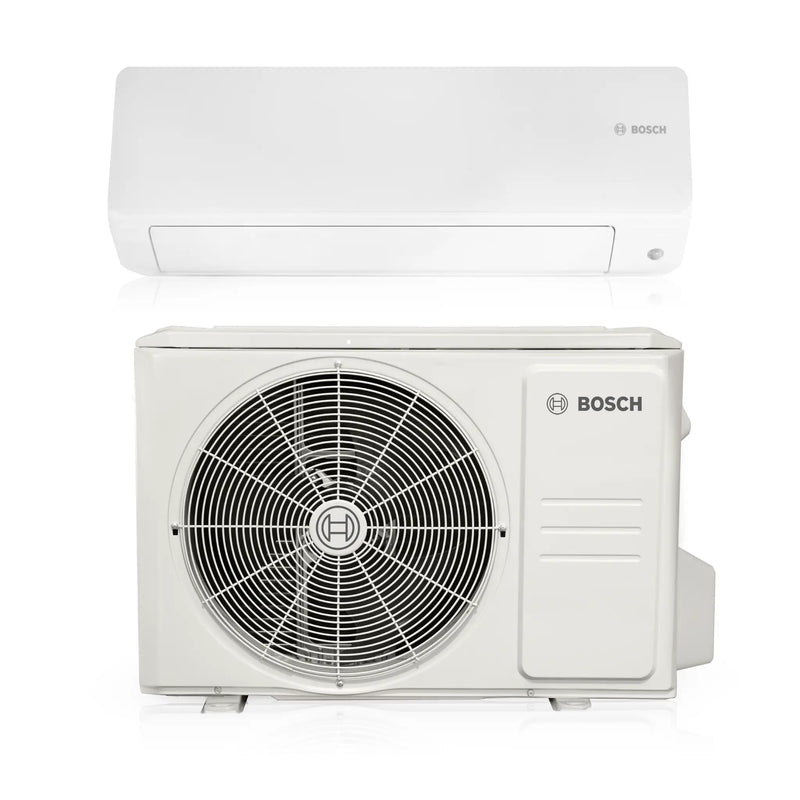

Bosch 9K BTU 19.5 SEER2 Gen 4 Wall Mount Mini Split Single Zone 16 ft Lineset 230V R454B 8733980394

The Bosch Climate 5000 Gen 4 ductless mini split heat pump kit is designed for homeowners seeking efficient heating and cooling without the need for ductwork. This single-zone system offers a sleek wall-mounted indoor unit paired with an outdoor condenser, making it ideal for small rooms or spaces that require precise temperature control.

Bosch Climate 5000 Gen 4 9,000 BTU Outdoor Condenser - R-454B | 230V BMS500-AAS009-1CSXRD

The outdoor condenser of the Bosch Climate 5000 Gen 4 is engineered to withstand harsh conditions, including temperatures as low as -13F. This robust component ensures reliable operation year-round and is equipped with a continuously-variable inverter compressor for optimal energy efficiency.

Superior Heating & Cooling Performance

• 19.5 SEER2: delivers strong seasonal cooling efficiency that helps trim energy costs through the summer months.
• 11 HSPF2: provides efficient heat-pump warmth for cost-effective comfort when the temperature drops.
• 12.8 EER2: holds solid efficiency under peak-load conditions on the hottest days of the year.
• Cold-Weather Output: rated heating capacity of 10,000 BTU at 47F, 8,100 BTU at 17F, 8,000 BTU at 5F, with a COP of 2.25 at 5F for dependable heat as it gets cold.
• ENERGY STAR Cold Climate: certified for reliable performance in genuinely cold climates, not just mild weather.

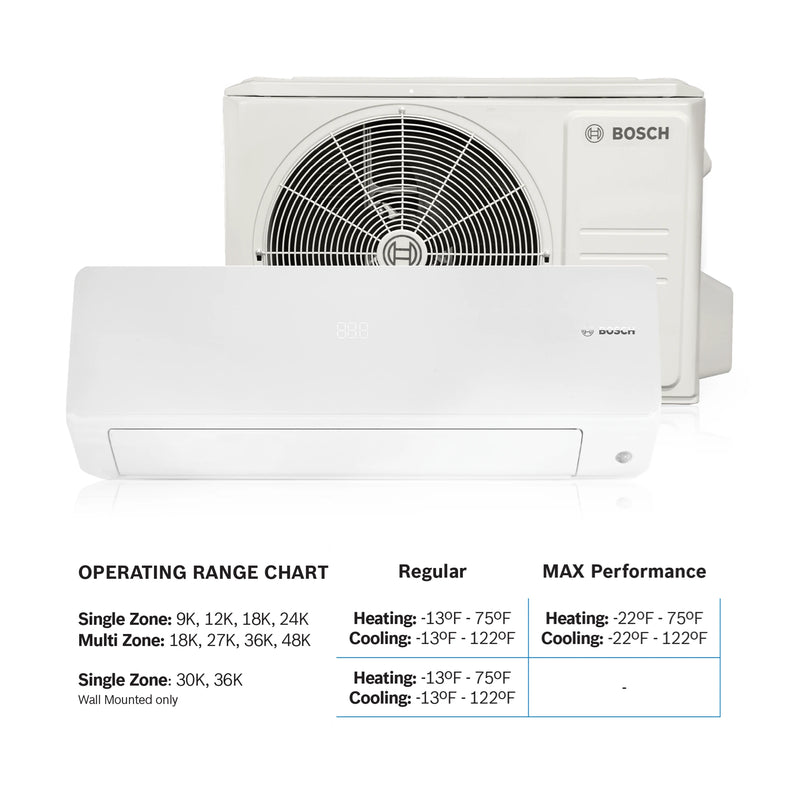

• Wide Operating Range: engineered to cool and heat across a broad outdoor temperature range for year-round comfort.

Advanced Technology

• Inverter Compressor: continuously varies its output to match demand instead of cycling fully on and off, saving energy and holding steady temperatures.
• R-454B Refrigerant: uses an eco-friendly, low-GWP refrigerant that meets the latest environmental requirements.
• A2L Safety Sensor: a factory-installed refrigerant sensor adds an extra layer of built-in safety.
• AHRI Certified: performance ratings are independently verified, so you know exactly what you are buying.
• Variable-Speed Operation: ramps smoothly to keep rooms at a consistent temperature while minimizing energy use.

Whisper-Quiet Operation

• Whisper-Quiet: the inverter-driven condenser runs quietly for an unobtrusive presence outside your home.
• Smooth Ramping: variable-speed startups avoid the loud kick-on of traditional single-stage units.
• Compact Footprint: a compact outdoor unit fits neatly on patios, balconies, and tight side yards.
• Low Vibration: the inverter design keeps outdoor operating noise and vibration to a minimum.

Durability & Long-Term Protection

• Blue-Fin Coating: water-wicking blue-fin technology resists corrosion to extend the life of the coil.
• Weather-Resistant Build: engineered to protect internal components against the elements year-round.
• Pre-Charged Line Set: includes a 16 ft pre-charged line set that speeds up and simplifies professional installation.
• Single 3-Inch Pass-Through: the indoor and outdoor units connect through just one 3-inch hole in an exterior wall.

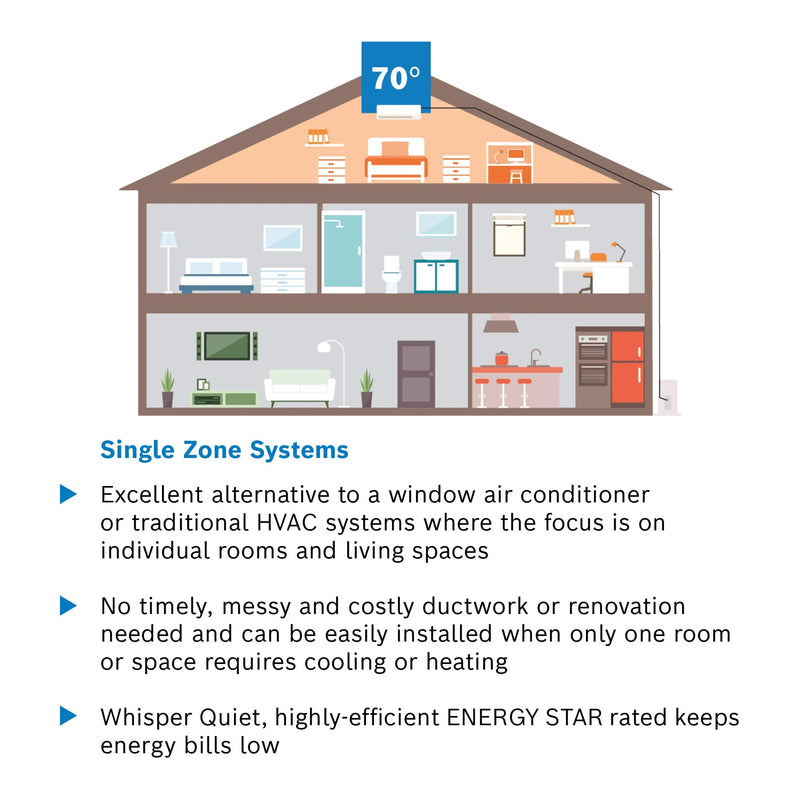

• No Ductwork: requires no ducting, making it ideal for additions, renovations, and enclosed spaces.

Warranty Coverage

• 7-Year Parts: replacement-parts coverage for 7 years, extending to 10 years when you register the system.
• 10-Year Compressor: a full decade of protection on the compressor, the heart of the system.
• Professional Installation: warranty coverage requires professional installation for lasting reliability.

With its durable design and advanced features like R-454B refrigerant and a SEER2 rating of 19.5, the outdoor condenser model BMS500-AAS009-1CSXRD is built to provide long-term performance and energy savings.

Bosch Climate 5000 Gen 4 9,000 BTU Wall Mount Air Handler - R-454B | 230V BMS500-AAU009-1AHWXD

The indoor wall-mounted air handler complements the outdoor unit with its compact design and user-friendly features. It includes an intelligent Eye occupancy sensor that automatically adjusts settings based on room activity, ensuring comfort while minimizing energy use.

Unmatched Energy Efficiency

• 19.5 SEER2: high seasonal cooling efficiency helps keep monthly energy costs down.
• 11 HSPF2: efficient heat-pump heating for cost-effective comfort in cooler weather.
• 12.8 EER2: strong efficiency under demanding peak-load conditions.
• ENERGY STAR Certified: recognized for efficiency that can help lower your utility bills.

Advanced Technology

• Intelligent Eye: an infrared sensor detects when the room is empty and lowers compressor speed to save energy.
• Automatic Humidity Control: actively manages humidity for a more comfortable indoor feel.
• Self-Cleaning Mode: keeps the internal unit fresh and helps maintain performance over time.
• Blue-Fin Technology: a water-wicking coil coating resists moisture and corrosion for longer life.

Enhanced Comfort & Quiet Operation

• Whisper-Quiet: low indoor sound levels keep the room peaceful day and night.
• Sleep Setting: gentle, quiet nighttime operation that will not disturb your rest.
• Follow-Me Mode: senses the temperature at the remote so comfort follows you around the room.
• Even Airflow: distributes conditioned air consistently across the entire space.
• Humidity Control: automatic dehumidification reduces that sticky, humid feeling.

Durable & Reliable

• Washable Filter: a reusable mesh filter is easy to rinse and reinstall, cutting maintenance costs.
• Corrosion-Resistant Coil: blue-fin coating protects the coil for a longer service life.
• Compact Wall Design: a slim wall-mounted profile blends into any room's decor.
• Built to Last: engineered for years of dependable daily heating and cooling.

User-Friendly Features

• Wireless Back-Lit Remote: adjust settings easily day or night with the included illuminated remote.
• Timer: schedule the system to turn on or off around your daily routine.
• Turbo: reach your target temperature quickly with a fast heating or cooling boost.
• Follow-Me: temperature is sensed at the remote for balanced comfort right where you are.
• Sleep & Silent: quiet comfort modes deliver restful nights and low-noise daytime operation.

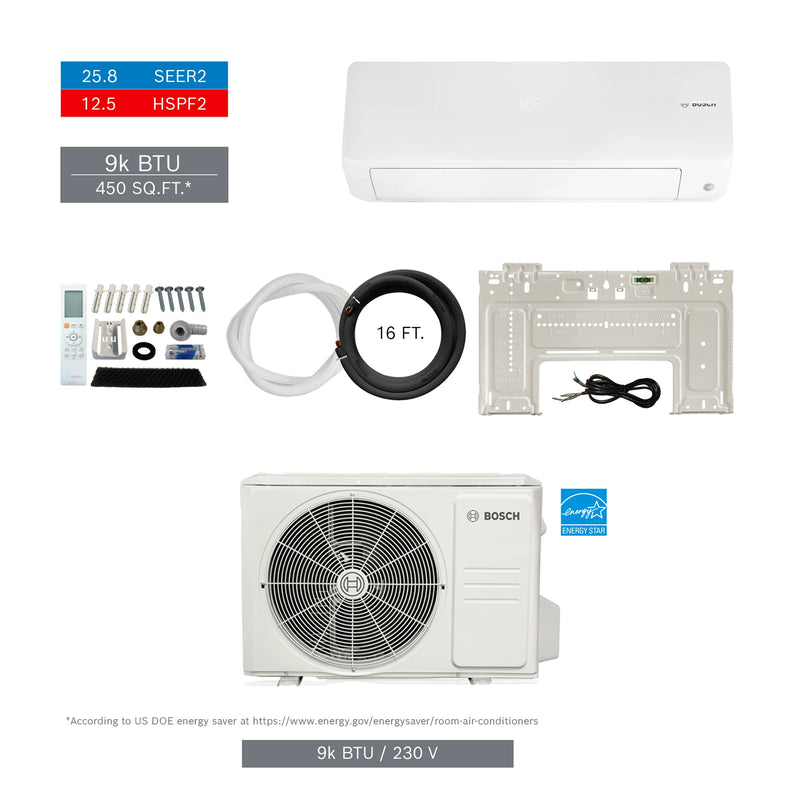

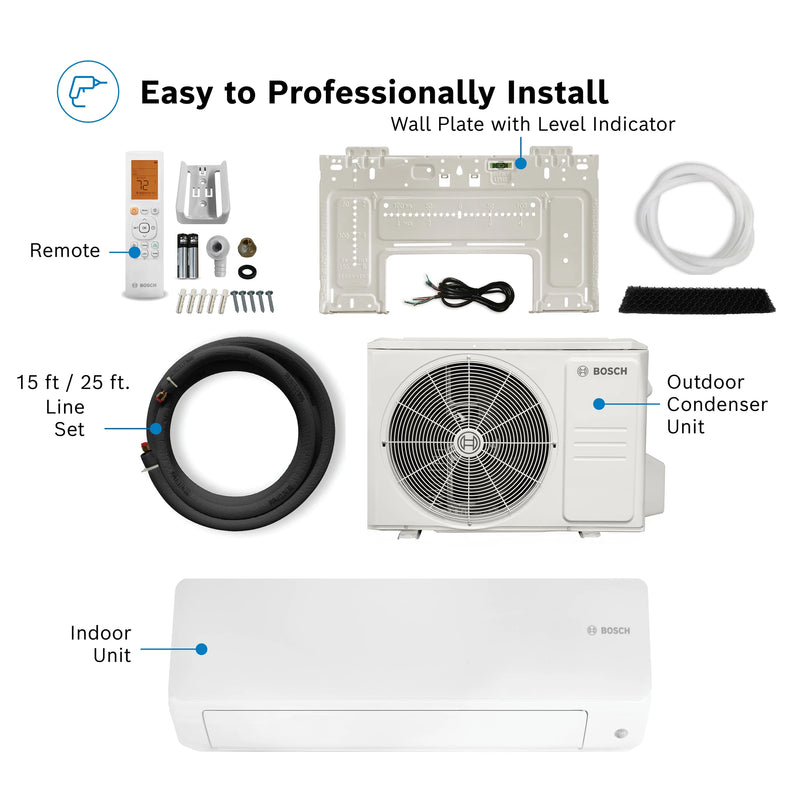

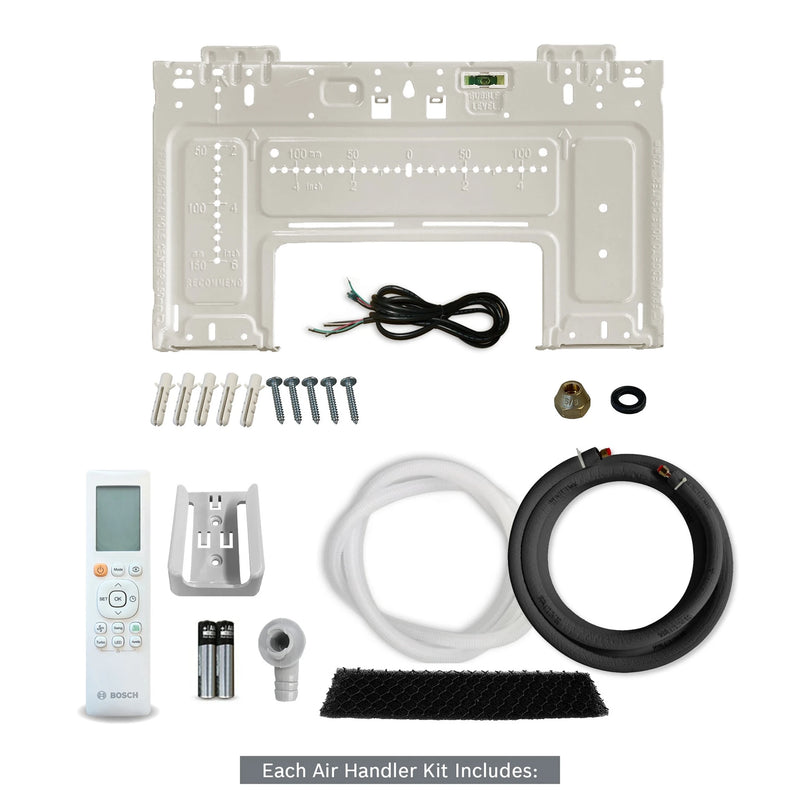

• LED Display & Complete Kit: an at-a-glance LED display, plus a kit with wall mounting bracket, hardware, communication cable, and remote wall mount.

Featuring a self-cleaning blue-fin system and a wireless back-lit remote control for easy access to all functions, the indoor unit model BMS500-AAU009-1AHWXD provides both convenience and superior air quality in your living space.
