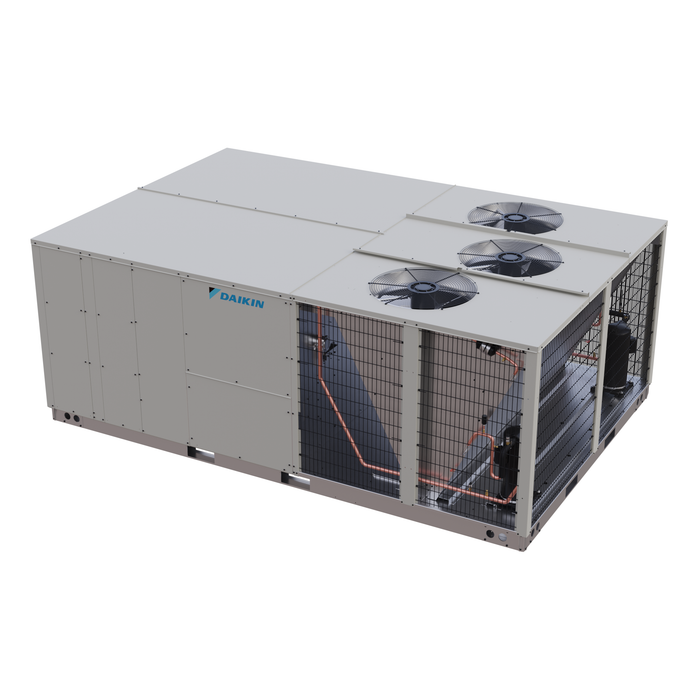

Daikin 20 Ton 360K BTU Commercial Gas Package Air Conditioner 460V 3 Phase

Daikin 20 Ton 360K BTU Commercial Gas Package Air Conditioner 460V 3 Phase

By Daikin | SKU: DSG2404DM00001S | ID: 060117
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$24,499.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Daikin 20 Ton 360K BTU Commercial Gas Package Air Conditioner 460V 3 Phase DSG2404DM00001S

The Daikin DSG Commercial Gas Packaged Air Conditioner delivers powerful, energy-efficient cooling and heating performance in a single, self-contained rooftop or ground-level unit. Backed by Daikin’s legacy of HVAC innovation and manufacturing excellence since 1951, this system is engineered for high-performance comfort, reliability, and long-term value in commercial applications. Designed for easy installation and minimal maintenance, the DSG unit is ideal for new construction or direct replacement of existing rooftop systems—often without the need for a curb adapter.

Key Features:

  • High-Efficiency Scroll Compressors: Equipped with low-noise, dual-stage scroll compressors for precise part-load control and enhanced energy savings.
  • Factory-Mounted Vibration Isolation: Compressors are resiliently mounted on rubber grommets to reduce vibration and operating noise.
  • R32 Refrigerant: Pre-charged with low GWP, chlorine-free R32 refrigerant for eco-friendly and efficient operation.
  • Independent Refrigerant Circuits: Dual single-stage compressors with individual circuits offer operational flexibility and system redundancy.
  • Enhanced Coil Performance: Microchannel condenser coils and copper tube/aluminum fin evaporator coils maximize heat exchange and lower refrigerant charge.
  • Advanced Gas Heat Exchanger: ETL-certified gas furnace with tubular design and Wrinkle Bend Technology for greater durability, better heat transfer, and minimized failure risk.
  • Two-Stage Heating Capability: Automatically adjusts heating output to meet varying indoor load demands efficiently.
  • Induced Draft Design: Heat exchanger features induced draft fans to manage flue gas safely and maintain indoor air quality.
  • Reliable Safety Features: Includes flame roll-out switches, high-temperature limit switches, and airflow safety sensors for occupant and system protection.

Performance & Construction Highlights:

  • Draw-Through Airflow: Optimized for better dehumidification and temperature control.
  • Direct Drive EEM Fan Motors: Ball-bearing, beltless fans eliminate the need for lubrication and reduce maintenance costs.
  • High-Static Drive Options: Built to handle high airflow and static pressure environments with ease.
  • Built-in Filter Rack: Accepts standard 2” filters with tool-less access for quick replacements and long-lasting maintenance.
  • Fully Insulated Cabinet: Foil-faced fiberglass insulation prevents sweating and thermal loss while keeping the airflow fiber-free.
  • Durable Steel Cabinet: Heavy-gauge galvanized steel with UV-resistant powder-coat finish ensures weather resistance and long operational life.
  • Color-Coded Wiring: Factory-wired for fast, clear installation; includes 24V terminal strips for low-voltage connections.

Installation & Compatibility:

  • Retrofit Ready: Built as a direct rooftop unit replacement for most standard models—no curb adapter required.
  • Multi-Application Design: Supports both downflow and horizontal airflow configurations.
  • Single-Point Power Entry: Simplifies electrical setup and speeds up install times.

Ideal for:

  • Retail Stores
  • Office Buildings
  • Warehouses & Industrial Spaces
  • Schools & Institutional Buildings
  • Light to Medium Commercial Applications

From advanced heat exchanger technology to eco-conscious refrigerant and precision part-load control, the Daikin DSG Commercial Gas Packaged Air Conditioner delivers unmatched performance and reliability for demanding commercial environments. Trust Daikin to bring innovation, efficiency, and comfort to your HVAC system.

Upgrade your commercial rooftop system with Daikin — where reliability meets cutting-edge HVAC technology.

Specifications

Daikin 20 Ton 360K BTU Commercial Gas Package Air Conditioner 460V 3 Phase DSG2404DM00001S

Brand Daikin SKU DSG2404DM00001S
Replaces DFG2404DM00001S Type Gas Heat
Heat Range Medium No. of Burners 8
High Stage Input / Output (KBTU/H) 360 / 291.6 Tonnage 20.0 Ton
Cooling BTU 230,000 Cooling Stage(s) 2
Compressor Stage Single Motor Type Direct Drive
Voltage 460V Electrical Phase(s) 3-Phase
Amp(s) 60 Maximum CFM 6,500
Refrigerant Type R-32 Height (Inches) 51
Length (Inches) 133 7/8 Width (Inches) 88 1/2
Total Shipping Weight (lbs.) 2,294 UPC # 633190264824
Parts Warranty (Years) 5 Compressor Warranty (Years) 5
Warranty

Daikin 20 Ton 360K BTU Commercial Gas Package Air Conditioner 460V 3 Phase DSG2404DM00001S

Warranty Type Parts Heat Exchanger
Standard Warranty 5 Years 5 Years
Registered Warranty 5 Years 20 Years
Documents

Daikin 20 Ton 360K BTU Commercial Gas Package Air Conditioner 460V 3 Phase DSG2404DM00001S

Daikin Brochure R32

Daikin Catalog R32

DSG 15-25 Ton Spec Sheet

DSG 15-25 Ton Installation Manual

Commercial Warranty
