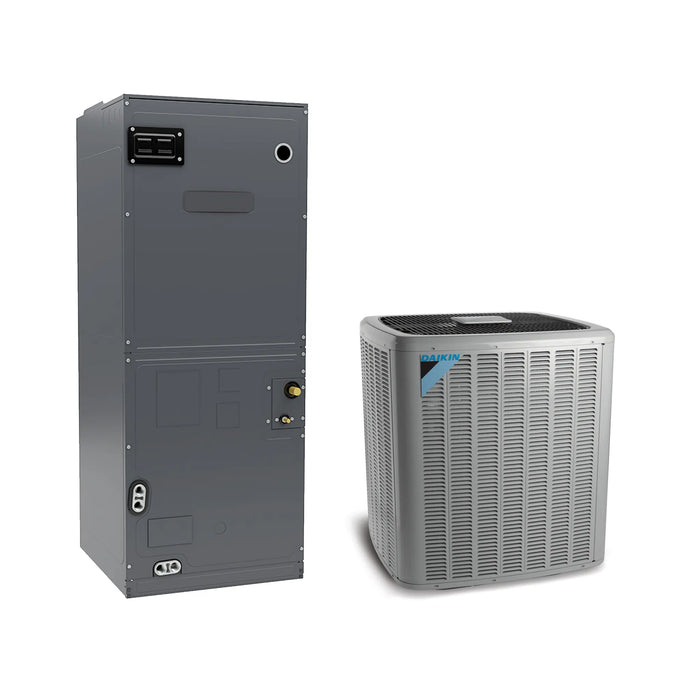

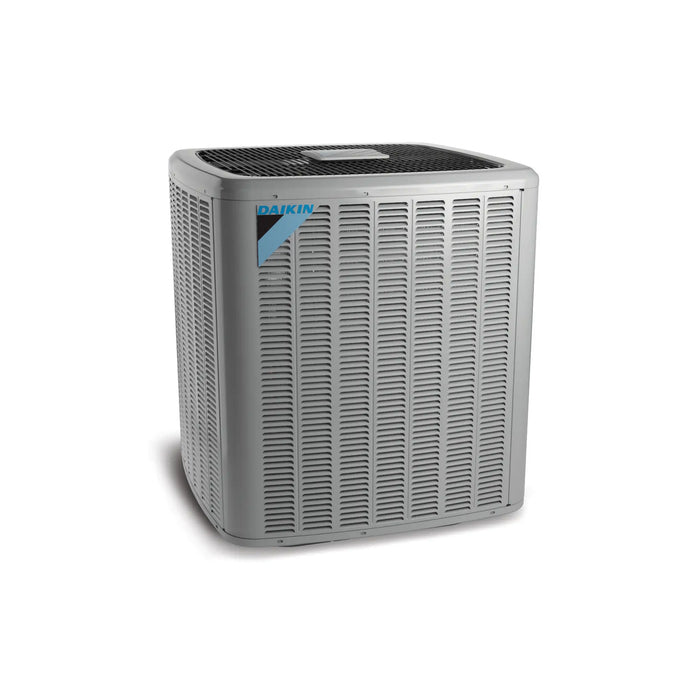

Daikin 3 Ton 14.3 SEER2 Commercial Split Heat Pump 208/230V 3 Phase R32 DH4SEA3630
The 3 Ton Daikin R32 Heat Pump Split System is a highly efficient, commercial-grade climate control solution designed for 208/230V 3-phase electrical systems. With a 14.3 SEER2 cooling efficiency, this system delivers reliable and energy-efficient performance, ensuring optimal comfort in both cooling and heating modes. Utilizing advanced R32 refrigerant technology, it offers enhanced energy savings while minimizing environmental impact. Ideal for commercial applications, this heat pump provides sustainable, long-lasting comfort, making it a perfect choice for businesses seeking dependable, eco-friendly temperature control.
- Energy Star Certified: No
- Refrigerant Type: R-32
- SEER 2: 14.3
- Unit Height: 36.6 in
- Unit Width: 35.5 in
- Communication Feature Type: Non-Communicating
- Cooling Capacity Nominal: 36000 Btu/H
- Max Overcurrent Protection: 20 A
- Power Phase: 3 Ph
- Power Voltage: 208/230 V
- Compressor Stages: Single Stage
- Compressor Type: Scroll
- Unit Weight: 198 lb
- Tonnage: 3
- Unit Depth: 35.5 in
Standard Features:
-
High-efficiency Copeland® scroll compressor for superior cooling performance
-
Advanced Copeland® CoreSense™ technology for improved diagnostics and system protection
-
Enhanced aluminum fin coil with 5mm diameter copper tubes for 3-ton capacity models
-
Enhanced aluminum fin coil with 7mm diameter copper tubes for 4.0- to 5.0-ton capacity models
-
Time-delay technology for quieter, more reliable defrost cycles
-
Factory-installed bi-flow liquid line filter drier to maintain refrigerant quality
-
Factory-installed suction line accumulator for enhanced system protection
-
Factory-installed compressor crank case heater to prevent oil migration
-
Factory-installed high-capacity muffler for reduced operational noise
-
High- and low-pressure switches for system safety and performance
-
Service valves with sweat connections for easy gauge port access and efficient servicing
-
Fully enclosed contactor with lug connection for durability and reliability
-
Fully charged for 15’ of tubing length for easier installation
-
High-density foam compressor sound blanket (1.5-2.0T models) to reduce noise levels
-
Capacitors with extended life for improved system longevity
-
AHRI Certified and ETL Listed for reliable, industry-standard performance
Cabinet Features:
-
Removable grille-style top design compliant with UL 60335-2-40 for safety
-
Venturi design for increased airflow velocity and energy efficiency
-
Custom Nickel Gray powder-paint finish with 500-hour salt-spray approval for superior durability
-
Steel louver coil guard with rust-resistant screws for long-lasting protection
-
Wire fan discharge grille for efficient airflow and enhanced performance
-
Steel louver coil guard for added protection against external damage
-
Rust-resistant screws for improved longevity and reliability
-
Top and side maintenance access for easier serviceability
-
Single-panel access to controls with space for field-installed accessories for added flexibility

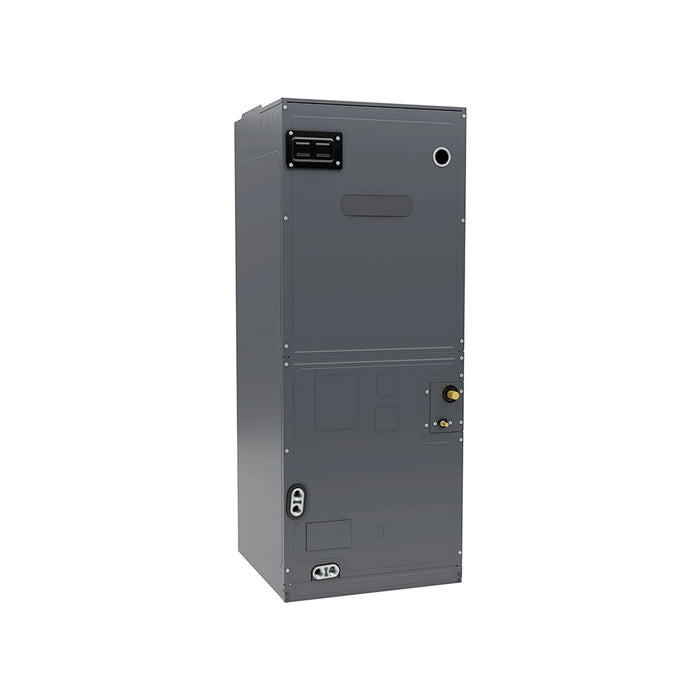

Goodman 3 Ton Central Air Handler Multi-Speed Multi-Positional 21"W R32 AMST36CU1300
Goodman AMST36CU1300 3 Ton Air Handler | High-Efficiency Comfort for Your Home
The Goodman AMST36CU1300 air handler is engineered for superior performance, energy efficiency, and long-term durability. Featuring a direct drive ECM blower motor, this 3-ton air handler delivers consistent airflow and enhanced comfort while maintaining low energy consumption. Designed with flexibility in mind, the AMST36CU1300 is ideal for a wide range of HVAC applications, offering cost-effective comfort without sacrificing reliability or quality.
Product Features:
-
3 Ton Air Handler: Perfect for larger homes or commercial spaces, providing optimal performance and energy efficiency for efficient heating and cooling.
-
Electric Heat Compatible: Can be equipped with heat strips for straight electric heating, functioning as an electric furnace or as a backup heat source for a heat pump system.
-
Optimized for R-32 Refrigerant: Designed to use eco-friendly R-32 refrigerant, promoting sustainability while enhancing system efficiency and reducing environmental impact.
-
Multi-Speed ECM Blower Motor: Provides precise temperature control and consistent airflow, improving comfort and reducing energy usage.
-
Multi-Positional Installation: This air handler can be installed in upflow, downflow, or horizontal orientations, providing versatile installation options for various system configurations.
-
Heavy-Duty Cabinet: Constructed with a heavy-gauge metal cabinet and all-aluminum evaporator, the unit is built to withstand wear and tear, ensuring long-term durability and performance.
-
Easy Installation: SmartFrame technology and special mounting features allow for quick and easy installation in a variety of settings.
-
Maintenance-Friendly: Two front access panels simplify routine maintenance and provide quick access to critical components for servicing.
Durability and Reliability
The Goodman AMST36CU1300 is constructed with high-quality materials to ensure reliability and longevity. The all-aluminum evaporator and heavy-gauge metal cabinet protect the unit from wear, corrosion, and other damage, ensuring it operates efficiently and effectively for years to come.
Enhanced Comfort
With its multi-speed ECM blower motor, the AMST36CU1300 ensures precise control over your home’s temperature. Whether you're cooling in the summer or heating in the winter, this air handler delivers consistent, efficient comfort throughout your home or business, all while keeping energy consumption low.
Warranty Information
The Goodman AMST36CU1300 comes with a 10-year parts warranty (when registered online) for your peace of mind. Ensure that the installation complies with all local and state codes, and pair the unit with an approved condenser to maintain warranty coverage.
Why Choose the Goodman AMST36CU1300?
-
Energy-Efficient: With a multi-speed ECM blower motor and R-32 refrigerant, this air handler delivers cost-effective comfort while reducing energy consumption.
-
Flexible Installation: The multi-positional design allows for upflow, downflow, or horizontal installation, providing compatibility with a wide range of HVAC setups.
-
Durability and Longevity: The heavy-duty cabinet and all-aluminum evaporator ensure that your system stands up to wear and tear, providing reliable performance over time.
-
Easy Maintenance: SmartFrame technology and front access panels make installation and maintenance straightforward and hassle-free.
