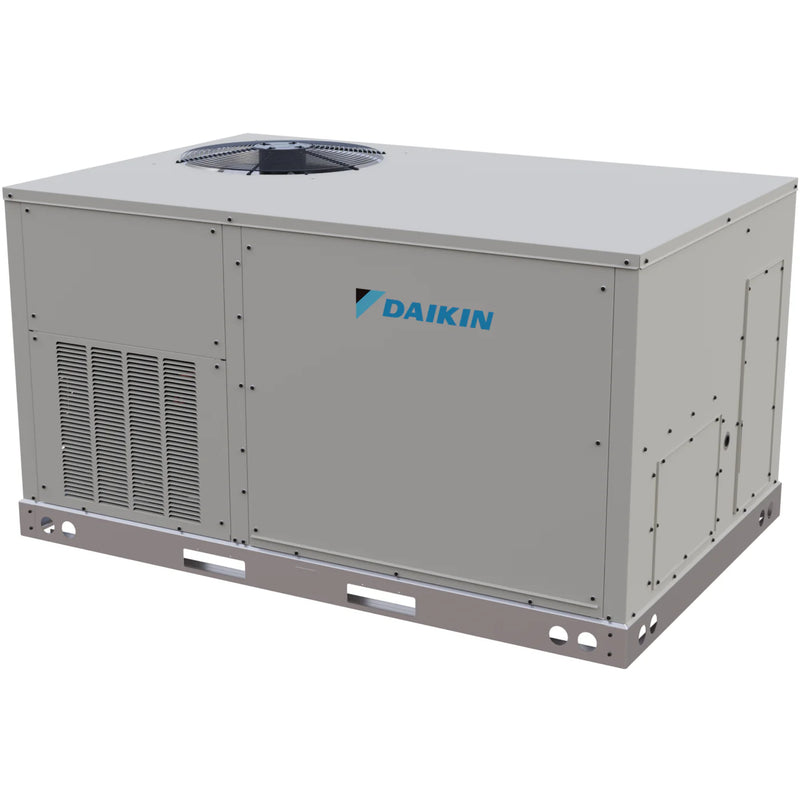

Daikin 5 Ton 16.8 SEER2 R-32 High-Efficiency Commercial Package Heat Pump

Name: Daikin 5 Ton 16.8 SEER2 R-32 High-Efficiency Commercial Package Heat Pump
Brand: Daikin
SKU: DHH0601D000001S
Price: 6847.0 USD
Availability: InStock
Rating: 5 (6 reviews)

By Daikin | Model: DHH0601D000001S | ID: 60345

✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$6,847.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

Daikin 5 Ton 16.8 SEER2 R-32 High-Efficiency Commercial Package Heat Pump

The Daikin DHH Commercial Packaged Heat Pump delivers high-efficiency cooling and heating in one self-contained unit. Designed for both new construction and retrofit applications, it features fast, easy installation and direct replacement capability for most rooftop units—often without the need for a curb adapter.

Since 1951, when Daikin became the first Japanese manufacturer of packaged air conditioning systems, the company has been a global leader in HVAC systems and refrigerant technology. As one of the world’s largest HVAC manufacturers, Daikin remains committed to innovation, sustainability, and indoor comfort.

Standard Features

High-performance, low-noise scroll compressors sized to match required load
Factory-mounted on rubber grommets for vibration isolation
DHH
Refrigeration circuit includes high and low pressure safety switches
Factory-charged with low GWP, environmentally friendly R-32 refrigerant
Two-stage scroll compressor for partial load efficiency
Compressor mounted outside the condenser section to prevent air bypass
Direct-Drive airfoil SWSI (single width, single inlet) Class II supply fan with aluminum blades
Continuously welded fan wheel for long-lasting, reliable performance
Direct-drive ECM motor eliminates belts, sheaves, and bearings, reducing maintenance
Fan assemblies are dynamically balanced at the factory for efficient startup
Motors include thermal overload protection
Indoor coil section in draw-through configuration for improved dehumidification
Seamless copper tube/aluminum fin evaporator coils with full drawn collars for high efficiency
Factory pressure-tested coils ensure leak-free operation
All units include large face area outdoor coils for greater capacity
Reversing valve automatically changes between heating and cooling modes
Thermal expansion valve on outdoor coil controls refrigerant during heat pump operation
Hybrid heating option included for auxiliary heat support
Microchannel condenser coils for better performance and reduced refrigerant usage
Factory-wired with color-coded wires and 24V electromechanical controls
Single-point power entry simplifies electrical setup
Terminal strips for quick, low-voltage wiring connections
Standard draw-through filter section improves air quality and ease of maintenance
Filters use standard sizes for convenient replacement

Cabinet Features

Tool-less access for easy filter replacement and serviceability
Fully insulated cabinet with foil-faced fiberglass insulation to prevent sweating and reduce thermal loss
1-inch raised flanges around supply and return connections
Heavy-gauge galvanized steel perimeter base rail with 3.5-inch height for structural strength
Base rail includes holes for forklift and overhead rigging
Electrical line access available via unit base or horizontal knockout for flexible installation

The Daikin DHH Packaged Rooftop Heat Pump is engineered to deliver optimal energy performance, installation ease, and long-term reliability. Its innovative design and superior components make it an excellent solution for commercial HVAC projects.

Specifications

Daikin 5 Ton 16.8 SEER2 R-32 High-Efficiency Commercial Package Heat Pump

Brand	Daikin	Model Number	DHH0601D000001S
Type	Heat Pump	Ton	5.0 Ton
Cooling Btu	60,000	Heating Btu	59,000
Cooling Stage(s)	2	Heating Stage(s)	2
Compressor Stage	Two	Electrical Voltage \| Phase(s)	208/230V \| 1-Phase
Amp(s)	70	Maximum CFM	1,950
Refrigerant Type	R-32	Height (Inches)	43 1/2
Length (Inches)	74	Width (Inches)	47 5/8
Total Shipping Weight (lbs.)	688	Parts Warranty (Years)	5
Compressor Warranty (Years)	5	UPC #	633190263797

Warranty

Daikin 5 Ton 16.8 SEER2 R-32 High-Efficiency Commercial Package Heat Pump

Warranty Type	Residential	Multi-Family	Commercial
Standard Warranty	5 year parts	5 year parts	5 year parts
Registered Warranty	10 year parts	10 year parts	5 year parts

Documents

Daikin 5 Ton 16.8 SEER2 R-32 High-Efficiency Commercial Package Heat Pump

Spec Sheet

Installation Guide

Limited Warranty

Roof Curb Fit Guide for Daikin Commercial HVAC Products

Consumer Brochure
