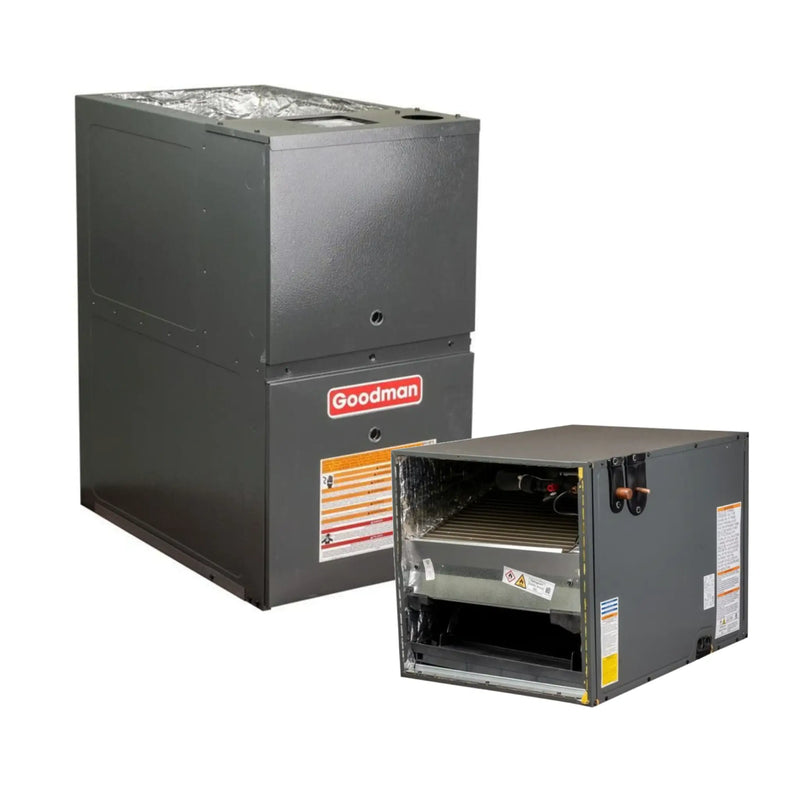

Goodman 1.5 Ton Furnace And Coil System 80% AFUE 60,000 BTU Horizontal R32

Name: Goodman 1.5 Ton Furnace And Coil System 80% AFUE 60,000 BTU Horizontal R32
Brand: Goodman
SKU: GR9S800603AN CHPTA1822A3
Price: 1946.0 USD
Availability: InStock
Rating: 5 (6 reviews)

By Goodman | Model: GR9S800603AN CHPTA1822A3 | ID: 101474

✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$1,946.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

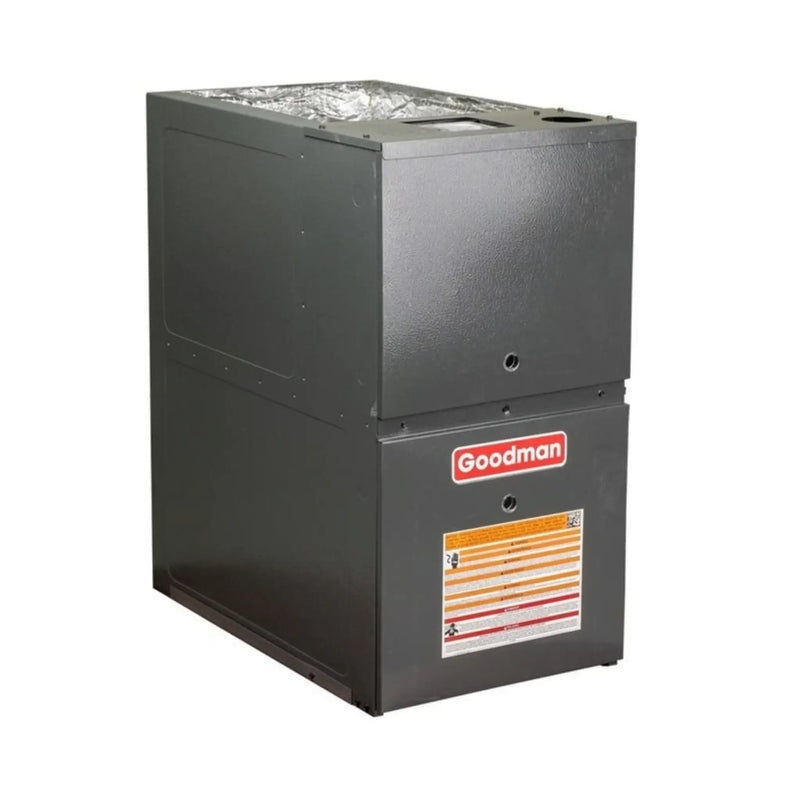

Goodman 80% AFUE 60,000 BTU Gas Furnace Single Stage 14"W Upflow/Horizontal GR9S800603AN

The Goodman GR9S800603AN is a 60,000 BTU, single-stage gas furnace designed to deliver dependable comfort for small to medium-sized homes. With an 80% AFUE rating, this unit converts 80% of fuel into usable heat, providing up to 48,000 BTUs of output. Equipped with a 9-speed ECM blower motor and a durable heat exchanger, the GR9S800603AN offers greater efficiency, quieter operation, and a longer lifespan. Its flexible installation options and energy-saving features make it a cost-effective choice for homeowners looking to enhance comfort without overspending.

Key Features

60,000 BTU Heating Capacity - Provides 48,000 BTUs of output, ideal for heating small to medium-sized homes
80% AFUE Efficiency - Converts 80% of fuel into heat, meeting standard efficiency requirements while requiring metal flue venting
Single-Stage Heating - Operates at full output when activated, offering reliable and consistent heating performance
9-Speed ECM Blower Motor - Enhances air circulation, reduces energy consumption, and operates more quietly than PSC motors
Natural Gas or Propane Compatible - Ships configured for natural gas and can be converted to LP with an optional conversion kit
Upflow or Horizontal Installation - Flexible design supports installation in upflow or horizontal positions for versatile applications
Durable Hot Surface Igniter - Increases ignition reliability and minimizes maintenance compared to older ignition systems
Self-Diagnostic Control Board - Built-in sensors help monitor system status, making troubleshooting and maintenance easier
Heavy-Gauge Steel Cabinet - Protects internal components, reduces heat loss, and minimizes noise during operation
Ease of Installation - Includes color-coded low-voltage terminals and universal configuration to simplify setup and reduce labor time
10-Year Parts and Lifetime Heat Exchanger Warranty - Backed by Goodman with online registration and proper installation

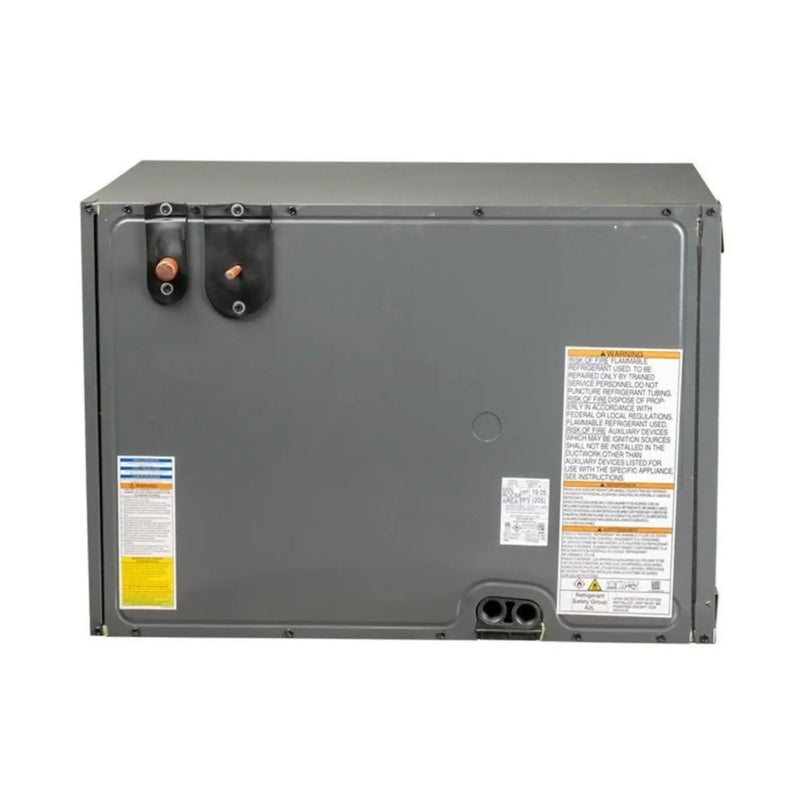

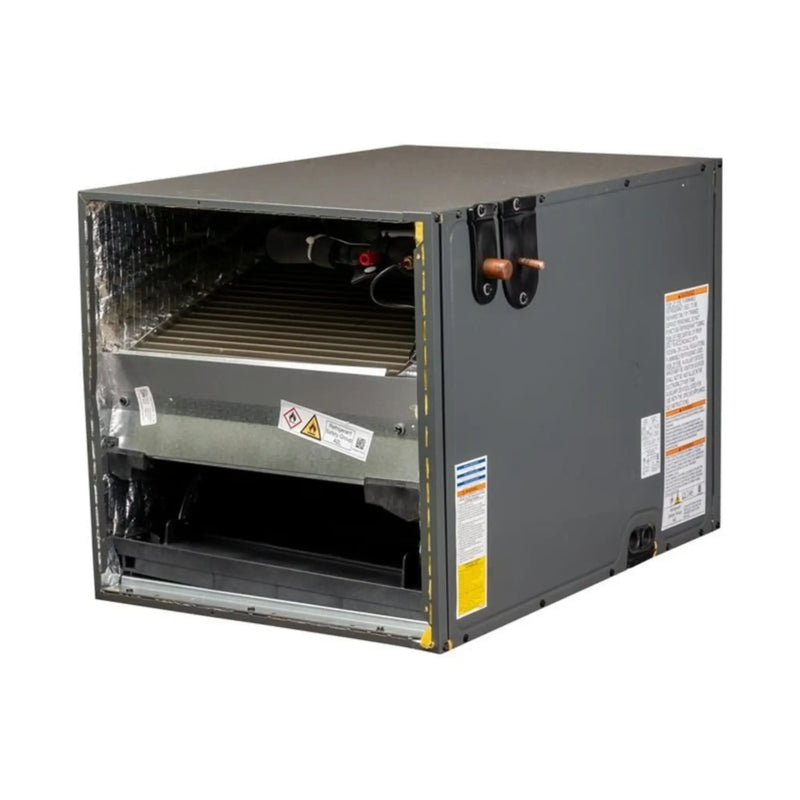

Goodman 1.5 Ton Evaporator Coil Cased Horizontal With 14"H Cabinet TXV R32 CHPTA1822A3

The Goodman CHPTA1822A3 is a 1.5 ton horizontal evaporator coil engineered for superior comfort and long-lasting performance. Featuring an all-aluminum coil design and a factory-installed TXV kit, this model enhances system efficiency while maintaining precise refrigerant control. Designed for horizontal applications, the CHPTA1822A3 can be used with both heat pump and AC-only systems. Its durable, galvanized steel cabinet with foil-faced insulation prevents air leakage, while its mold-resistant drain pan and easy-access design make it both reliable and serviceable.

Key Features

1.5 Ton Cooling Capacity - Supports horizontal HVAC applications requiring 1.5 tons of cooling output, ideal for smaller homes or spaces
Horizontal Installation - Designed specifically for horizontal airflow setups, making it suitable for tight or low-clearance areas
All-Aluminum Coil Construction - Improves durability and corrosion resistance while optimizing heat transfer efficiency
Factory-Installed TXV Kit - Increases refrigerant control and system efficiency for more consistent comfort and reduced energy usage
Heat Pump and AC-Compatible - Can be paired with either heat pump systems or AC-only condensers for versatile installations
R32 Refrigerant Compatibility - Complies with Clean Air Act requirements for modern refrigerants
Galvanized, Embossed Cabinet - Features foil-faced insulation to minimize air leakage and increase unit longevity
Split-Seam Access Panel - Simplifies maintenance and service access with a front panel design
Mold-Resistant Drain Pan - Thermoplastic, rust-resistant drain pan helps reduce mold and bacteria buildup
10-Year Limited Warranty - Covered by Goodman's 10-year parts warranty with proper installation and registration

View More Coil Systems

Specifications

Goodman 80% AFUE 60,000 BTU Gas Furnace Single Stage 14"W Upflow/Horizontal GR9S800603AN

Brand	Goodman	SKU	GR9S800603AN
Weight (in lbs)	90	Manufacturer	Goodman
Replaces	GM9S800603AN	AHRI Certificate Number	215358047
Airflow Direction	Upflow/Horizontal	Exhaust Flue Requirement	Metal
Product Features	New Refrigerant Compliant	Furnace Efficiency / AFUE	80%
Heating BTU	60,000	Blower Motor	9 Speed - ECM
Maximum CFM	1600	Configuration	Upflow/Horizontal
Electrical	115 V. 1 Phase 60 Hz	Max Breaker Size	15 Amps
Min. Breaker Size	7.7 Amps	Burner Stages	Single
Fuel Type	Propane, Natural Gas	Height	33 3/8"
Width	14"	Depth	28"
Warranty	Lifetime Heat Exchanger and 10 Years Parts with Online Registration

Goodman 1.5 Ton Evaporator Coil Cased Horizontal With 14"H Cabinet TXV R32 CHPTA1822A3

Brand	Goodman	SKU	CHPTA1822A3
Tonnage	1.5 Ton	Weight (in lbs)	46
Manufacturer	Goodman	Replaces	CHPTA1822A4
Product Features	New Refrigerant Compliant	Configuration	Horizontal
Refrigerant	R32	Liquid Line	3/8"
Suction Line	3/4"	Style	A-Coil
Certification	ETL Listed \| AHRI Certified	Height	14"
Width	22"	Depth	21"
Warranty	10 Years Parts with Online Registration

Warranty

Goodman 80% AFUE 60,000 BTU Gas Furnace Single Stage 14"W Upflow/Horizontal GR9S800603AN

Warranty Type	Heat Exchanger	Parts
Standard Warranty	5 years	5 years
Registered Warranty	Lifetime	10 years

Goodman 1.5 Ton Evaporator Coil Cased Horizontal With 14"H Cabinet TXV R32 CHPTA1822A3

Warranty Type	Parts
Standard Warranty	5 years
Registered Warranty	10 years

Documents

Goodman 80% AFUE 60,000 BTU Gas Furnace Single Stage 14"W Upflow/Horizontal GR9S800603AN

GR9S80 Installation Manual

GR9S80 Specifications Sheet

Goodman Furnace Warranty

Goodman 1.5 Ton Evaporator Coil Cased Horizontal With 14"H Cabinet TXV R32 CHPTA1822A3

CHPTA Installation Manual

CHPTA Specifications Sheet

CHPTA Service Manual

Goodman Evaporator Coil Warranty
