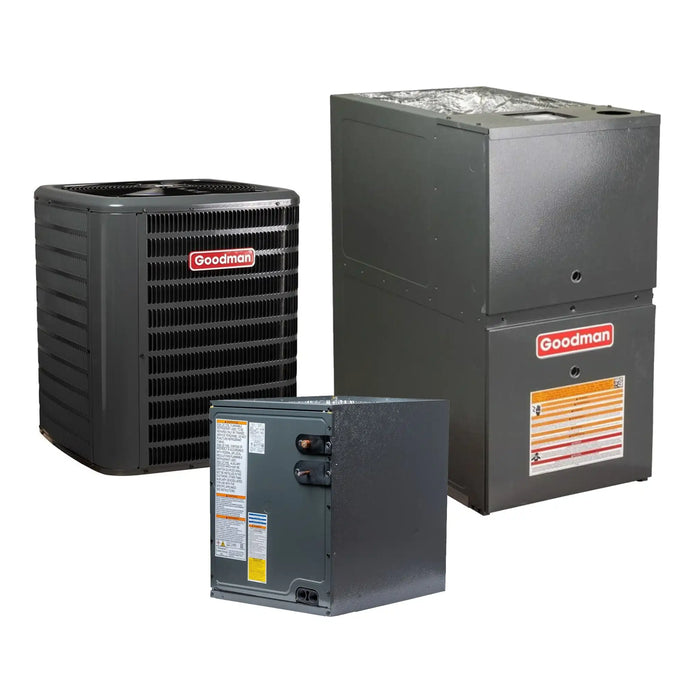

Goodman 2.5 Ton 14.3 SEER2 Air Conditioner Condenser Multi-Family R32 GLXS4MA3010
The air conditioning unit features a high-efficiency scroll compressor and a factory-installed filter drier. It is fully charged for 15 feet of tubing length and includes a 5mm diameter copper tube with an enhanced aluminum fin coil. The unit is equipped with service valves that have sweat connections and easy-to-access gauge ports, an enclosed contactor, a ground lug connection, and capacitors designed for extended life. It also includes a high-pressure switch and is both AHRI Certified and ETL Listed.
The cabinet is designed with a removable grille-style top that complies with UL 60335-2-40. It is constructed from heavy-gauge galvanized steel and features a venturi to increase airflow velocity. The attractive Architectural Gray powder-paint finish is approved for 500-hour salt-spray exposure. Additional features include a steel louver coil guard, single-panel access to controls with space for field-installed accessories, and compliance with the 2020 Florida Building Code for hurricane-type winds when properly anchored.
- New R32 Freon, meets the 2025 refrigerant change guidelines.
- High-Efficiency Scroll Compressor
- Factory-installed filter drier
- Fully charged for 15’ of tubing length
- 5mm diameter copper tube/enhanced aluminum fin coil
- Service valves with sweat connections and easy-to-access gauge ports
- Enclosed contactor with lug connection
- Ground lug connection
- High-pressure switch
- Top and side maintenance access
- Single-panel access to controls, with space for field-installed accessories
- Meets 2023 Florida Building Code requirements for hurricane-type winds when properly anchored
Goodman 80000 BTU 80% Gas Furnace Ultra-Low NOx 9-Speed Single Stage Upflow GR9S800805CU
The Goodman GR9S800805CU Gas Furnace offers superior heating performance with a high-efficiency design that keeps your home comfortable and your energy bills low. Featuring Goodman's advanced heat exchanger design, this single-stage, multi-speed furnace is perfect for homeowners looking for a reliable, energy-efficient heating solution. If you're looking for an affordable yet high-quality furnace, the GR9S800805CU is the ideal choice.
Key Features
-
80,000 BTU – Suitable for heating medium-sized homes, depending on the climate
-
80% Efficiency Rating – Converts 80% of the gas input into heat, with only 20% lost through flue venting
-
Ultra-Low NOx Compliant – Meets California’s stringent emission regulations
-
Requires Metal Flue Venting – Standard for all 80% efficient furnaces
-
Single Stage Furnace – Simple and efficient operation with 100% output when heating is needed
-
Multi-Speed ECM Blower Motor – Efficient motor design with smarter air circulation to save energy
-
10-Year Parts and Lifetime Heat Exchanger Warranty – Comprehensive warranty for peace of mind
-
Durable Hot Surface Igniter – More reliable and efficient than traditional ignition systems
-
Self-Diagnostic Control Board – Easy troubleshooting with built-in sensors for basic maintenance alerts
-
Heavy Gauge Steel Cabinet – Provides durable, quieter operation while retaining heat more effectively
80,000 BTU Performance
The Goodman GR9S800805CU furnace offers an 80,000 BTU input, producing 64,000 BTU’s of heat per hour (80,000 x 80% AFUE). This makes it suitable for heating medium-sized homes in moderate climates. The furnace is an excellent choice for those looking to balance performance and efficiency without overspending on energy costs.
80% Efficiency Rating
With an 80% Annual Fuel Utilization Efficiency (AFUE) rating, the GR9S800805CU ensures that 80% of the gas burned is converted into usable heat, and only 20% is lost through the venting system. This level of efficiency is typical for standard furnaces and is ideal for those seeking a reliable heating system without needing to upgrade to higher efficiency models.
Single Stage Furnace
The Goodman GR9S800805CU operates as a single-stage furnace, meaning it always operates at 100% capacity when the thermostat calls for heat. This straightforward design provides reliable heating with a simple on/off operation, making it an excellent choice for users who prefer efficiency without the complexity of multi-stage systems.
Multi-Speed ECM Blower Motor
Unlike traditional PSC motors, the 9-speed ECM blower motor on the GR9S800805CU uses less power and provides more efficient air circulation. This helps improve overall energy efficiency and reduces your electrical consumption, lowering your utility bills while keeping your home warm.
Durable Hot Surface Igniter
The GR9S800805CU furnace is equipped with a durable hot surface igniter, which is more reliable and energy-efficient than older ignition systems. This component significantly reduces maintenance costs and provides faster, more efficient ignition to get your furnace up and running quickly.
Self-Diagnostic Control Board
Thanks to the self-diagnostic control board, this furnace allows for easy troubleshooting and maintenance. The control board includes built-in sensors that can detect basic issues, alerting you to the need for maintenance or warranty work. This improves the overall safety and reliability of the furnace and helps avoid potential system failures.
Heavy Gauge Steel Cabinet
The furnace’s heavy gauge steel cabinet ensures that the internal components are well-protected, allowing for a longer lifespan. Additionally, this design helps make the unit more airtight, improving its energy efficiency by reducing heat loss and minimizing noise during operation.
Ease of Installation
The Goodman GR9S800805CU is designed for easy installation, offering flexibility with its ability to be installed in either upflow or horizontal configurations. This makes it suitable for a variety of home layouts, whether you need it in your attic, basement, or utility closet. The furnace also features color-coded low-voltage terminals for a simpler, quicker installation process, reducing labor costs and installation time.
Warranty and Reliability
For added peace of mind, the Goodman GR9S800805CU furnace comes with a 10-year parts warranty and a lifetime heat exchanger warranty when registered online. This extensive coverage ensures that your furnace will continue to provide reliable heating for years to come, backed by Goodman’s reputation for durability and performance.

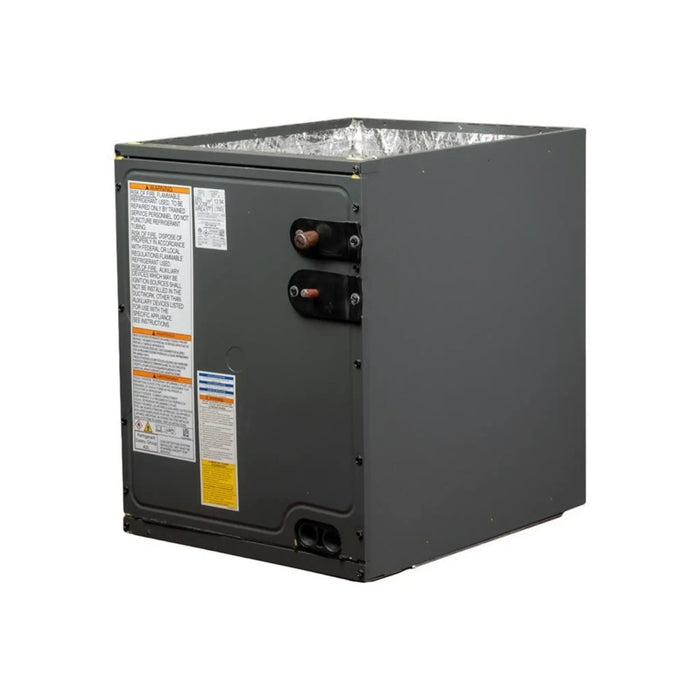

Goodman 2.5 Ton Cased Evaporator Coil Vertical 21"W Cabinet with TXV R32 CAPTA3026C3
This evaporator coil is a high-performance, all-aluminum unit specifically designed for R-32 refrigerant, featuring integrated thermal expansion valves for both cooling and heat pump applications. It offers flexible installation options with vertical and horizontal models, and its 21-inch depth facilitates easier access in attic spaces. The coil is equipped with a foil-faced insulation to reduce condensation and includes a rust-resistant, UV-resistant drain pan with additional drainage connections. Its durable galvanized finish and easy-to-remove drain pan rails enhance both longevity and maintenance convenience. Certified by AHRI and listed by ETL, this coil combines efficiency, durability, and ease of use for a reliable HVAC solution.
Product Features:
-
Optimized for R-32 Refrigerant: Designed specifically for R-32 refrigerant with advanced circuits and manifolds to maximize system efficiency and performance.
-
R-32 Sensor for Coil Longevity: The R-32 sensor is built to extend the lifespan of the coil, ensuring reliable operation and long-term durability.
-
Factory-Installed Thermal Expansion Valves (CAPTA & CHPTA Models): CAPTA and CHPTA models come with factory-installed thermal expansion valves for both cooling and heat pump applications, ensuring optimal refrigerant flow.
-
Standardized Copper Suction Tube Stub Length: Features a standardized copper suction tube stub length for seamless installation and consistent system performance.
-
Convenient Single Front Access Panel (CAPTA & CHPTA Models): The CAPTA and CHPTA models are equipped with a single front access panel, making maintenance and servicing quick and easy.
-
Foil-Faced Insulation for Condensation Control: Foil-faced insulation reduces cabinet condensation, enhancing system energy efficiency and preventing moisture-related issues.
-
Durable Galvanized, Leather-Grain Embossed Finish: Offers superior durability and corrosion resistance with a galvanized, leather-grain embossed finish.
-
Rust-Resistant, Low Water-Retention Thermoplastic Drain Pans: Low water-retention, rust-resistant thermoplastic drain pans are designed for durability and minimal maintenance.
-
Eco-Friendly DecaBDE-Free Drain Pan with Secondary Drain Connections: Features a DecaBDE-free drain pan with secondary drain connections, ensuring environmentally responsible drainage.
-
UV-Resistant Drain Pan: UV-resistant drain pan protects against sun exposure, ensuring long-lasting performance and durability.
-
Drain Pan Rails for Easy Coil Removal and Repositioning: Integrated drain pan rails make coil removal and repositioning during maintenance quick and easy.
-
AHRI Certified and ETL Listed: AHRI certified for industry-standard efficiency and ETL listed for safety and quality assurance, ensuring top-notch performance.
