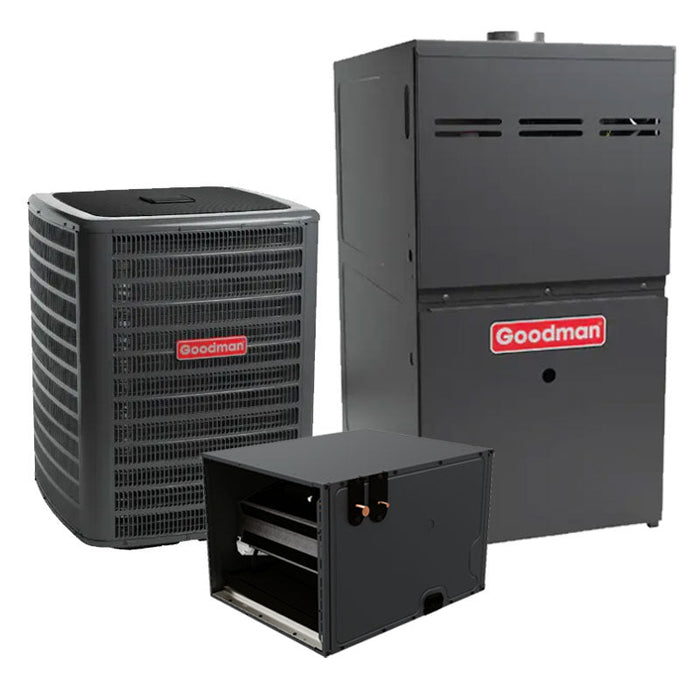

Goodman 2.5 Ton 80% 60K BTU AC Furnace System 15.2 SEER2 2-Stage Horizontal

By Goodman | SKU: GSXH503010 GM9C800603AN CHPTA3630B4 | ID: 090190
Manufactured in the USA
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Most Products In Stock - Call or Text (833) 658-3387 for availability
$4,067.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE


Goodman GSXH5 Split Air Conditioner 15.2 SEER2 Single Stage 2.5 Ton R-410A 208/230V GSXH503010

Opting for a Goodman combination system ensures year-round warmth and comfort in your home. Packed with an array of impressive features and offered at a competitive price point, a Goodman furnace and air conditioning system stands as the ideal solution to meet all your heating and cooling requirements.

  • Scroll compressor
  • Copper tube/enhanced aluminum fin coil: 5mm diameter on 1.5-3.0T units
  • Steel louver coil guard
  • Factory-installed filter drier
  • Service valves with sweat connections and easy-to-access gauge ports
  • Contactor with lug connection
  • Ground lug connection
  • Single-panel access to controls with space provided for field-installed accessories
  • 208/230V

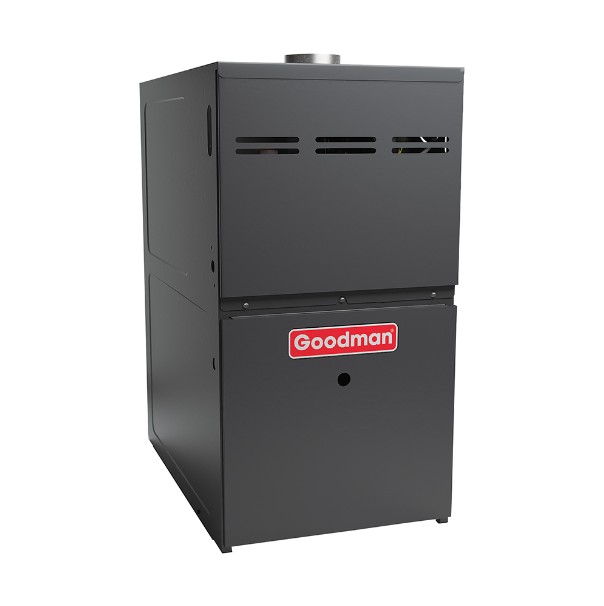

Goodman 80% AFUE Gas Furnace Nine Speed ECM Two Stage Upflow/Horizontal 60000 BTUH/H GM9C800603AN

  • Two-stage gas valve
  • Multi-speed ECM circulator motor
  • SureStart Silicon Nitride igniter
  • Self-diagnostic control board
  • Low constant fan speed
  • Two-speed induced draft blower
  • Foil faced insulated heat exchanger
  • Left or right connection

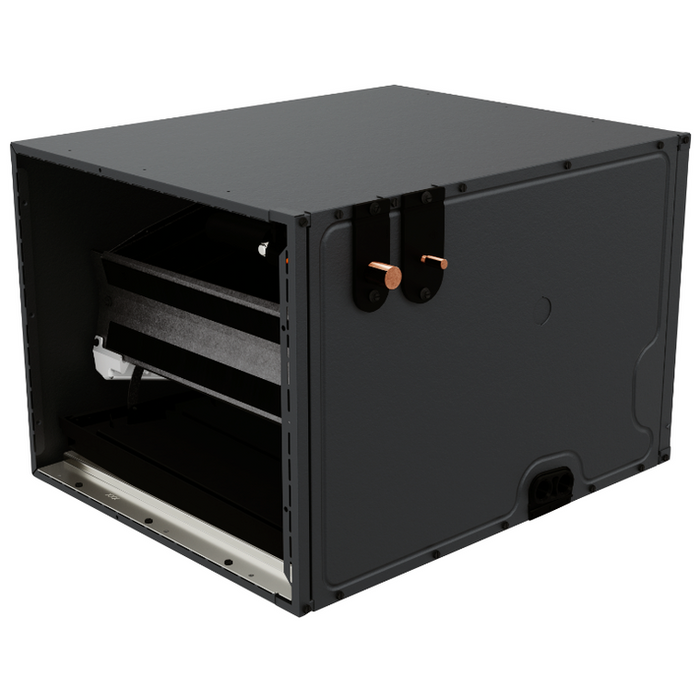

Goodman Cased Aluminum Evaporator Coil Horizontal A 2.5-3 Ton 30" Cabinet with Orifice Expansion Device AlumaFin7 CHPTA3630B4

  • Compact and lightweight all-aluminum evaporator coil with AlumaFin7™ technology
  • Optimized for use with R-401A refrigerant
  • Factory-installed thermal expansion valves for cooling applications
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Single-piece access panel with tight seal helps to keep conditioned air from escaping
  • Seal tight customized suction and liquid grommets for easy installation and removal
  • 21" depth for easier attic access
  • Horizontal application
  • AHRI certified
  • ETL Listed

Goodman Air Conditioning Condensing Unit 15.2 SEER2 Single-Phase 2.5 Ton R410A GSXH503010

Brand Goodman Model # GSXH503010
BtuH Cooling 30000 Depth 35.5"
Height 39.5" Liquid Conn. 3/8"
Max. Fuse Size 25 Min. Circuit Amps 17
Motor Type ECM Nom. Tons 2.5
Phase Single Refrigerant R410A
SEER2 15.2 Suction Fitting 7/8"
Volts 208/230 Width 35.5"
Shipping Weight 224 Shipping Width 35.50
Shipping Length 35.50 Shipping Height 39.50

Goodman 80% AFUE GM9C80 Gas Furnace Nine Speed ECM Two Stage Upflow/Horizontal 60000 Btu BTUH/H GM9C800603AN

Brand Goodman Model # GM9C800603AN
AFUE 80% BtuH Input 60,000
BtuH Output 48,000 Configuration Upflow/Horizontal
CFM @ 0.5" ESP 1,354 Depth 28"
Height 33-3/8" Min. Circuit Amps 8.7
Motor Type ECM Nom. CFM 1200
Nom. Tons 3 Stages Two-Stage
Vent Size 4" Width 14"
Wt. Lbs. 107 Shipping Width 15
Shipping Length 30 Shipping Height 35.50

Goodman Evaporator Coil CHPTA Series Cased Horizontal with TXV AlumaFin7 CHPTA3630B4

Brand Goodman Model # CHPTA3630B4
Coil Type Cased Configuration Horizontal
Depth 21" Description Cased
Height 17.5" Liquid Conn. 3/8"
Metering Device TXV Nom. Tons 3
Suction Fitting 7/8" TXV Included Yes
Width 30" Wt. Lbs. 66
Shipping Weight 66 Shipping Width 30
Shipping Length 21 Shipping Height 17.50


Goodman GSXH5 Split Air Conditioner 15.2 SEER2 Single Stage 2.5 Ton R-410A 208/230V GSXH503010

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Goodman 80% AFUE Gas Furnace Nine Speed ECM Two Stage Upflow/Horizontal 60000 BTUH/H GM9C800603AN

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Goodman Cased Aluminum Evaporator Coil Horizontal A 2.5-3 Ton 30" Cabinet with Orifice Expansion Device AlumaFin7 CHPTA3630B4

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts



Goodman GSXH5 Split Air Conditioner 15.2 SEER2 Single Stage 2.5 Ton R-410A 208/230V GSXH503010

Installation Manual

Specification Sheets

Parts Manual

Warranty Information

Goodman 80% AFUE Gas Furnace Nine Speed ECM Two Stage Upflow/Horizontal 60000 BTUH/H GM9C800603AN

Parts Manual

Specification Sheets

Warranty Information

Goodman Cased Aluminum Evaporator Coil Horizontal A 2.5-3 Ton 30" Cabinet with Orifice Expansion Device AlumaFin7 CHPTA3630B4

Installation Manual

Specification Sheets

Parts Manual

Warranty Information

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
