Goodman ACST30LU1306

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 6KW Heat R32

By Goodman | Model: ACST30LU1306 | ID: 101360
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,125.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

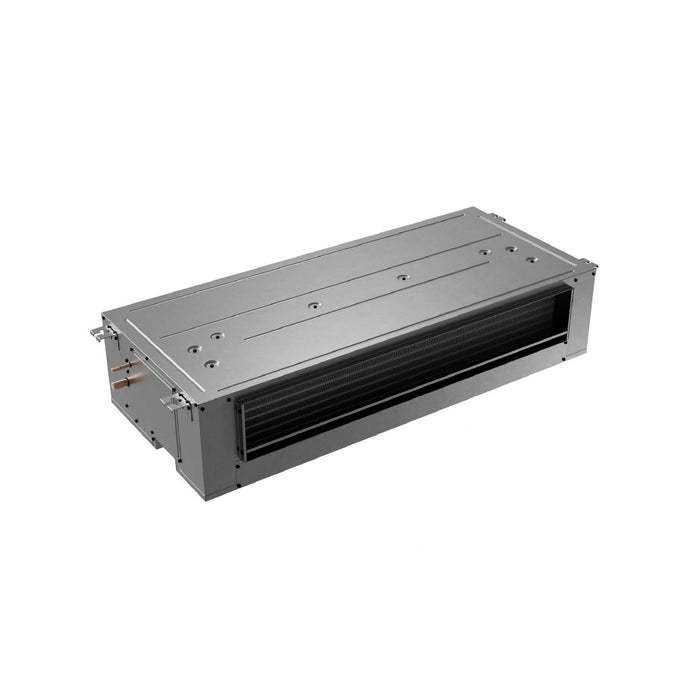

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 6KW Heat ACST30LU1306

The Goodman ACST30LU1306 Ceiling Mounted Air Handler is a compact and efficient solution for applications where vertical air handlers are not feasible. Designed for use with R-32 refrigerant, this 2.5-ton model provides up to 30,000 BTU of cooling and features a resilient-mounted multi-speed ECM motor for smooth and quiet operation. With an integrated 6kW electric heat strip, durable galvanized steel cabinet, and high-efficiency all-aluminum coil, this model ensures year-round comfort and long-lasting performance. It’s ideal for ceiling-mounted, free-return installations and comes with a factory-installed pull-type disconnect for added convenience.

Key Features

  • 2.5 Ton ceiling-mounted air handler for limited-space installations
  • Delivers 30,000 BTU cooling capacity with R-32 refrigerant
  • Multi-speed ECM blower motor for energy-efficient, quiet performance
  • 6kW electric heat with nickel chromium heating elements
  • All-aluminum tube and fin coil for corrosion resistance and reliability
  • Primary and secondary drain pan connections made of high-temp plastic
  • Galvanized-steel cabinet construction for enhanced durability
  • Factory-installed pull-type disconnect switch
  • ETL Listed and AHRI Certified for verified performance
  • 10-Year Parts Limited Warranty with online registration

Ideal for ceiling-mounted HVAC systems where space is limited, this unit combines high-performance cooling and heating in one efficient package.

View More Air Handlers

Specifications

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 6KW Heat ACST30LU1306

Brand Goodman SKU ACST30LU1306
Weight (in lbs) 97 Product Features Space-Saving
Cooling BTU 30,000 Blower Motor Multi-Speed ECM
Maximum CFM 934 Electric Heat 6 Kilowatts
Configuration Ceiling Mounted Refrigerant R32
Liquid Line 3/8" Suction Line 3/4"
Electrical 208/230v 1 Phase 60 Hz Max Breaker Size 35 Amps/30 Amps
Amperage Requirement 33.8 Amps/29.6 Amps Tonnage 2.5 Ton
Height 11" Width 54.2"
Depth 22.27" Warranty 10 Years Parts with Online Registration
Warranty

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 6KW Heat ACST30LU1306

Warranty Type Parts
Standard Warranty 5 Years
Registered Warranty 10 Years
Documents

Goodman 2.5 Ton Ceiling Mount Air Handler Multi Speed ECM With 6KW Heat ACST30LU1306

Ceiling Mount Air Handler Installation Manual

ACST Specifications

ACST Service Manual

Goodman Air Handler Warranty

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
