DESCRIPTION

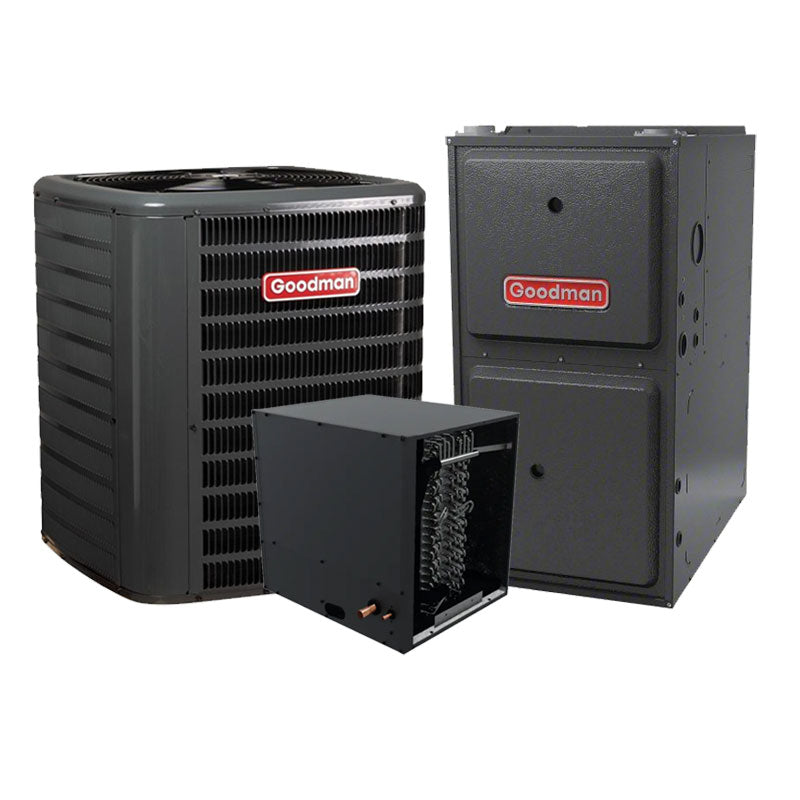

Goodman 2.5 Ton 14.3 SEER2 Air Conditioner R32 Single Stage GLXS4BA3010
The Goodman 2.5 Ton Air Conditioner Condenser GLXS4BA3010 offers efficient cooling performance for your home. With a 14.3 SEER2 rating, this unit is designed to provide exceptional energy efficiency, helping to lower your utility bills. It delivers a robust 30,000 BTU of cooling power, ideal for medium-sized spaces. The single-stage operation ensures reliable and consistent comfort, while the R32 refrigerant promotes environmental sustainability. Operating on 208/230V single-phase power, this condenser is a smart choice for homeowners seeking reliable and eco-friendly cooling solutions. Experience comfort with Goodman!
- Energy Star Certified: No
- Refrigerant Type: R-32
- SEER 2: 14.3
- Unit Height: 32 in
- Unit Width: 29 in
- Cooling Capacity Nominal: 30000 Btu/H
- Max Overcurrent Protection: 25 A
- Power Phase: 1 Ph
- Power Voltage: 208/230 V
- Compressor Stages: Single Stage
- Compressor Type: Rotary
- Unit Weight: 155.4 lb
- Unit Depth: 29 in
Product Features
-
High-Efficiency Scroll Compressor: Maximizes performance and energy savings.
-
High-Density Foam Compressor Sound Blanket: Ensures quiet operation.
-
Advanced Copeland CoreSense Technology: Enhances diagnostics and efficiency.
-
Fully Charged for 15' of Tubing Length: Convenient installation.
-
Copper Tube/Enhanced Aluminum Fin Coil (5mm Diameter): Superior heat exchange for effective cooling.
-
Factory-Installed Filter Drier: Simplifies maintenance.
-
Sweat Connection Service Valves: Easy access to gauge ports.
-
Enclosed Contactor with Lug Connection: Increases reliability.
-
High-Pressure Switch: Protects the system from pressure issues.
-
Capacitors with Extended Life: Ensures long-lasting performance.
-
AHRI Certified: Validated efficiency and performance.
-
ETL Listed: Meets safety standards.
Cabinet Features
-
Removable Grille-Style Top: UL 60335-2-40 compliant for safety.
-
Venturi Design: Enhances airflow velocity for improved cooling.
-
Architectural Gray Powder-Coat Finish: 500-hour salt-spray approved for durability.
-
Wire Fan Grille: Durable and safe design.
-
Steel Coil Guard: Protects the coil from damage.
-
Maintenance Access: Convenient top and side access for servicing.
-
Control Access: Single-panel design with space for accessories.
-
Hurricane Compliance: Meets 2023 Florida Building Code for wind integrity when anchored.
| Brand |
Goodman |
Model # |
GLXS4BA3010 |
| Refrigerant Type |
R-32 |
SEER 2
|
14.3 |
| Cooling Capacity Nominal |
30,000 Btu/H |
Max Overcurrent Protection |
25 A |
| Power Voltage / Phase |
208/230V / 1Ph |
Ton |
2.5 |
| Compressor Stages |
Single Stage |
Compressor Type |
Rotary |
| Unit Weight |
155.4 lb |
Energy Star Certified |
No |
| Decibels (dBA) |
71 |
Valve Connection Type |
Sweat |
| Liquid Line Size (“O.D.) |
3/8" |
Suction Line Size (“O.D.) |
3/4" |
| Refrigerant Charge |
63 |
Minimum Circuit Ampacity |
15 |
| Motor Type |
PSC |
Electrical Conduit Size |
1/2" or 3/4" |
| Shipping Weight |
170 |
The R32 Highly Efficient Gas Furnace is engineered for optimal heating performance, featuring a compact design with dimensions of 33-3/8" in height, 14" in width, and 28" in depth. With an impressive AFUE rating of 92% and a heating capacity of 40,000 BTU, this unit ensures efficient energy use and comfort. It includes advanced features such as a durable aluminized-steel tubular heat exchanger, a multi-speed ECM blower motor for quiet operation, and a self-diagnostic control board for easy maintenance. Compliant with California's low NOx emissions standards, this furnace is versatile for various installation configurations while offering enhanced environmental benefits through the use of R32 refrigerant.
- Unit Height: 33-3/8 in
- Unit Width: 14 in
- AFUE: 92 %
- Installation Configuration: Upflow/Horizontal
- Max Overcurrent Protection: 15 A
- Power Phase: 1 Ph
- Power Voltage: 115 V
- Motor Speed Type: Multi Speed ECM
- Unit Weight: 106 lb
- Model Efficiency: 0.92
- 40,000 BTU
- R32
- Unit Depth: 28 in
- Heat Exchanger Type: Air Cooled
Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace
-
Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
-
Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
-
Single-Stage Gas Valve: Simplifies operation with reliable gas control.
-
Durable Silicon Nitride Igniter: Offers consistent ignition performance.
-
Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
-
Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
-
Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
-
California Compliance: Meets the 40 ng/J Low NOx emissions standard.
-
Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
-
AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
-
Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
-
Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
-
Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
-
Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.
Cabinet Features
-
Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
-
Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
-
Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
-
Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.
| Brand |
Goodman |
SKU |
GR9S920403AN |
| AHRI Certificate Number |
215224963 |
Airflow Direction |
Upflow/Horizontal |
| Exhaust Flue Requirement |
Plastic / PVC |
Product Features |
New Refrigerant Compliant |
| Furnace Efficiency / AFUE |
92% |
Heating BTU |
40,000 |
| Blower Motor |
9 Speed - ECM |
Maximum CFM |
1200 |
| Horsepower |
1/2 HP |
Configuration |
Upflow/Horizontal |
| Electrical |
115 V. 1 Phase 60 Hz |
Max Breaker Size |
15 Amps |
| Min. Breaker Size |
9.7 Amps |
Burner Stages |
Single |
| Fuel Type |
Propane, Natural Gas |
|
Goodman 3 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA3626B3
The Goodman 3 Ton R32 Evaporator Coil (CAPTA3626B3) is a compact, cased unit with built-in TXV, optimized for R-32 refrigerant. It offers flexible upflow/downflow installation, durable all-aluminum construction, and rust-resistant drain pan. AHRI certified and ETL listed, it's designed for efficient performance in tight spaces with easy access for maintenance.
- Refrigerant Type: R-32
- Unit Height: 26 in
- Unit Width: 17.5 in
- Cased/Uncased: Cased
- Tonnage: 3.0
- Coil Application: Upflow/Downflow
- Unit Depth: 21 in
- R-32 Evaporator Coil
- High-Performance HVAC Solution
- Integrated Thermal Expansion Valves
- Flexible Installation Options
- Foil-Faced Insulation
- Durable Drain Pan
- Galvanized Finish
- AHRI Certified
- ETL Listed
Product Features for High-Performance R-32 Evaporator Coil
-
All-Aluminum Construction: Designed for durability and efficient heat exchange, ensuring long-lasting performance in HVAC systems.
-
Optimized for R-32 Refrigerant: Specially engineered with circuits and manifolds for efficient cooling and heating applications.
-
Integrated Thermal Expansion Valves: Factory-installed in CAPTA and CHPTA models, enhancing efficiency for both cooling and heat pump use.
-
Flexible Installation Options: Available in vertical and horizontal configurations, with a compact 21-inch depth for easy access in tight spaces like attics.
-
Foil-Faced Insulation: Reduces cabinet condensation, improving overall efficiency and preventing moisture-related issues.
-
Durable Drain Pan: Rust-resistant, UV-resistant thermoplastic design with low water retention and additional drainage connections for reliable operation.
-
User-Friendly Design: Easy-to-remove drain pan rails simplify maintenance and repositioning of the coil.
-
Galvanized Finish: Leather grain-embossed coating ensures durability and resistance to wear and tear.
-
Standardized Copper Suction Tube Stub Length: Facilitates easier installation and compatibility with existing systems.
-
Single Front Access Panel: Enhances convenience for maintenance on CAPTA and CHPTA models.
-
AHRI Certified and ETL Listed: Confirms adherence to industry standards for performance, safety, and reliability.
| Brand |
Goodman |
Model # |
CAPTA3626B3 |
| Type |
Cased Evaporator Coil |
Ton
|
3 Ton |
| Refrigerant Type |
R-32 |
Suction Valve Size |
7/8" |
| Liquid Valve Size |
3/8" |
Height |
26" |
| Width |
17.5" |
Depth |
21'' |
| Shipping Weight (lbs.) |
48 |
Application |
Vertical |
WARRANTY COVERAGE
Goodman 2.5 Ton 14.3 SEER2 Air Conditioner R32 Single Stage GLXS4BA3010
| Warranty Type |
Residential |
Multi-Family |
Commercial |
| Standard Warranty |
5 year parts |
5 year parts |
5 year parts |
| Registered Warranty |
10 year parts |
10 year parts |
5 year parts |
| Warranty Type |
Residential |
Multi-Family |
Commercial |
| Standard Warranty |
5 year parts |
5 year parts |
5 year parts |
| Registered Warranty |
10 year parts |
10 year parts |
5 year parts |
Goodman 3 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA3626B3
| Warranty Type |
Residential |
Multi-Family |
Commercial |
| Standard Warranty |
5 year parts |
5 year parts |
5 year parts |
| Registered Warranty |
10 year parts |
10 year parts |
5 year parts |
PRODUCT DOCUMENTS & TECHNICAL SPECIFICATIONS
Goodman 2.5 Ton 14.3 SEER2 Air Conditioner R32 Single Stage GLXS4BA3010
GLXS4B - Specification Sheets
Warranty Certificate
GLXS4B - Repair Parts
GR9S92 Installation Manual
GR9S92 Specification Sheets
GR9S92 Parts Manual
GR9S92 Warranty Information
Goodman 3 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA3626B3
Installation Manual
CAPTA Repair Parts
Indoor Coils Specification Sheets
Service Manual
Warranty Certificate
