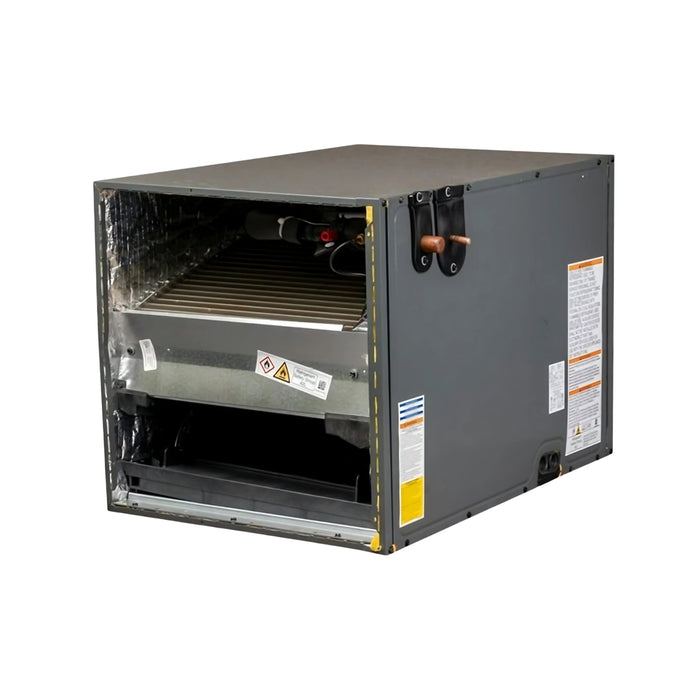

Goodman 2 Ton Cased Evaporator Coil Horizontal 26"W with Internal TXV R32

Goodman 2 Ton Cased Evaporator Coil Horizontal 26"W with Internal TXV R32

By Goodman | SKU: CHPTA2426B3 | ID: 100084
✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$767.00 + SHIPPING

Goodman 2 Ton Cased Evaporator Coil Horizontal 26"W with Internal TXV R32

This evaporator coil is a high-performance, all-aluminum unit specifically designed for R-32 refrigerant, featuring integrated thermal expansion valves for both cooling and heat pump applications. It offers flexible installation options with vertical and horizontal models, and its 21-inch depth facilitates easier access in attic spaces. The coil is equipped with a foil-faced insulation to reduce condensation and includes a rust-resistant, UV-resistant drain pan with additional drainage connections. Its durable galvanized finish and easy-to-remove drain pan rails enhance both longevity and maintenance convenience. Certified by AHRI and listed by ETL, this coil combines efficiency, durability, and ease of use for a reliable HVAC solution.

Product Feature:

  • Optimized for R-32 Refrigerant: Specifically designed for R-32 refrigerant, including circuits and manifolds, to ensure maximum efficiency and system performance.
  • R-32 Sensor for Extended Coil Lifespan: Integrated R-32 sensor designed to enhance the durability and lifespan of the coil, ensuring optimal functionality.
  • Factory-Installed Thermal Expansion Valves: Pre-installed thermal expansion valves for both cooling and heat pump applications, ensuring precise refrigerant control.
  • Standardized Copper Suction Tube Stub Length: Consistent copper suction tube length for easier installation and integration with existing systems.
  • Check Flowrator for Cooling & Heat Pump Applications: Built-in check flowrator enhances system performance for both cooling and heat pump configurations.
  • Designed for Horizontal Installation: Engineered for horizontal applications, providing flexibility and ease in a variety of installation setups.
  • 21" Depth for Easier Attic Access: Compact 21" depth for simplified attic installations and improved access to components during setup and maintenance.
  • Single Front Access Panel: Simplifies servicing and maintenance with a single front access panel for easy access to all components.
  • Foil-Faced Insulation: Reduces cabinet condensation, promoting system efficiency while preventing moisture-related issues in the cabinet.
  • Galvanized, Leather Grain-Embossed Finish: Durable and corrosion-resistant galvanized finish with a leather-grain embossing for added protection and aesthetic appeal.
  • Rust-Resistant Thermoplastic Drain Pan: Low water-retention, rust-resistant thermoplastic drain pan design for reliable, long-lasting performance.
  • DecaBDE-Free Thermoplastic Drain Pan: Eco-friendly drain pan with secondary drain connections to improve drainage and reduce environmental impact.
  • Drain Pan Rails for Easy Coil Removal: Equipped with drain pan rails for easier removal and repositioning of coils, simplifying maintenance tasks.
  • UV-Resistant Drain Pan: Built to withstand UV exposure, ensuring long-term durability and reliable operation.
  • AHRI Certified: AHRI certification ensures that the unit meets performance standards for energy efficiency and cooling capacity.
  • ETL Listed: ETL listed for compliance with safety and quality standards, providing peace of mind in performance and reliability.

Goodman 2 Ton Cased Evaporator Coil Horizontal 26"W with Internal TXV R32

Brand Goodman Model # CHPTA2426B3
Category Evaporator Coils Nominal Tons 1.5 - 2 Ton
Refrigerant Type R-32 Liquid Line 3/8"
Suction Line 7/8" Height (Inches) 17.5"
Width (Inches) 26" Depth (Inches) 21"
Shipping Weight 55 Application Horizontal
Coil Type A-coil Replaces CHPTA2426B4

Goodman 2 Ton Cased Evaporator Coil Horizontal 26"W with Internal TXV R32

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Goodman 2 Ton Cased Evaporator Coil Horizontal 26"W with Internal TXV R32

Installation Manual

Specification Sheets

Nomenclature

Warranty Information
