Goodman 2 Ton Heat Pump Furnace System 14.5 SEER2 92% 40K BTU Vertical R32

By Goodman | SKU: GLZS4BA2410 GR9S920403AN CAPTA3626B3 | ID: 100990
Manufactured in the USA
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Most Products In Stock - Call or Text (833) 658-3387 for availability
$4,808.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Product Details

Goodman 2 Ton R32 Split Heat Pump 14.3 SEER2 Single Stage GLZS4BA2410

The system features a high-efficiency compressor with Smart-Shift technology for quiet defrosting and enhanced aluminum fin coils for better heat transfer. It includes a single-speed PSC fan motor, bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler. With high- and low-pressure switches, service valves, and a full charge for 15 feet of tubing, it ensures easy installation. AHRI Certified and ETL Listed for reliable performance.

  • Heating Capacity Nominal: 24000 Btu/H
  • Refrigerant Type: R-32
  • SEER 2: 14.3
  • Unit Height: 32.5 in
  • Unit Width: 29 in
  • Max Overcurrent Protection: 15 A
  • Power Phase: 1 Ph
  • Power Voltage: 208/240 V
  • Compressor Stages: Single Stage
  • Compressor Type: Rotary
  • Unit Weight: 160 lb
  • Unit Depth: 29 in
  • Removable grille-style top design complies with UL 60335-2-40 standards
  • Includes steel louver coil guard for added protection
  • Constructed from heavy-gauge galvanized steel for durability
  • Finished in Architectural Gray powder-coat with 500-hour salt-spray approval
  • Provides top and side maintenance access for easy servicing
  • Meets 2023 Florida Building Code for hurricane-type winds when properly anchored
  • Anchor bracket kits available for compliance with wind requirements

Product Features For Goodman 2 Ton Heat Pump Condenser GLZS4BA2410

  • High-efficiency compressor for optimal performance
  • SmartShift technology for quiet and reliable defrosting
  • Enhanced aluminum fin coil with 5 mm diameter for 1.5T-3.5T units
  • Aluminum fin coil with 7 mm diameter copper tubes for 4.0-5.0T units
  • Single-speed PSC condenser fan motor for energy efficiency
  • Factory-installed bi-flow liquid-line filter drier for system protection
  • Factory-installed suction-line accumulator for improved performance
  • Factory-installed compressor crankcase heater for enhanced safety
  • Factory-installed high-capacity muffler for reduced noise levels
  • High-pressure and low-pressure switches for system safety
  • Service valves with sweat connections for easy gauge access
  • Fully charged for 15 feet of tubing length for convenience
  • Fully enclosed contactor with secure lug connection for reliability
  • Ground lug connection for electrical safety
  • Extended-life capacitors for increased durability
  • AHRI Certified and ETL Listed for quality assurance

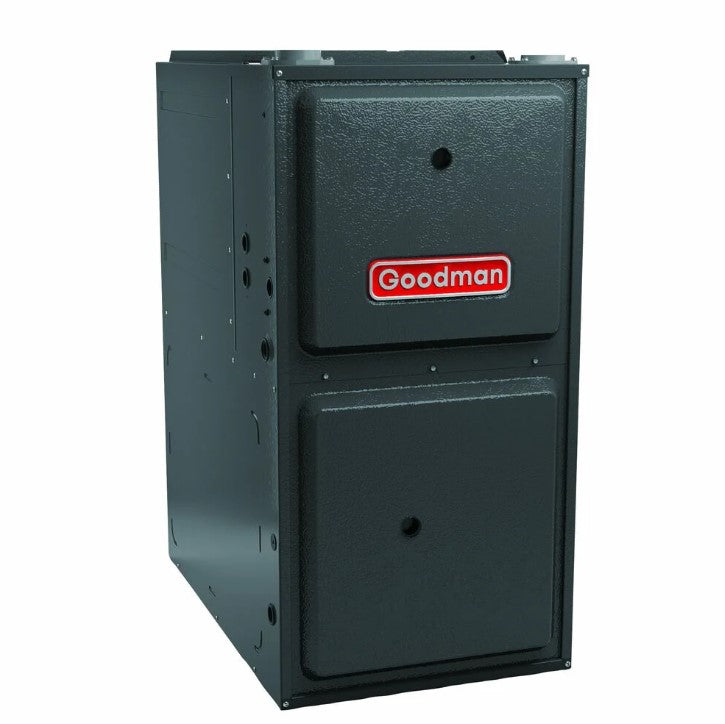

Goodman R32 92% AFUE Gas Furnace 40K BTU Multi Speed Upflow/Horizontal GR9S920403AN

The R32 Highly Efficient Gas Furnace is engineered for optimal heating performance, featuring a compact design with dimensions of 33-3/8" in height, 14" in width, and 28" in depth. With an impressive AFUE rating of 92% and a heating capacity of 40,000 BTU, this unit ensures efficient energy use and comfort. It includes advanced features such as a durable aluminized-steel tubular heat exchanger, a multi-speed ECM blower motor for quiet operation, and a self-diagnostic control board for easy maintenance. Compliant with California's low NOx emissions standards, this furnace is versatile for various installation configurations while offering enhanced environmental benefits through the use of R32 refrigerant.

  • Unit Height: 33-3/8 in
  • Unit Width: 14 in
  • AFUE: 92 %
  • Installation Configuration: Upflow/Horizontal
  • Max Overcurrent Protection: 15 A
  • Power Phase: 1 Ph
  • Power Voltage: 115 V
  • Motor Speed Type: Multi Speed ECM
  • Unit Weight: 106 lb
  • Model Efficiency: 0.92
  • 40,000 BTU
  • R32
  • Unit Depth: 28 in
  • Heat Exchanger Type: Air Cooled

Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace

  • Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
  • Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
  • Single-Stage Gas Valve: Simplifies operation with reliable gas control.
  • Durable Silicon Nitride Igniter: Offers consistent ignition performance.
  • Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
  • Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
  • Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
  • California Compliance: Meets the 40 ng/J Low NOx emissions standard.
  • Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
  • AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
  • Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
  • Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
  • Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
  • Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.

Cabinet Features

  • Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
  • Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
  • Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
  • Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

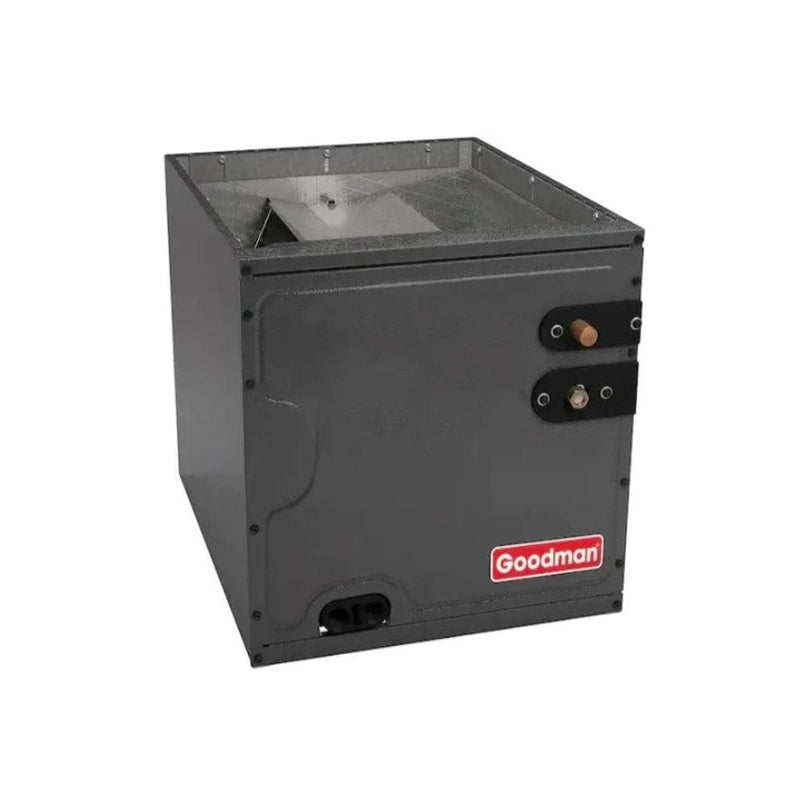

Goodman 3 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA3626B3

The Goodman 3 Ton R32 Evaporator Coil (CAPTA3626B3) is a compact, cased unit with built-in TXV, optimized for R-32 refrigerant. It offers flexible upflow/downflow installation, durable all-aluminum construction, and rust-resistant drain pan. AHRI certified and ETL listed, it's designed for efficient performance in tight spaces with easy access for maintenance.

  • Refrigerant Type: R-32
  • Unit Height: 26 in
  • Unit Width: 17.5 in
  • Cased/Uncased: Cased
  • Tonnage: 3.0
  • Coil Application: Upflow/Downflow
  • Unit Depth: 21 in
  • R-32 Evaporator Coil
  • High-Performance HVAC Solution
  • Integrated Thermal Expansion Valves
  • Flexible Installation Options
  • Foil-Faced Insulation
  • Durable Drain Pan
  • Galvanized Finish
  • AHRI Certified
  • ETL Listed

Product Features for High-Performance R-32 Evaporator Coil

  • All-Aluminum Construction: Designed for durability and efficient heat exchange, ensuring long-lasting performance in HVAC systems.
  • Optimized for R-32 Refrigerant: Specially engineered with circuits and manifolds for efficient cooling and heating applications.
  • Integrated Thermal Expansion Valves: Factory-installed in CAPTA and CHPTA models, enhancing efficiency for both cooling and heat pump use.
  • Flexible Installation Options: Available in vertical and horizontal configurations, with a compact 21-inch depth for easy access in tight spaces like attics.
  • Foil-Faced Insulation: Reduces cabinet condensation, improving overall efficiency and preventing moisture-related issues.
  • Durable Drain Pan: Rust-resistant, UV-resistant thermoplastic design with low water retention and additional drainage connections for reliable operation.
  • User-Friendly Design: Easy-to-remove drain pan rails simplify maintenance and repositioning of the coil.
  • Galvanized Finish: Leather grain-embossed coating ensures durability and resistance to wear and tear.
  • Standardized Copper Suction Tube Stub Length: Facilitates easier installation and compatibility with existing systems.
  • Single Front Access Panel: Enhances convenience for maintenance on CAPTA and CHPTA models.
  • AHRI Certified and ETL Listed: Confirms adherence to industry standards for performance, safety, and reliability.

View More Heat Pump & Furnace Systems

Specifications

Goodman 2 Ton R32 Split Heat Pump 14.3 SEER2 Single Stage GLZS4BA2410

Brand Goodman Model # GLZS4BA2410
Heating (BTU/h)  24,000 Btu/H Cooling (BTU/h) 24,000 Btu/H
Refrigerant Type R-32 SEER 2 14.3
Unit Depth 29 in  Unit Height 32.5 in
Unit Width 29 in Max Overcurrent Protection 15 A
Power Voltage/Phase 208/230V - 1Ph Compressor Stages Single Stage
Compressor Type Rotary Motor Type  PSC
Liquid Line/Suction Line ⅜" / ¾" Decibels 74
Valve Connection Type Sweat Refrigerant Charge (oz.) 70
Minimum Circuit Ampacity 11.2 Electrical Conduit Size 1/2" or 3/4"
Equipment Weight (lbs.) 150 Shipping Weight (lbs) 165
Ton 2

Goodman R32 92% AFUE Gas Furnace 40K BTU Multi Speed Upflow/Horizontal GR9S920403AN

Brand Goodman SKU GR9S920403AN
AHRI Certificate Number 215224963 Airflow Direction Upflow/Horizontal
Exhaust Flue Requirement Plastic / PVC Product Features New Refrigerant Compliant
Furnace Efficiency / AFUE 92% Heating BTU 40,000
Blower Motor 9 Speed - ECM Maximum CFM 1200
Horsepower 1/2 HP Configuration Upflow/Horizontal
Electrical 115 V. 1 Phase 60 Hz Max Breaker Size 15 Amps
Min. Breaker Size 9.7 Amps Burner Stages Single
Fuel Type Propane, Natural Gas

Goodman 3 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA3626B3

Brand Goodman Model # CAPTA3626B3
Type Cased Evaporator Coil Ton
 3 Ton
Refrigerant Type R-32 Suction Valve Size  7/8"
Liquid Valve Size  3/8" Height  26"
Width  17.5" Depth  21''
Shipping Weight (lbs.) 48 Application  Vertical
Warranty

Goodman 2 Ton R32 Split Heat Pump 14.3 SEER2 Single Stage GLZS4BA2410

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Goodman R32 92% AFUE Gas Furnace 40K BTU Multi Speed Upflow/Horizontal GR9S920403AN

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Goodman 3 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA3626B3

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

Goodman 2 Ton R32 Split Heat Pump 14.3 SEER2 Single Stage GLZS4BA2410

GLZS4B Installation Manual

Application Guide

GLZS4B Specification Sheets

Warranty Information

Goodman R32 92% AFUE Gas Furnace 40K BTU Multi Speed Upflow/Horizontal GR9S920403AN

GR9S92 Installation Manual

GR9S92 Specification Sheets

GR9S92 Parts Manual

GR9S92 Warranty Information

Goodman 3 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA3626B3

Installation Manual

CAPTA Repair Parts

Indoor Coils Specification Sheets

Service Manual

Warranty Certificate
