The system features a high-efficiency compressor with Smart-Shift technology for quiet defrosting and enhanced aluminum fin coils for better heat transfer. It includes a single-speed PSC fan motor, bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler. With high- and low-pressure switches, service valves, and a full charge for 15 feet of tubing, it ensures easy installation. AHRI Certified and ETL Listed for reliable performance.
- Heating Capacity Nominal: 24000 Btu/H
- Refrigerant Type: R-32
- SEER 2: 14.3
- Unit Height: 32.5 in
- Unit Width: 29 in
- Max Overcurrent Protection: 15 A
- Power Phase: 1 Ph
- Power Voltage: 208/240 V
- Compressor Stages: Single Stage
- Compressor Type: Rotary
- Unit Weight: 160 lb
- Unit Depth: 29 in
-
Removable grille-style top design complies with UL 60335-2-40 standards
- Includes steel louver coil guard for added protection
- Constructed from heavy-gauge galvanized steel for durability
- Finished in Architectural Gray powder-coat with 500-hour salt-spray approval
- Provides top and side maintenance access for easy servicing
- Meets 2023 Florida Building Code for hurricane-type winds when properly anchored
-
Anchor bracket kits available for compliance with wind requirements
Product Features For Goodman 2 Ton Heat Pump Condenser GLZS4BA2410
-
High-efficiency compressor for optimal performance
-
SmartShift technology for quiet and reliable defrosting
-
Enhanced aluminum fin coil with 5 mm diameter for 1.5T-3.5T units
-
Aluminum fin coil with 7 mm diameter copper tubes for 4.0-5.0T units
-
Single-speed PSC condenser fan motor for energy efficiency
-
Factory-installed bi-flow liquid-line filter drier for system protection
-
Factory-installed suction-line accumulator for improved performance
-
Factory-installed compressor crankcase heater for enhanced safety
-
Factory-installed high-capacity muffler for reduced noise levels
-
High-pressure and low-pressure switches for system safety
-
Service valves with sweat connections for easy gauge access
-
Fully charged for 15 feet of tubing length for convenience
-
Fully enclosed contactor with secure lug connection for reliability
-
Ground lug connection for electrical safety
-
Extended-life capacitors for increased durability
-
AHRI Certified and ETL Listed for quality assurance

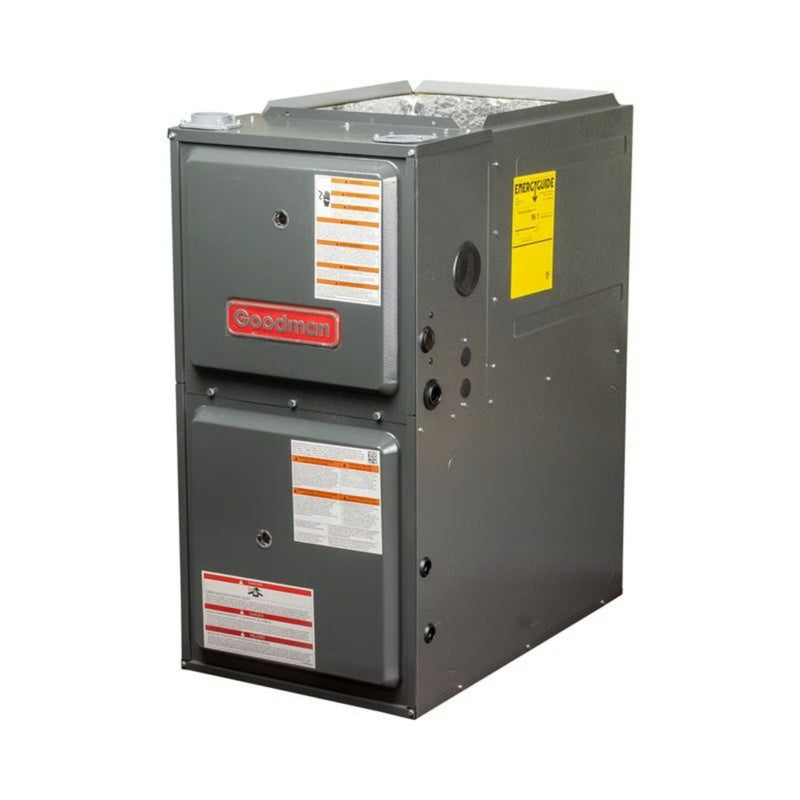

Goodman 97% AFUE Gas Furnace 60,000 BTU Variable Speed ECM Modulating Upflow/Horizontal Low NOx GMVM970603BN
The Goodman GMVM970603BN 98% AFUE Gas Furnace provides reliable, eco-friendly heating with a 60,000 BTU capacity and variable-speed ECM motor for smooth, energy-efficient airflow. ComfortBridge™ compatible, it adjusts output based on demand and integrates seamlessly with existing setups, supporting both upflow and horizontal installations. With a low NOx burner, Energy Star certification, and tax credit eligibility, it meets stringent environmental standards. Its durable, insulated cabinet minimizes air leakage, while self-diagnostics simplify maintenance. Ideal for modern homes, it’s designed for comfort, efficiency, and easy installation.
- NOx Burner Type: Low NOx
- Energy Star Certified: Yes
- Unit Height: 34-1/2 in
- Unit Width: 17-1/2 in
- Communication Feature Type: ComfortBridge Technology compatible
- AFUE: 97 %
- Installation Configuration: Upflow/Horizontal
- Max Overcurrent Protection: 15 A
- Power Phase: 1 Ph
- Power Voltage: 115 V
- Motor Speed Type: Variable Speed ECM
- Model Efficiency: 0.97
- Unit Depth: 29 in
- Heat Exchanger Type: Gas
Product Features For Goodman Highly Efficient 97% AFUE Gas Furnace
-
Reliability and Comfort: Built for high reliability, with an airflow system that adjusts gently to match heating or cooling demands, providing consistent comfort.
-
Efficient Drainage and No Leaks: Optimized for quick condensate drainage to prevent water leakage, enhancing durability.
-
Versatile Installation: Auto-configuration tailored to each setup and supports multi-position installation (upflow, horizontal left, or right).
-
Single-Stage Thermostat Compatibility: Can work with non-communicating single-stage thermostats, making it versatile with existing setups.
-
Self-Diagnostics: Features a self-diagnostic control board with fault history output for quick troubleshooting and long-lasting igniter for reduced maintenance.
-
Provisions for Electronic Air Cleaner and Humidifier: Equipped for easy integration of air quality accessories, enhancing indoor air.
-
Energy Efficiency and Environmental Compliance: Designed for lower NOx emissions, AHRI certified, and ETL listed, meeting high standards for performance, safety, and North American environmental regulations.
-
Tax Credit Eligible: Meets criteria for energy efficiency tax credits, adding value for eco-conscious homeowners.
Cabinet Features:
- Flexible venting options with easy top or optional side vent installation and left or right gas/electrical connections for hassle-free setup.
-
Low air leakage (QLeak ≤ 2%) and fully insulated sections for superior efficiency and quiet operation.
- Durable heavy-gauge steel cabinet with a corrosion-resistant finish, providing both structural integrity and a long lifespan.
- Supports bottom or side return air applications, making it adaptable to diverse configurations.
This HVAC system combines advanced engineering with energy efficiency and ease of maintenance, making it a dependable solution for high-quality climate control and cost savings.
Goodman 2.5 Ton R32 Cased Evaporator Coil, Horizontal-A design with a 17.5"H x 26"W cabinet, features durable all-aluminum construction and is optimized for R-32 refrigerant. This coil includes factory-installed thermal expansion valves, ensuring efficient operation for both cooling and heat pump systems. Its compact 21" depth facilitates easy installation in tight spaces. The design incorporates a rust-resistant thermoplastic drain pan and foil-faced insulation to minimize condensation. AHRI certified and ETL listed, it meets high safety and performance standards.
- Refrigerant Type: R-32
- Unit Height: 17.5 in
- Unit Width: 26 in
- Cased/Uncased: Cased
- Coil Application: Horizontal A
- Unit Depth: 21 in
Product Features For Goodman R32 Horizontal Evaporator Coil
-
All-Aluminum evaporator coil: Durable construction for reliable, efficient cooling.
-
Optimized for R-32 refrigerant: Built-in circuits and manifolds enhance R-32 compatibility.
-
R-32 sensor: Designed to last the coil’s lifetime, ensuring performance consistency.
-
Factory-installed thermal expansion valves: Supports both cooling and heat pump systems.
-
Standardized copper suction tube: Simplifies installation with a consistent stub length.
-
Check flowrator: Ensures precise flow control for various applications.
-
Horizontal application: Suited for versatile installation setups.
-
21" depth: Compact for improved attic access.
-
Single front access panel: Easy servicing and maintenance access.
-
Foil-faced insulation: Reduces condensation within the cabinet.
-
Galvanized, leather grain-embossed finish: Offers added durability and rust resistance.
-
Rust-resistant, thermoplastic drain pan: Low water-retention design prevents stagnation.
-
DecaBDE-free thermoplastic drain pan: Features secondary drain connections for optimal drainage.
-
Drain pan rails: Designed for easy coil removal without structural compromise.
-
UV-resistant drain pan: Resists sun damage for long-lasting durability.
-
AHRI certified and ETL Listed: Meets strict safety and quality standards.
Goodman Furnace Integration Kit for R-32 Refrigerant Systems 0230K00044
The Goodman Furnace Integration Kit for R-32 Refrigerant Systems is designed to facilitate the installation of Goodman gas furnaces in systems using R-32 refrigerant. This kit typically includes components necessary to ensure proper compatibility and functionality between the furnace and the R-32 cooling system.
Key Features:
-
Compatibility: Ensures that the furnace and refrigerant system work seamlessly together.
-
Enhanced Efficiency: Optimizes performance when using R-32 refrigerant, which has a lower global warming potential compared to traditional refrigerants.
-
Installation Components: May include items like sensors, wiring harnesses, and other connectors needed for integration.
-
Improved Comfort: Aids in achieving more efficient heating and cooling, enhancing overall comfort in the home.
This integration kit is essential for HVAC professionals when retrofitting or installing systems with R-32 refrigerant, ensuring compliance with safety and performance standards.
