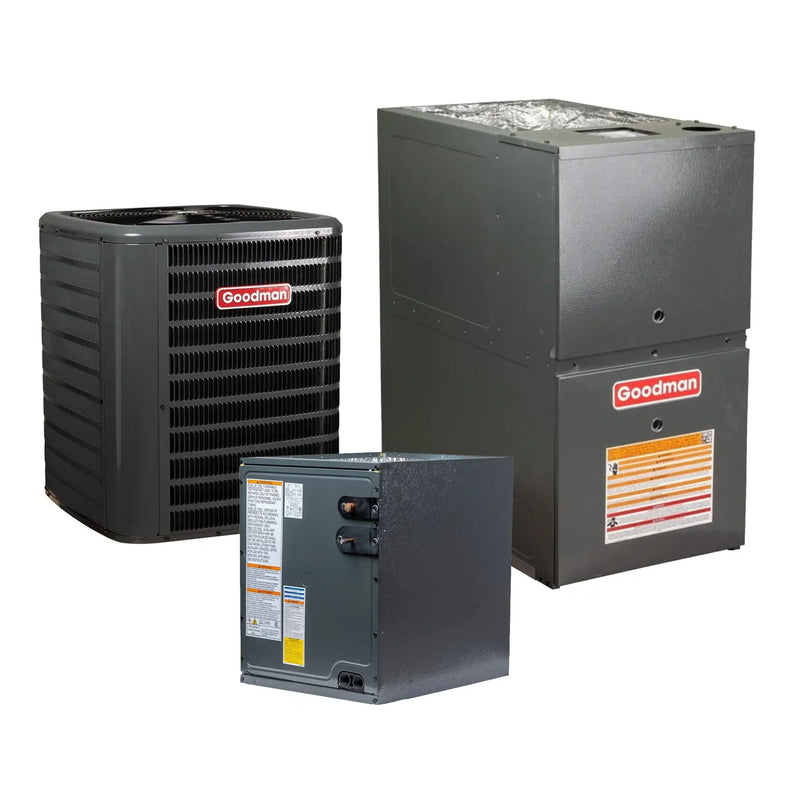

Goodman 3 Ton 14.3 SEER2 Split Air Conditioner Condenser Single-Stage R32 GLXS4BA3610
This high-performance HVAC condenser unit is designed for energy-efficient cooling, advanced diagnostics, and long-term reliability. Featuring a high-efficiency scroll compressor, Copeland CoreSense Technology, and new R32 refrigerant, it meets 2025 refrigerant standards and offers quiet, dependable operation for residential and light commercial applications.
Key Features
-
R32 Refrigerant – Environmentally responsible refrigerant that meets 2025 EPA guidelines
-
High-Efficiency Scroll Compressor – Delivers reliable performance with lower energy consumption
-
Copeland CoreSense Technology – Provides advanced protection, diagnostics, and system monitoring
-
High-Density Foam Sound Blanket – Reduces compressor noise for quieter operation
-
Pre-Charged for 15' Line Set – Factory-charged with refrigerant to simplify installation
-
Copper Tube / Enhanced Aluminum Fin Coil (5mm) – Maximizes heat transfer for improved cooling efficiency
-
Factory-Installed Filter Drier – Protects the system from moisture and contaminants
-
Sweat Connection Service Valves – Easy access to gauge ports for faster maintenance
-
Enclosed Contactor – Protects electrical components from debris and moisture
-
High-Pressure Switch – Ensures safety by shutting the system down under abnormal pressure
-
Extended-Life Capacitors – Durable components built for long-term operation
-
AHRI Certified & ETL Listed – Meets industry standards for performance and safety
Cabinet Features
-
Removable Grille-Style Top – UL 60335-2-40 compliant for safe access to internal components
-
Architectural Gray Powder-Coat Finish – Tested with 500-hour salt spray approval for weather resistance
-
Wire Fan Grille – Provides safety and durability during operation
-
Steel Coil Guard – Protects the coil from debris and potential damage
Goodman R32 80% AFUE Gas Furnace 80K BTU 21"W Two-Stage Upflow/Horizontal
The Goodman 80% AFUE R32 2-Stage Gas Furnace provides 80,000 BTU of efficient, quiet heating with a multi-speed ECM circulator motor and two-stage gas valve for optimal comfort. Equipped with a SureStart® Silicon Nitride igniter for long life, it operates smoothly with a low constant fan speed and quiet, two-speed draft blower. The furnace features a self-diagnostic control board, is AHRI Certified and ETL Listed for quality, and meets California Low NOx emissions standards. With flexible installation options and a durable, insulated cabinet, it ensures reliable home heating and easy setup.
Product Features For Goodman 80% AFUE R32 2-Stage Gas Furnace
- Unit Height: 33-3/8 in
- Unit Width: 21 in
- AFUE: 80 %
- 80,000 BTU
- 2000 CFM
- Installation Configuration: Upflow/Horizontal
- Max Overcurrent Protection: 25 A
- Power Phase: 1 Ph
- Power Voltage: 115 V
- Motor Speed Type: Nine Speed ECM
- Unit Weight: 129 lb
- Model Efficiency: 0.8
- Unit Depth: 28 in
- Heat Exchanger Type: Air Cooled
- NOx: & 40 NG/J NOx
-
Two-stage gas valve provides quiet, economical heating
- Efficient and quiet multi-speed ECM circulator motor
-
SureStart® Silicon Nitride igniter designed for long igniter life
- Self-diagnostic control board
- Low constant fan speed circulates air throughout the home
- Quiet, two-speed induced draft blower
-
California Low NOx emissions-compliant models available
- Not for installation in California's South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD)
-
AHRI Certified and ETL Listed for quality assurance
Cabinet Features
- Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
- Multi-position installation:
-
GR9T80: Upflow, horizontal left or right
-
GD9T80: Downflow, horizontal left or right
- Removable bottom for side- or bottom-return applications
- Convenient left or right gas/electric service connections
- Cabinet air leakage ≤ 2%
-
Coil and furnace fit flush for most installations

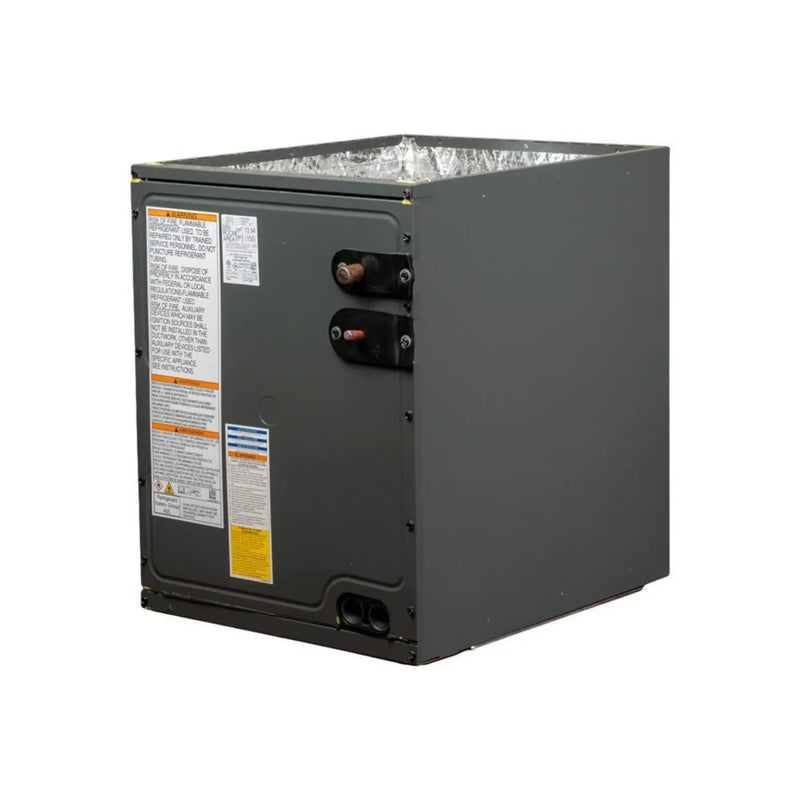

Goodman 3 Ton Cased Evaporator Coil 21" Width Upflow/Downflow R32 With TXV CAPTA3626C3
An air conditioning or heat pump system performs only as well as its evaporator coil — and the Goodman CAPTA Series is built with that principle in mind. Designed for long-lasting durability, optimal refrigerant flow, and high-performance heat transfer, CAPTA coils are perfect for residential and light commercial HVAC systems. Whether you’re upgrading a worn-out coil or installing a brand-new system, CAPTA coils deliver the reliability, accessibility, and value you expect from Goodman.
Key Features
-
All-Aluminum Coil Construction – Built with sine fins and grooved tubing to enhance surface area and maximize heat transfer, while resisting corrosion for long-term durability.
-
Factory-Installed Internal TXV (Thermostatic Expansion Valve) – Optimizes refrigerant flow across varying load conditions, ideal for high-efficiency HVAC systems and smoother system operation.
-
Upflow/Downflow Compatible for Flexible Installations – Designed to work in both upflow and downflow air handling units, making it an ideal choice for a wide range of installation configurations.
-
Durable, Galvanized & Embossed Cabinet – Insulated and sealed for improved energy efficiency and airflow, with strong steel casing for enhanced coil protection.
-
Superior Condensate Management – Features a DecaBDE-free, rust-resistant thermoplastic drain pan with secondary drain connections and foil-faced insulation to reduce moisture buildup and protect system integrity.
-
R32 Refrigerant Ready – Fully compliant with Clean Air Act refrigerant updates, compatible with eco-friendly R32 refrigerant for lower environmental impact and better energy efficiency.
-
Dual Factory Pressure Testing – Each coil is pressure-tested twice prior to shipping, ensuring quality and reducing the likelihood of leaks or installation issues.
-
10-Year Limited Parts Warranty – Backed by Goodman’s standard 10-year warranty, with registration and proper installation by a licensed HVAC professional.
Why Choose Goodman?
Goodman is recognized across North America for delivering high-quality, affordable HVAC solutions for both residential and light commercial use. Known for low failure rates and dependable engineering, Goodman products are built using only top-tier components. When you choose the CAPTA Series evaporator coils, you're investing in comfort, performance, and long-term value — backed by one of the best warranties in the industry.
