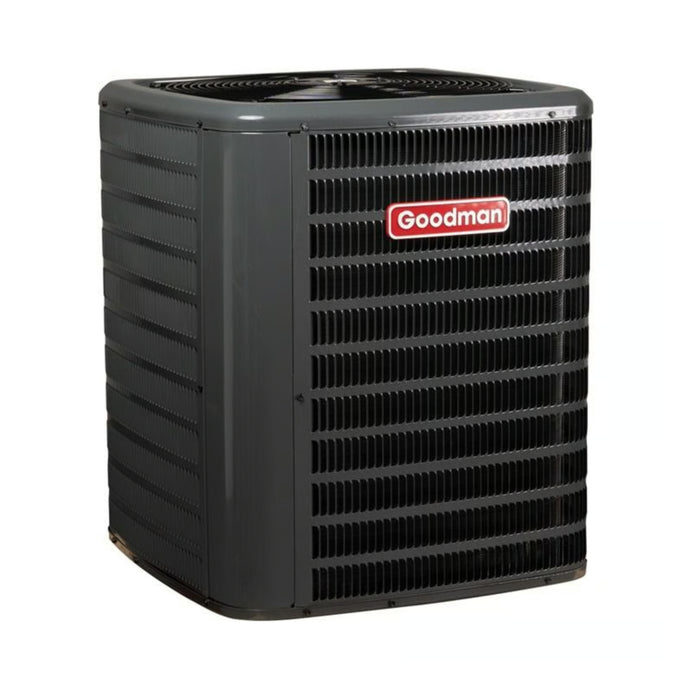

Goodman 3 Ton 14.3 SEER2 Heat Pump Split Condenser Single Stage R32 GLZS4BA3610
The system features a high-efficiency compressor with Smart-Shift technology for quiet defrosting. It includes enhanced aluminum fin coils. Additional components include a single-speed PSC fan motor, factory-installed bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler. It also has high- and low-pressure switches, service valves with easy access ports, is fully charged for 15 feet of tubing, and includes a fully enclosed contactor with a lug connection. The unit is AHRI Certified and ETL Listed.
The cabinet features a removable grille-style top design that complies with UL 60335-2-40 standards. It includes a steel louver coil guard and is constructed from heavy-gauge galvanized steel. The cabinet is finished in an attractive Architectural Gray powder-coat with 500-hour salt-spray approval. It provides top and side maintenance access and, when properly anchored, meets the 2023 Florida Building Code requirements for hurricane-type winds. Anchor bracket kits are available to ensure compliance.
System Features
-
High-Efficiency Compressor - Superior energy savings and performance
-
New R32 Freon - Meets 2025 refrigerant change guidelines, ensuring compliance with future environmental standards
-
Smart-Shift Technology - Ensures quiet, reliable defrost cycles for enhanced system operation
-
Enhanced Aluminum Fin Coil - 5 mm diameter (1.5T-3.5T) and 7 mm diameter copper tubes (4.0-5.0T) for superior heat transfer and efficiency
-
Single-Speed PSC Condenser Fan Motor - Consistent and reliable performance
-
Factory-Installed Bi-Flow Liquid-Line Filter Drier - Improved system filtration and reliability
-
Factory-Installed Suction-Line Accumulator - Efficient refrigerant management
-
Factory-Installed Compressor Crankcase Heater - Enhanced durability in colder climates
-
Factory-Installed High-Capacity Muffler - Reduces noise during operation, promoting quieter performance
-
High- and Low-Pressure Switches - System safety and protection
-
Service Valves with Sweat Connections - Easy access to gauge ports for simplified maintenance and installation
-
Fully Charged for 15 Feet of Tubing Length - Reduces installation time and effort
-
Fully Enclosed Contactor with Lug Connection - Ensures secure electrical connections for safe operation
-
Ground Lug Connection - Included for additional electrical safety
-
Extended-Life Capacitors - Longer-lasting performance and reliability
-
AHRI Certified and ETL Listed - Guaranteed quality assurance and industry compliance
Cabinet Features
-
Removable Grille-Style Top Design - Complies with UL 60335-2-40 standards
-
Steel Louver Coil Guard - Provides coil protection
-
Heavy-Gauge Galvanized Steel Construction - Durable and corrosion-resistant
-
Architectural Gray Powder-Coat Finish - Attractive appearance with 500-hour salt-spray approval
-
Top and Side Maintenance Access - Simplifies servicing
-
2023 Florida Building Code Compliance - Meets hurricane-type wind requirements when properly anchored
-
Anchor Bracket Kits Available - Ensures compliance with code requirements
Goodman 80% AFUE 60,000 BTU Gas Furnace 17.5" Wide Two Stage Upflow R32 GR9T800603BN
The Goodman 80% AFUE R32 2-Stage Gas Furnace delivers quiet, efficient heating with a 60,000 BTU output and advanced features designed for reliable, long-term performance. Ideal for residential applications, this furnace includes a two-stage gas valve and a multi-speed ECM blower motor to enhance comfort while minimizing energy consumption.
Equipped with a SureStart® Silicon Nitride igniter, self-diagnostic control board, and a two-speed induced draft blower, this furnace ensures smooth, quiet operation throughout the heating cycle. The fully insulated, heavy-gauge steel cabinet allows for multi-position installation, while compliance with California Low NOx standards ensures eco-conscious performance in approved areas.
Key Features
-
60,000 BTU Heating Capacity – Delivers consistent warmth for mid-sized residential spaces
-
80% AFUE Efficiency – Offers standard fuel efficiency for cost-effective heating
-
Two-Stage Gas Valve – Enhances comfort with quieter, more economical performance
-
Multi-Speed ECM Circulator Motor – Adjusts airflow as needed for efficiency and quieter operation
-
SureStart® Silicon Nitride Igniter – Engineered for long life and reliable ignition
-
Self-Diagnostic Control Board – Continuously monitors system performance and simplifies service
-
Low Constant Fan Speed – Provides quiet continuous air circulation for comfort and air quality
-
Quiet, Two-Speed Induced Draft Blower – Reduces startup and operating noise
-
California Low NOx Compliant – Meets emissions requirements (except for SCAQMD & SJVAPCD regions)
-
AHRI Certified & ETL Listed – Assures verified performance, safety, and regulatory compliance
Cabinet Features
-
Fully Insulated Heavy-Gauge Steel Cabinet – Reduces heat loss and operating noise
-
Durable Baked-Enamel Finish – Corrosion-resistant for long-term protection
-
Multi-Position Installation Options:
-
GR9T80: Upflow, horizontal left or right
-
GD9T80: Downflow, horizontal left or right
-
Removable Bottom Panel – Allows for bottom- or side-return air applications
-
Left or Right Gas/Electric Service Connections – Simplifies flexible installation
-
Cabinet Air Leakage: ≤ 2%
-
Flush Fit with Most Coils – Designed to match up seamlessly with Goodman evaporator coils
This Goodman 2-stage gas furnace provides efficient, dependable performance with smart features and a versatile cabinet design, making it a perfect choice for new HVAC installations or upgrades in homes outside of restricted California districts.

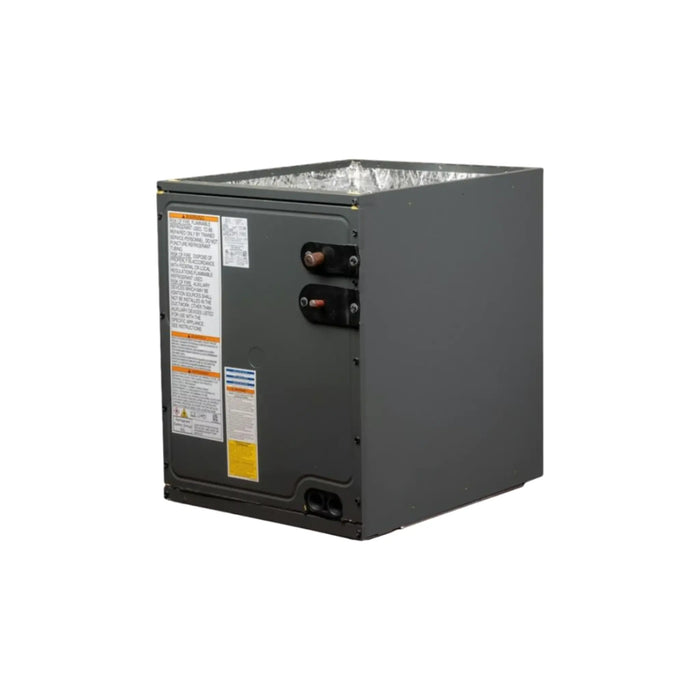

Goodman 3 Ton Cased Evaporator Coil Vertical 17.5"W with Built-in TXV R32 CAPTA3626B3
The Goodman CAPTA3626B3 3 Ton Cased Evaporator Coil is engineered for reliable performance, efficient refrigerant flow, and long-term durability. Built for compatibility with R32 refrigerant and featuring an internal TXV, this all-aluminum coil is ideal for both new installations and system replacements in residential or light commercial HVAC systems.
Part of the trusted Goodman CAPTA Series, this coil features a galvanized steel cabinet, versatile installation options, and advanced condensate management—all backed by Goodman’s 10-year parts warranty. Whether you're upgrading an aging system or installing new HVAC equipment, the CAPTA3626B3 offers the performance and efficiency you need.
Key Features
-
All-Aluminum Coil Construction – Designed with sine fins and grooved tubing to increase surface area for improved heat transfer and superior corrosion resistance.
-
Factory-Installed Internal TXV (Thermostatic Expansion Valve) – Enhances refrigerant metering under varying load conditions for better efficiency and system stability.
-
Upflow/Downflow Compatibility – Flexible configuration for both upflow and downflow installations, accommodating a wide variety of HVAC setups.
-
Durable, Galvanized Steel Cabinet – Embossed, insulated, and sealed cabinet construction improves energy efficiency and protects the coil during operation.
-
Advanced Condensate Management – Rust-resistant, DecaBDE-free thermoplastic drain pan with secondary drain connections and foil-faced insulation to minimize moisture issues.
-
R32 Refrigerant Ready – Fully compatible with eco-friendly R32 refrigerant, compliant with new Clean Air Act standards for environmental safety and energy efficiency.
-
Dual Factory Pressure Testing – Each coil undergoes rigorous pressure testing twice before shipping to ensure leak-free, high-quality performance.
-
10-Year Limited Parts Warranty – Includes a 10-year parts warranty with product registration and installation by a licensed HVAC contractor, ensuring long-term protection.
Why Choose Goodman?
Goodman is a trusted name in HVAC systems, known for delivering durable and cost-effective heating and cooling products across North America. With the CAPTA Series evaporator coils, you get consistent performance, low maintenance, and peace of mind—backed by one of the industry's strongest warranties. Choose Goodman for quality you can count on.
