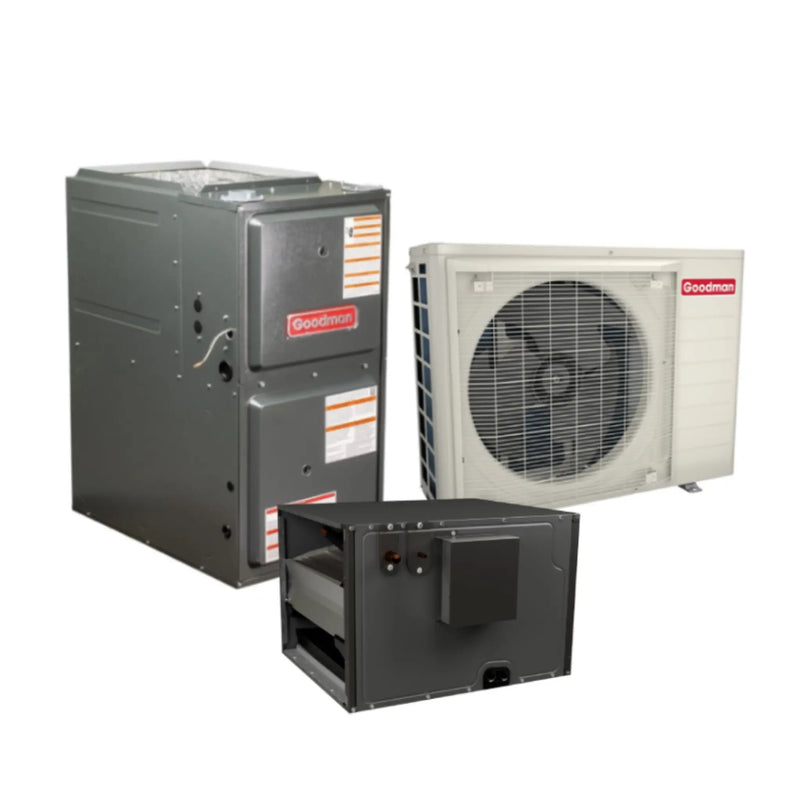

Goodman 4 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA4810
The Goodman GZV6SA4810 is a high-efficiency 4-ton side discharge heat pump condenser designed to deliver reliable comfort with advanced inverter technology. Utilizing an R-32 refrigerant system and a variable-speed inverter compressor, this unit provides precise capacity control, improved efficiency, and quiet operation. Built with a durable cabinet and engineered to meet the 2023 M1 Test Standards, it is an excellent solution for residential and light commercial HVAC applications.
Key Features
- Variable-Speed Inverter Compressor for Enhanced Energy Efficiency
- Quiet Digitally Commutated Fan Motor
- High-Density Compressor Sound Blanket for Reduced Noise
- Advanced Proprietary Control Algorithmic Logic
- Non-Communicating System Configuration
- Field-Selectable Boost Mode for High Load Conditions
- Diagnostic Indicator Lights with Fault Code Storage
- AHRI Certified and ETL Listed
- Meets 2023 M1 Test Standards
- Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Design
- Custom Ivory White Powder-Paint Finish
- High-Corrosion ZAM® Unpainted Steel Bottom Frame and Legs
- 500-Hour Salt Spray Tested for Long-Term Durability
- Wire Fan Discharge Grille
- Top and Side Maintenance Access Panels
- Meets 2023 Florida Building Code Wind Load Requirements When Properly Anchored
This 4-ton condenser is ideal for applications requiring compact side-discharge installation, quiet operation, and modern energy efficiency standards.
Goodman 96% 120K BTU Gas Furnace Variable Speed Upflow/Horizontal 24.5"W GRVT961205DN
The Goodman GRVT961205DN gas furnace is a high-performance unit designed for maximum comfort and efficiency. With a 96% AFUE rating, powerful 120,000 BTU input, two-stage gas valve, and variable-speed blower motor, this furnace delivers reliable heating while reducing utility costs. Built for flexibility, it supports both upflow and horizontal configurations, making it ideal for a wide range of home installations.
Key Features
- 120,000 BTU input / 115,320 BTU output – dependable heating power
- 96% AFUE efficiency – lowers energy costs and maximizes comfort
- Two-stage gas valve – adjusts heat levels to meet demand efficiently
- Variable-speed ECM blower motor – quiet, efficient airflow with optimized performance
- Condensing furnace – requires PVC/plastic flue venting
- Durable aluminized steel heat exchanger – engineered for longevity
- Silicon nitride ignitor – reliable ignition, more efficient than pilot lights
- Heavy-gauge, insulated cabinet – reduces air leakage and sound levels
- Self-diagnostic control board – continuous monitoring and troubleshooting support
- ComfortNet compatible – advanced communication, diagnostics, and system optimization
- Fuel flexibility – factory natural gas setup; LP conversion kit available (sold separately)
- Flexible installation – supports upflow and horizontal orientations
- Warranty: 10-year parts and lifetime heat exchanger warranty (with registration)
High Efficiency Performance
The GRVT961205DN achieves a 96% AFUE efficiency rating, meaning 96% of the fuel used is converted directly into heat for your home. This makes it a cost-effective choice for reducing long-term heating expenses.
Two-Stage Heating with Variable Speed Airflow
Equipped with a two-stage gas valve and variable-speed blower, this furnace adjusts to meet your heating demands. It maintains steady indoor comfort, reduces temperature fluctuations, and operates quietly compared to single-stage models.
Durable and Reliable Design
Built with a thermally insulated, heavy-gauge steel cabinet and aluminized steel heat exchanger, the GRVT961205DN ensures years of dependable performance. The silicon nitride ignitor provides long-lasting ignition reliability.
Advanced Diagnostics and Easy Maintenance
The integrated self-diagnostic control board monitors system performance continuously, providing error codes for quick troubleshooting. ComfortNet compatibility further enhances monitoring, maintenance alerts, and furnace optimization.
Warranty Protection
Goodman protects your investment with a 10-year parts warranty and a lifetime heat exchanger warranty (registration required). The GRVT961205DN offers efficiency, comfort, and peace of mind in one complete package.
Goodman 5 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet EEV R32 CHPEA6030D3
The Goodman CHPEA6030D3 is a 5-ton horizontal evaporator coil engineered for efficient cooling performance. It includes a factory-installed electronic expansion valve (EEV) for enhanced refrigerant control and is optimized for use with R-32 refrigerant. The 21-inch depth allows easier installation in tight attic spaces, and its durable cabinet construction ensures long-lasting performance. Ideal for residential or light commercial HVAC systems requiring horizontal airflow configurations.
Key Features
- Factory-Installed Electronic Expansion Valve (EEV) for Precise Refrigerant Control
- Optimized for Use with R-32 Refrigerant Systems
- Horizontal Airflow Configuration
- 21" Cabinet Depth for Easier Attic Access
- Galvanized Steel Cabinet with Leather-Grain Embossed Finish
- Foil-Faced Insulation Minimizes Condensation and Sound
- Single Front Access Panel for Simplified Maintenance
This coil is ideal for heat pump or air conditioner applications requiring horizontal orientation. Its design ensures reliable cooling performance and compatibility with advanced refrigerants like R-32.
