Product Details

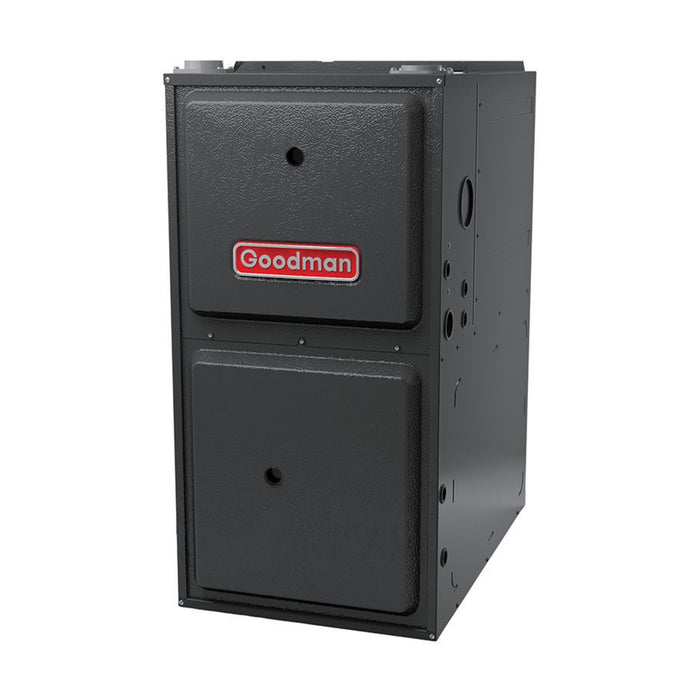

Goodman R32 96% AFUE 100K BTU Gas Furnace Two Stage 21"W Upflow/Horizontal

The Goodman Two-Stage R32 Gas Furnace GR9T961004CN offers 100,000 BTU and 96% AFUE efficiency, ensuring reliable, quiet, and economical heating. Featuring a multi-speed ECM blower motor, heavy-duty aluminized-steel heat exchanger, and a stainless-steel secondary heat exchanger, it maximizes heat transfer and performance. With a two-stage gas valve, Silicon Nitride igniter, and self-diagnostic control board, it provides efficient, long-lasting operation. This furnace offers flexible installation options, is Low NOx compliant, and is suitable for various venting configurations. Not compatible with certain California regions.

  • Unit Height: 34.5 in
  • Unit Width: 21 in
  • AFUE: 96 %
  • 100,000 BTU
  • 1600 CFM
  • Installation Configuration: Upflow/Horizontal
  • Max Overcurrent Protection: 25 A
  • Power Phase: 1 Ph
  • Power Voltage: 115 V
  • Motor Speed Type: Multi Speed ECM
  • Unit Weight: 140 lb
  • Model Efficiency: 0.96
  • Unit Depth: 28.75 in
  • Heat Exchanger Type: Air Cooled

Product Features For Goodman Two Stage R32 Gas Furnace GR9T961004CN

  • Energy-Efficient Multi-Speed ECM Blower Motor: Delivers optimal performance while saving energy.
  • Heavy-Duty Aluminized-Steel Tubular Heat Exchanger: Designed for long-lasting durability and efficient heat transfer.
  • Stainless-Steel Secondary Heat Exchanger: Enhances heat transfer for superior energy efficiency.
  • Two-Stage Gas Valve: Ensures quiet, economical heating with reliable operation.
  • Durable Silicon Nitride Igniter: Provides dependable ignition for enhanced system performance.
  • Quiet Two-Speed Induced Draft Blower: Reduces noise while ensuring smooth airflow.
  • Self-Diagnostic Control Board: Features constant memory fault code history and LED output for easier troubleshooting.
  • Color-Coded Low-Voltage Terminals: Simplifies installation of air cleaners and humidifiers.
  • Low Continuous Fan Speed Options: Quiet air circulation for a comfortable environment.
  • California 40 ng/J Low NOx Emissions Compliant: Meets California’s stringent emissions standards.
  • Not Compatible with SCAQMD & SJVAPCD Installations: Excluded from South Coast AQMD and San Joaquin Valley.
  • AHRI Certified & ETL Listed: Guarantees quality, safety, and energy efficiency.
  • Multi-Position Installation Flexibility:
    • GR9T96: Upflow, horizontal left or right
    • GD9T96: Downflow, horizontal left or right
  • Certified for Direct or Non-Direct Vent Configurations: Flexible venting options for versatile installations.
  • Easy-to-Install Top Venting with Optional Side Venting: Available for GR9T96/upflow models.
  • Left or Right Gas & Electrical Service Connections: Offers flexible installation for convenience.
  • Cabinet Air Leakage (QLeak) ≤ 2%: Maximizes energy efficiency by minimizing air leakage.
  • Heavy-Gauge Steel Cabinet with Durable Finish: Built to last with long-term protection and durability.
  • Fully Insulated Heat Exchanger & Blower Section: Improves heat retention and overall energy efficiency.
  • Airtight Solid Bottom or Side Return: Quick removal with easy-cut tabs for bottom air-inlet applications.

View More Furnaces

Specifications

Goodman R32 96% AFUE 100K BTU Gas Furnace Two Stage 21"W Upflow/Horizontal

Brand Goodman SKU GR9T961004CN
Type Gas Heat Category Gas Furnaces
Refrigerant Type R-32 AHRI Certificate Number 215225029
Airflow Direction Upflow/Horizontal Exhaust Flue Requirement Plastic / PVC
Product Features New Refrigerant Compliant Furnace Efficiency / AFUE 96%
Heating BTU Input 100,000 High Fire Output 96,000
Blower Motor 9 Speed - ECM Maximum CFM 1600
Horsepower 1 HP Configuration Upflow/Horizontal
Energy Star Yes Electrical 115 V. 1 Phase 60 Hz
Max Breaker Size 25 Amps Min. Breaker Size 14.4 Amps
Burner Stages Two Fuel Type Propane, Natural Gas
Height 34.5" Width 21"
Depth 28.75" No. of Burners 5
Vent Diameter 2" - 3" Filter Size (1) 16 x 25 (side or bottom)
Replaces GM9C961004CN UPC 633190210623
Warranty

Goodman R32 96% AFUE 100K BTU Gas Furnace Two Stage 21"W Upflow/Horizontal

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

Goodman R32 96% AFUE 100K BTU Gas Furnace Two Stage 21"W Upflow/Horizontal

GD9T96 GR9T96 Installation Manual

GD9T96 GR9T96 Specification Sheets

GD9T96 GR9T96 Parts Manual

GD9T96 GR9T96 Warranty Information
