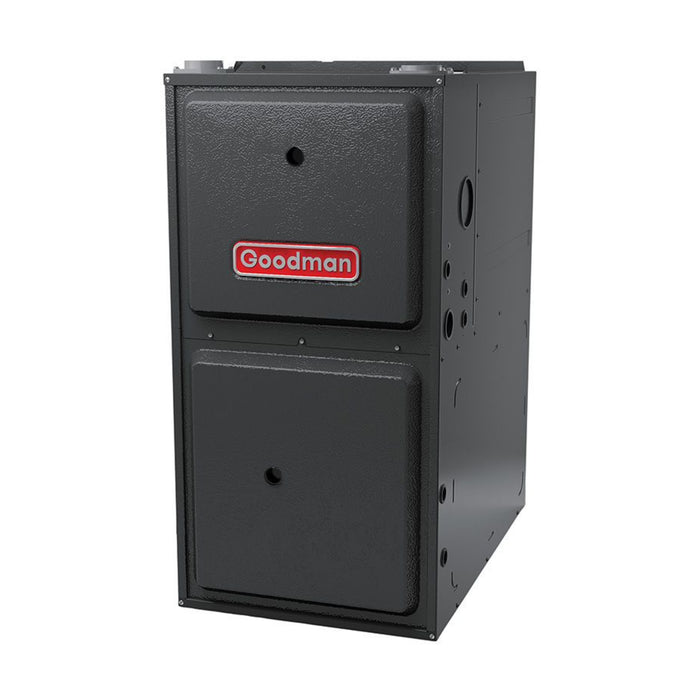

Goodman R32 96% AFUE 120K BTU Gas Furnace Two Stage 24.5" Upflow/Horizontal

Goodman R32 96% AFUE 120K BTU Gas Furnace Two Stage 24.5" Upflow/Horizontal

By Goodman | SKU: GR9T961205DN | ID: 100930
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$2,648.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Goodman R32 96% AFUE 120K BTU Gas Furnace Two Stage 24.5" Upflow/Horizontal

The Goodman Two-Stage R32 Gas Furnace SKU GR9T961205DN offers 120,000 BTU and 96% AFUE efficiency, ensuring reliable, quiet, and economical heating. Featuring a multi-speed ECM blower motor, heavy-duty aluminized-steel heat exchanger, and a stainless-steel secondary heat exchanger, it maximizes heat transfer and performance. With a two-stage gas valve, Silicon Nitride igniter, and self-diagnostic control board, it provides efficient, long-lasting operation. This furnace offers flexible installation options, is Low NOx compliant, and is suitable for various venting configurations. Not compatible with certain California regions.

  • Unit Height: 34.5 in
  • Unit Width: 24.5 in
  • AFUE: 96 %
  • 120,000 BTU
  • 2000 CFM
  • Installation Configuration: Upflow/Horizontal
  • Max Overcurrent Protection: 25 A
  • Power Phase: 1 Ph
  • Power Voltage: 115 V
  • Motor Speed Type: Multi Speed ECM
  • Unit Weight: 154 lb
  • Model Efficiency: 0.96
  • Unit Depth: 28.75 in
  • Heat Exchanger Type: Air Cooled

Product Features

  • Energy-Efficient Multi-Speed ECM Blower Motor: Provides optimal performance and energy savings.
  • Heavy-Duty Aluminized-Steel Tubular Heat Exchanger: Built for long-lasting durability and efficient heat transfer.
  • Stainless-Steel Secondary Heat Exchanger: Enhances heat transfer for superior comfort.
  • Two-Stage Gas Valve: Ensures quiet, economical heating with reliable operation.
  • Durable Silicon Nitride Igniter: Offers reliable ignition for long-term performance.
  • Quiet Two-Speed Induced Draft Blower: Reduces noise while maintaining efficient airflow.
  • Self-Diagnostic Control Board: Features constant memory fault code history and LED output for easy troubleshooting.
  • Color-Coded Low-Voltage Terminals: Simplifies installation of electronic air cleaners and humidifiers.
  • Low Continuous Fan Speed Options: Provides quiet air circulation for added comfort.
  • Complies with California's 40 ng/J Low NOx Emissions Standard: Meets stringent emissions regulations.
  • Not Compatible with SCAQMD & SJVAPCD Installations: Excluded from South Coast AQMD and San Joaquin Valley.
  • AHRI Certified & ETL Listed: Ensures quality, safety, and performance.
  • Multi-Position Installation Flexibility:
    • GR9T96: Upflow, horizontal left or right
    • GD9T96: Downflow, horizontal left or right
  • Certified for Direct Vent or Non-Direct Vent Configurations: Offers flexibility in venting options.
  • Easy-to-Install Top Venting: Optional side venting available for GR9T96/upflow models.
  • Convenient Left or Right Gas and Electrical Service Connections: Flexibility for various installation needs.
  • Cabinet Air Leakage (QLeak) ≤ 2%: Maximizes energy efficiency with minimal leakage.
  • Heavy-Gauge Steel Cabinet with Durable Finish: Built for long-term use and protection.
  • Fully Insulated Heat Exchanger and Blower Section: Retains heat better for improved efficiency.
  • Airtight Solid Bottom or Side Return: Features easy-cut tabs for quick removal in bottom air-inlet applications.

View More Furnaces

Specifications

Goodman R32 96% AFUE 120K BTU Gas Furnace Two Stage 24.5" Upflow/Horizontal

Brand Goodman SKU GR9T961205DN
AHRI Certificate Number 215225031 Airflow Direction Upflow/Horizontal
Exhaust Flue Requirement Plastic / PVC Product Features New Refrigerant Compliant
Furnace Efficiency / AFUE 96% Heating BTU Input 120,000
High Fire Output 115,200 Blower Motor 9 Speed - ECM
Maximum CFM 2000 Horsepower 1 HP
Configuration Upflow/Horizontal Energy Star Yes
Electrical 115 V. 1 Phase 60 Hz Max Breaker Size 25 Amps
Min. Breaker Size 14.4 Amps Burner Stages Two
Fuel Type Propane, Natural Gas Height 34.5"
Width 24.5" Depth 28.75"
No. of Burners 5 Vent Diameter 2" - 3"
Filter Size (1) 20 x 25 (bottom) or (2) 16 x 25 (side) bottom Shipping Weight 154
UPC 633190210647 Replaces GM9C961205DN
Warranty

Goodman R32 96% AFUE 120K BTU Gas Furnace Two Stage 24.5" Upflow/Horizontal

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

Goodman R32 96% AFUE 120K BTU Gas Furnace Two Stage 24.5" Upflow/Horizontal

GD9T96 GR9T96 Installation Manual

GD9T96 GR9T96 Specification Sheets

GD9T96 GR9T96 Parts Manual

GD9T96 GR9T96 Warranty Information
