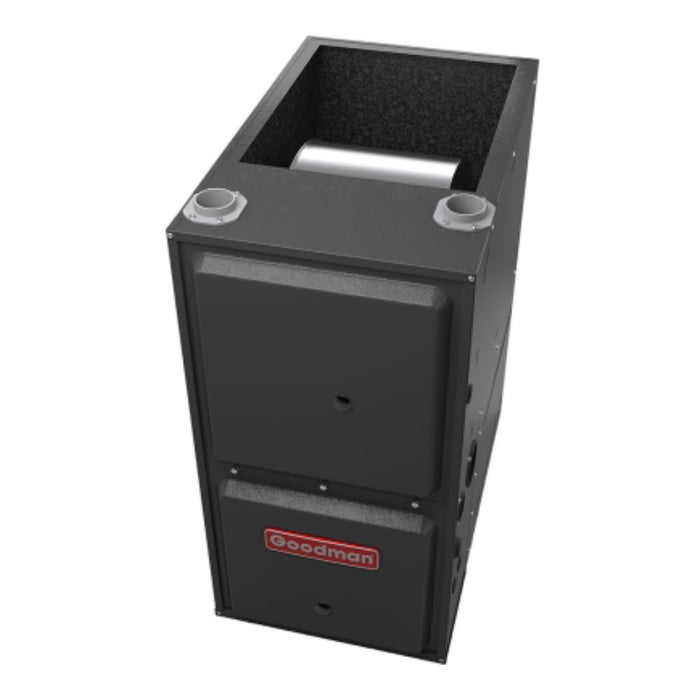

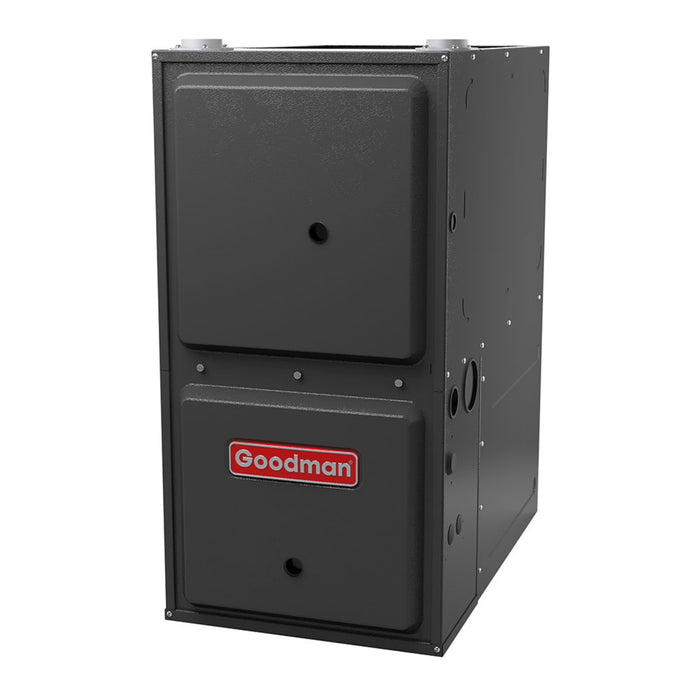

Goodman R32 96% AFUE Gas Furnace 60000 BTU Nine-Speed Downflow/Horizontal
PROPOSITION 65 WARNING

Some products sold on our site, including this one, may contain substances recognized by the State of California to cause cancer, birth defects, or other reproductive harm. For details on Proposition 65, visit this page.

Goodman R32 96% AFUE Gas Furnace 60000 BTU Nine-Speed Downflow/Horizontal

By Goodman | SKU: GD9S960603BN | ID: 100914
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,851.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Goodman R32 96% AFUE Gas Furnace 60000 BTU Nine-Speed Downflow/Horizontal

This highly efficient Goodman gas furnace offers 60,000 BTU of heating power with a 96% AFUE rating, providing excellent energy savings. Designed for downflow or horizontal installations, it features a durable aluminized-steel tubular heat exchanger and a stainless-steel secondary heat exchanger for enhanced efficiency. The multi-speed ECM motor ensures quiet, reliable performance, while the silicon nitride igniter boosts longevity. It comes with a self-diagnostic control board and is compliant with California’s Low NOx emissions standard, offering flexible venting options for installation. Not suitable for certain California regions.

  • Unit Height: 34.5  in
  • Unit Width: 17.5 in
  • AFUE: 96 %
  • 60,000 BTU
  • R32
  • Installation Configuration: Downflow/Horizontal
  • Max Overcurrent Protection: 15 A
  • Power Phase: 1 Ph
  • Power Voltage: 115 V
  • Motor Speed Type: Multi Speed ECM
  • Unit Weight: 116 lb
  • Model Efficiency: 0.96
  • Unit Depth: 28 in
  • Heat Exchanger Type: Air Cooled

Product Features For Goodman Highly Efficient 96% AFUE Gas Furnace

    • Heavy-Duty Aluminized-Steel Tubular Heat Exchanger: Durable and long-lasting for optimal heat transfer.
    • Stainless-Steel Secondary Heat Exchanger: Improves system efficiency.
    • Single-Stage Gas Valve: Ensures reliable operation.
    • Durable Silicon Nitride Igniter: Long-lasting and dependable ignition.
    • Quiet, Single-Speed Induced Draft Blower: Minimizes operational noise.
    • Self-Diagnostic Control Board: Features LED fault code display and constant memory history for troubleshooting.
    • Low NOx Compliance: Meets California’s 40 ng/J Low NOx emissions standard.
    • Non-Compatible with South Coast AQMD & San Joaquin Valley APCD: Not suitable for installation in these areas.

    Certifications

    • AHRI Certified and ETL Listed: Ensures product quality.

    Installation Flexibility

    • Multi-Position Installation:
      • GR9S96: Upflow, horizontal left, or right.
      • GD9S96: Downflow, horizontal left, or right.
    • Vent Configuration: Certified for direct vent (2-pipe) or non-direct vent (1-pipe).
    • Installation Convenience: Easy top venting with optional side venting for GR9S96/upflow models.
    • Gas & Electrical Service: Left or right connections for flexibility.

    Cabinet Features

    • Energy Efficiency: Cabinet air leakage (QLeak) ≤ 2%.
    • Heavy-Gauge Steel Cabinet: Durable and long-lasting.
    • Fully Insulated Heat Exchanger & Blower: Improved performance and heat retention.
    • Airtight Solid Bottom or Side Return: Easy-cut tabs for bottom air inlet applications.

    Goodman R32 96% AFUE Gas Furnace 60000 BTU Nine-Speed Downflow/Horizontal

    Brand Goodman SKU GD9S960603BN
    Type Gas Heat Category Gas Furnaces
    Refrigerant Type R-32 AHRI Certificate Number 215224959
    Airflow Direction Downflow/Horizontal Exhaust Flue Requirement Plastic / PVC
    Product Features New Refrigerant Compliant Furnace Efficiency / AFUE 96%
    Heating BTU 60,000 High Fire Output 57,660
    Blower Motor 9 Speed - ECM Maximum CFM 1200
    Horsepower 1/2 HP Configuration Downflow/Horizontal
    Energy Star Yes Electrical 115 V. 1 Phase 60 Hz
    Max Breaker Size 15 Amps Min. Breaker Size 10.1 Amps
    Burner Stages Single Fuel Type Propane, Natural Gas
    Height 34.5" Width 17.5"
    Depth 28.75" Filter Size (2) 10 x 20 or (1) 16 x 25 (top return)
    No. of Burners 3 Vent Diameter 2"-3"
    Replaces GC9S960603BN

    Goodman R32 96% AFUE Gas Furnace 60000 BTU Nine-Speed Downflow/Horizontal

    Warranty Type Residential Multi-Family Commercial
    Standard Warranty 5 year parts 5 year parts 5 year parts
    Registered Warranty 10 year parts 10 year parts 5 year parts

    Goodman R32 96% AFUE Gas Furnace 60000 BTU Nine-Speed Downflow/Horizontal

    GR9S96 GD9S96 Installation Manual

    GR9S96 GD9S96 Specification Sheets

    GR9S96 GD9S96 Parts Manual

    GR9S96 GD9S96 Warranty Information
